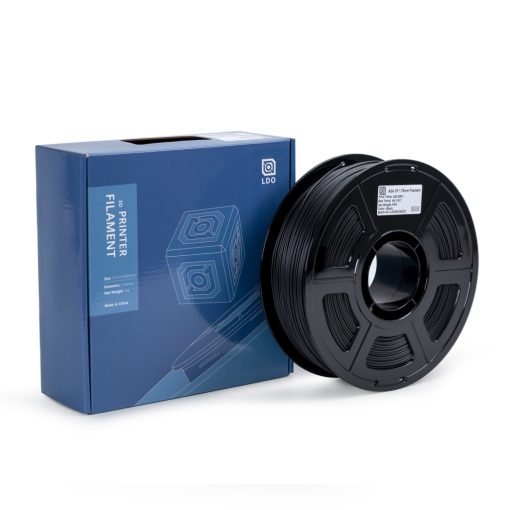

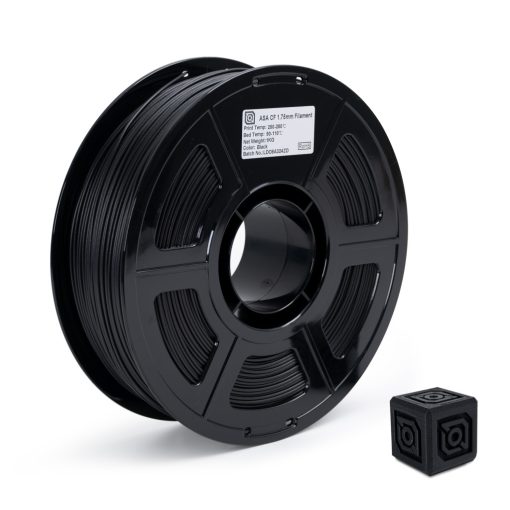

ASA Carbon Fiber is an engineering plastic, composed of a graft of acrylic rubber, acrylonitrile, and styrene copolymer, with added carbon fiber reinforcement. In addition to ASA’s excellent mechanical and physical properties, it also has superior anti-ultraviolet (UV) capabilities, making it ideal for outdoor plastic products exposed to direct sunlight. In certain applications, ASA's anti-UV properties prevent fading and yellowing. It resists degradation caused by UV radiation, high temperatures, and oxidation in the atmosphere. This greatly enhances the material's anti-aging and weather resistance. According to test results, ASA's anti-aging performance is over 10 times better than that of ABS.
Features:
- Excellent mechanical and physical properties
- Superior weather resistance
- High rigidity
- Strong heat resistance
- Good chemical resistance
Property:
- Density: 1.1g/cm3
- Tensile strength: 78 MPa
- Impact strength: 13 KJ/m2
- Melt flow index: 18g/10min (220°C,10Kg)
- Melting Point: 215°C
- Carbon Fiber Content Rate: 15%
- Filament diameter: 1.75±0.03mm
- Filament weight on the spool: 1 kg
- Print temp: 260°C
- Bed temp: 80-110°C
Datasheet:
LDO_ASA-CF_Datasheet_RevA.pdf
