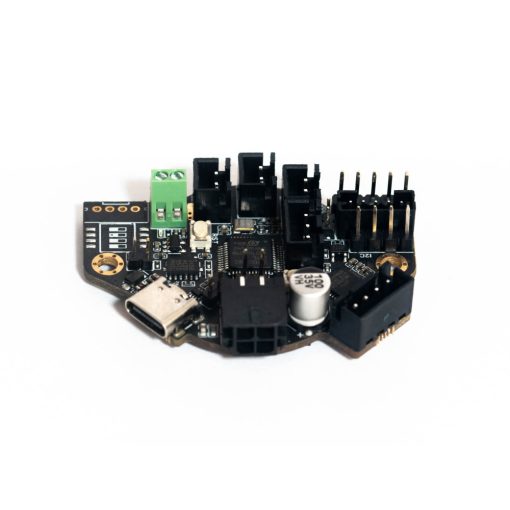

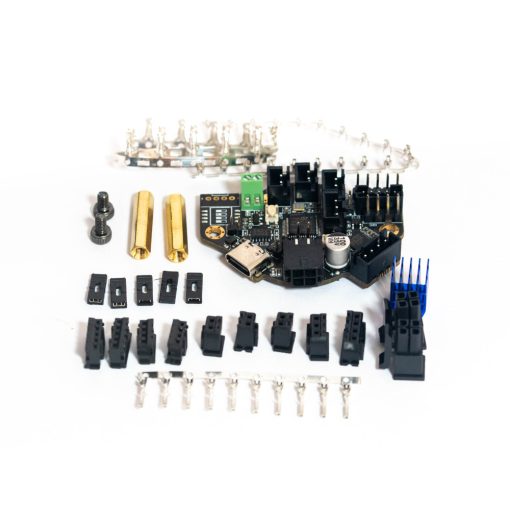

BTT EBB36 V1.2.1 CAN Board (no Max31865)

Bigtreetech Can Bus Toolhead Board: BTT EBB36 V1.2.1 CAN Board (no Max31865)

This version does not include a PT100/PT1000 amplifier.

• Processor:ARM Cortex-M0+ STM32G0B1CBT6 64MHz
• Input voltage:DC 12V – DC 24V 6A
• Logic voltage:DC 3.3V
• Maximum output current of heating wire: interface:5A
• Built-inADXL345
• Fans:2 CNC fans (FAN0, FAN1)(1A, peak value 1.5A)
• Interfaces:EndStop, I2C, Probe, RGB, USB interface, CAN interface
• Motor drive: built-inTMC2209UART
• Temperature sensor interface:1 channel 100K NTC or PT1000 (TH0)
• USB-Type-C
• DC 5V maximum output current:1A

• github.com/EricZimmerman/VoronTools/EBB_CAN.md
• github.com/bigtreetech/EBB
• github.com/rlaferla/Voron/blob/main/CAN_Bus_Guide.md
