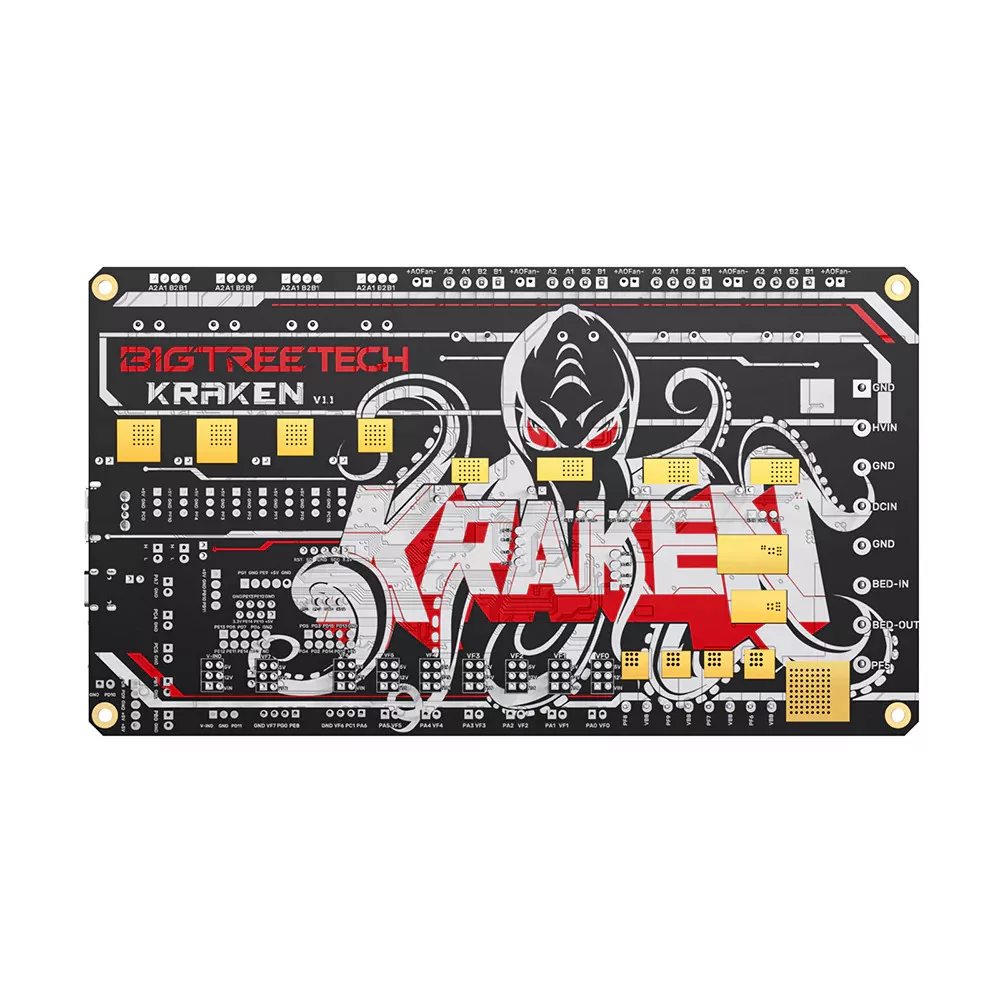

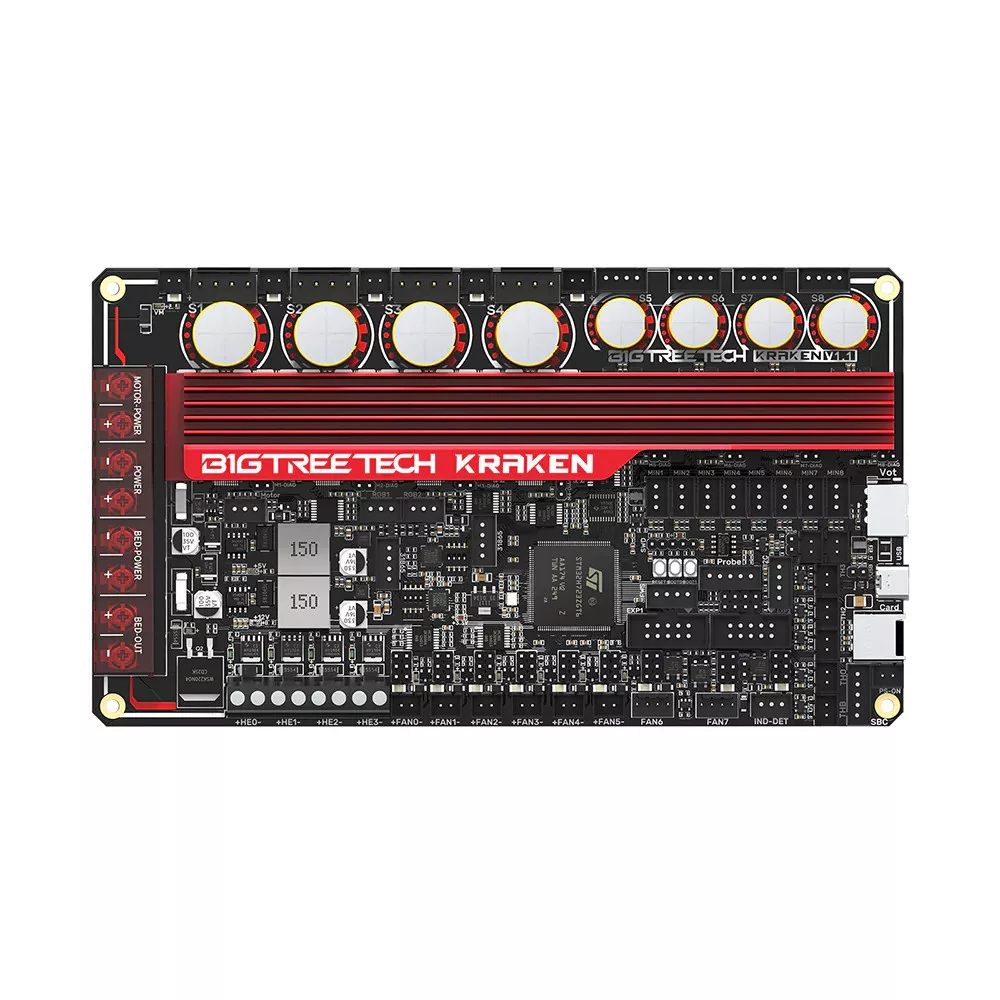

    BTT Kraken V1.0

    Out of stock
    BTT Kraken V1.0
    BTT Kraken V1.0
    BTT Kraken V1.0
    BTT Kraken V1.0
    BTT Kraken V1.0
    Out of stock
    • MCU: ARM Cortex-M7 STM32H723ZGT6 550MHz

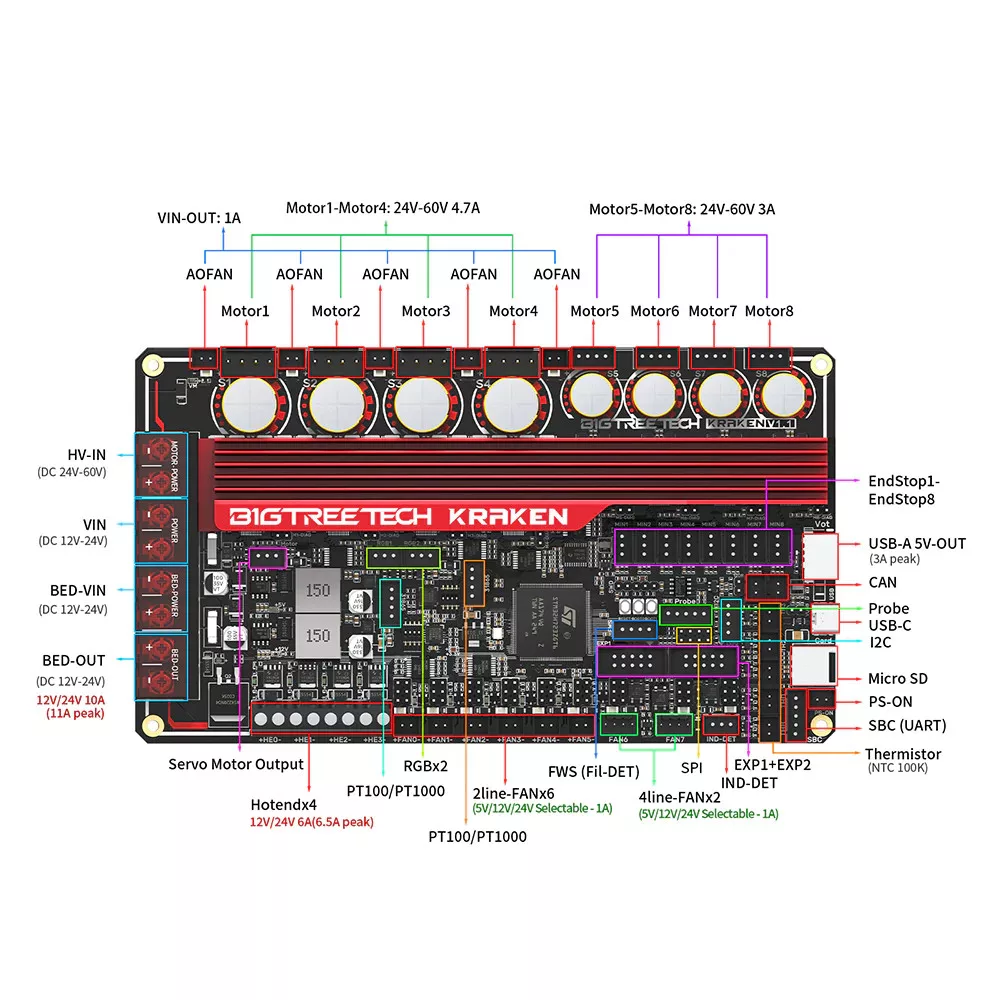

    • Expansion Interfaces: Probe(Servos, Probe), Servo, Filament Sensor, PS-ON, I²C. RGBx2, SPI, SBC (UART), EXP1+EXP2, CANx2, PT100/PT1000x2, USB-A 5V Power, Endstop Portx8,etc.
    • Driver Input Voltage: HV (24-60V)

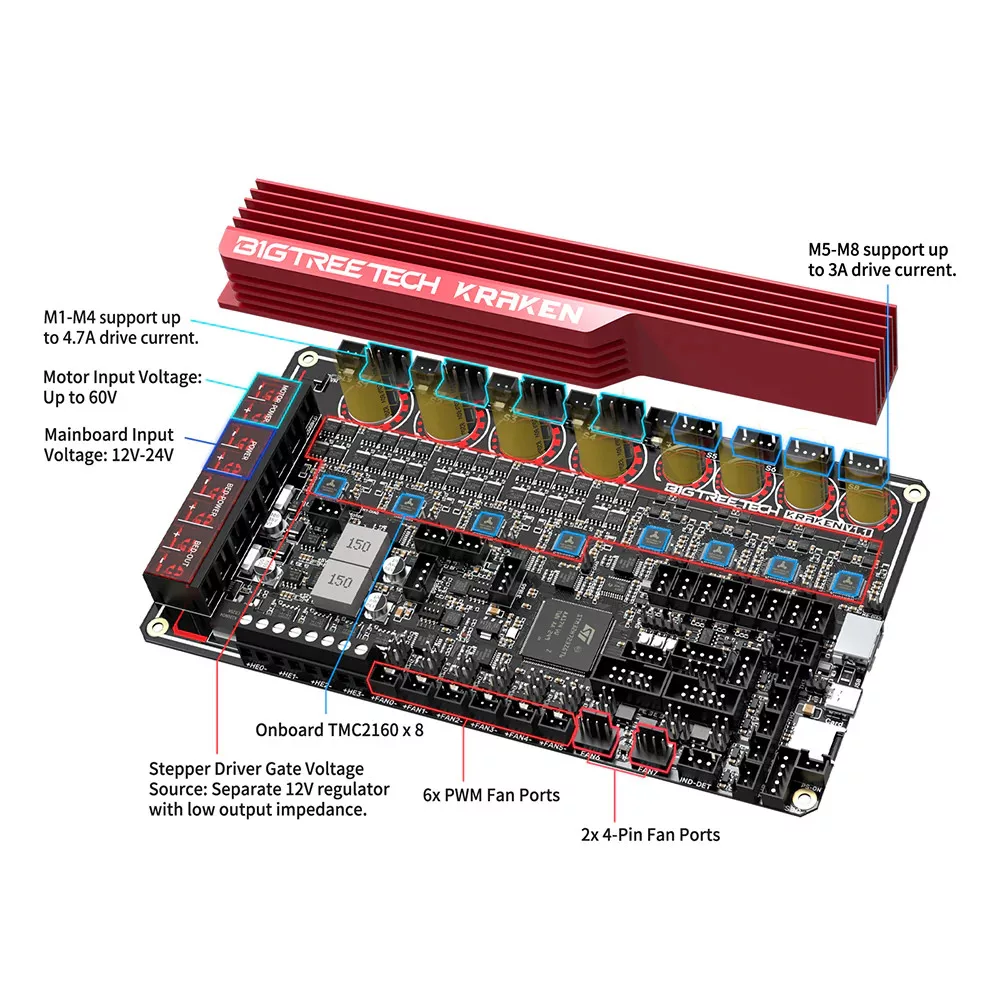

    • Motor Drivers: Onboard TMC2160 SPI, support 24-60V, Max 8A driving current for M1-M4, Max 3A for M5-M8
    • Input Voltage: DC12V or DC24V
    • Temp Sensor Interfaces: 5x 100K NTC, 2x MAX31865
    • Max Heated Bed Output Current: 10A, peak 11A
    • Fan Interfaces: 6x 2-pin CNC Fans (FANO, FAN1, FAN2, FAN3, FAN4, FAN5) 2x 4-pin CNC Fans (FAN6, FAN7), 5x Always-On Fan, CNC Fans Voltage (5V, 12V, 24V) Selectable
    • Compatibility: Voron PHOENIX,Voron 2.4,Voron Trident,Vzbot,etc.
    109.29 €
    Out of stock
