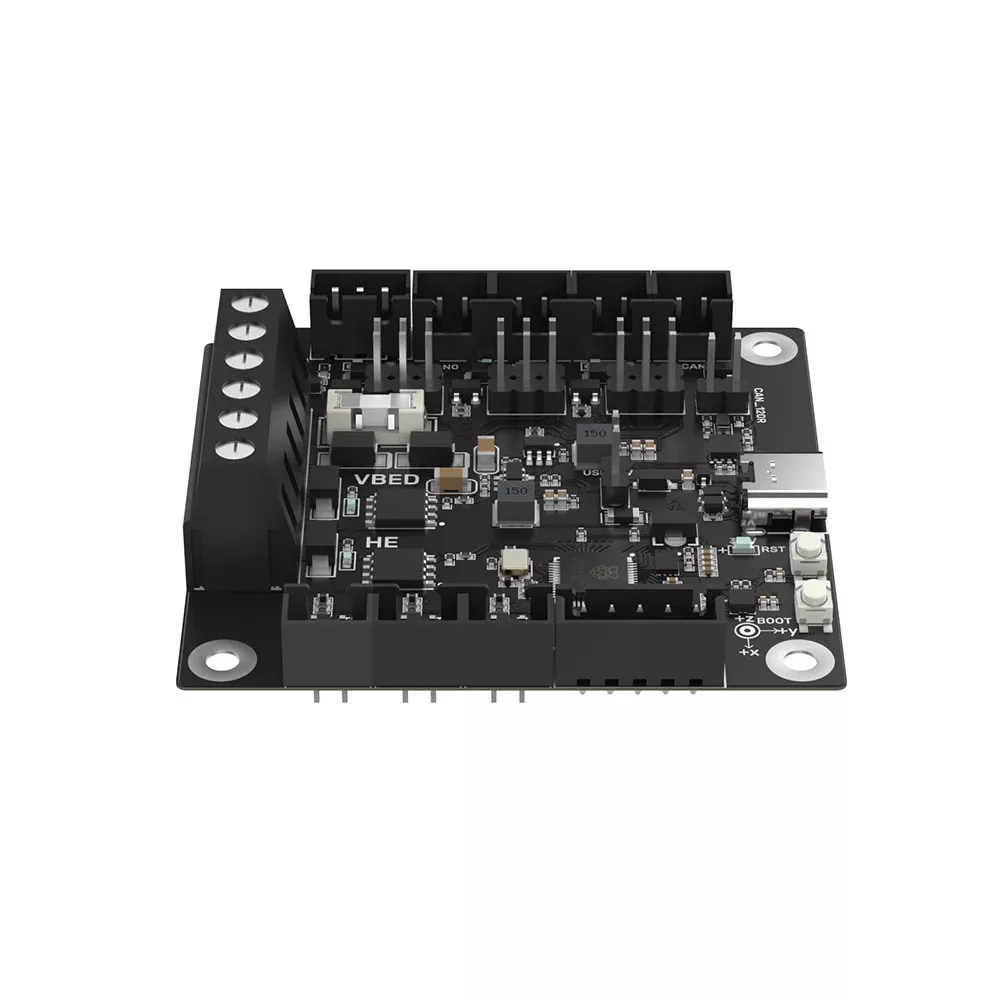

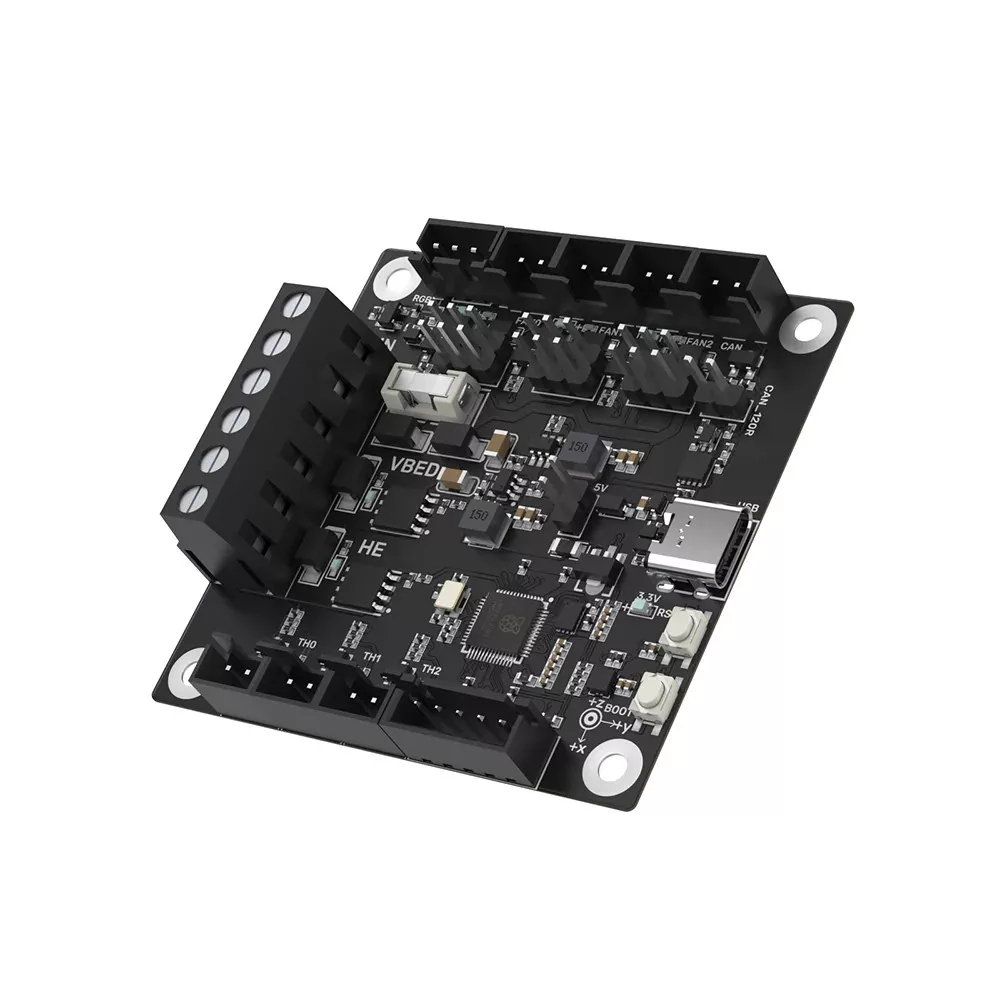

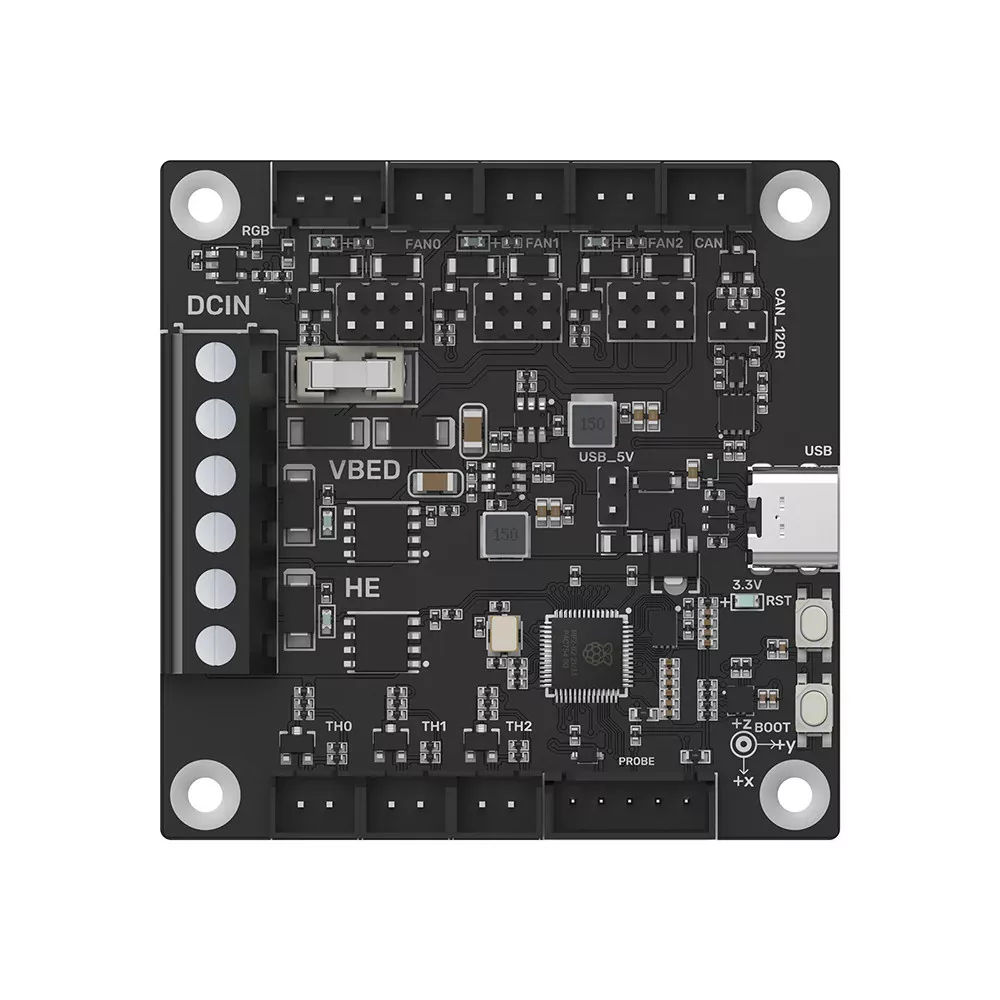

The BIGTREETECH MMB Cubic is the ideal solution for fitting additional interfaces onto your Klipper control board, allowing you to connect more fans, hotends, sensors, etc., effortlessly.
- Dimensions: 60mm x 60mm
- MCU: ARM Cortex-M0+ RP2040 133 MHz
- Mainboard Input Voltage: DC24V-36V
- Heated Bed Input Voltage: VBED DCIN
- Logic Voltage: DC3.3V
- Heating Interface: Heated Bed (VBED), Heater Cartridge (HE)
- Max Heated Bed Output Current: 10A
- Heater Cartridge Port Power: 120W（24V 5A）
- Fan Interfaces: 3x 2-pin PWM Fans (FAN0, FAN1, FAN2)
- Max Fan Output Current: Total: 1A, Peak 1.5A
- Total Current for Heater Cartridge + Fans: Maximum 10A
- Mainboard Max 5V Output Current: Peak 1.5A
- Mainboard Max 12V Output Current: Peak 1.5A

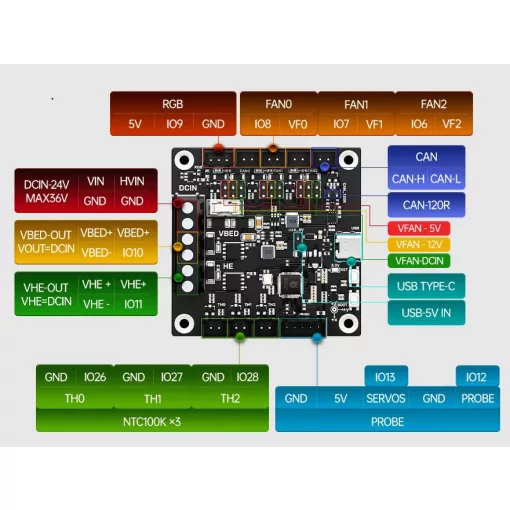

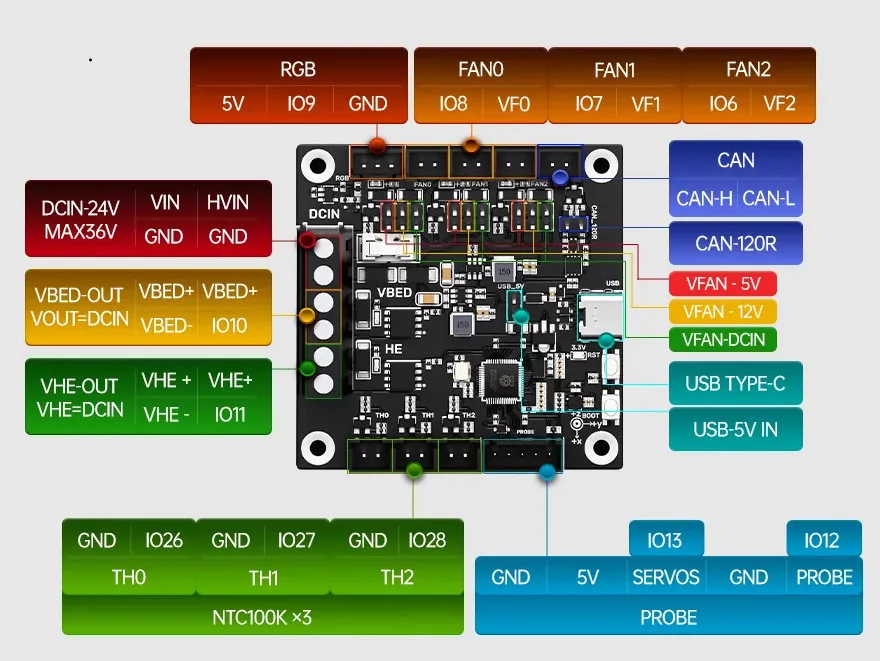

- Expansion Interfaces: Probe (Servos, Probe), RGB, CAN, TH x3 (NTC100K)
github.com/bigtreetech/MMB-Cubic
