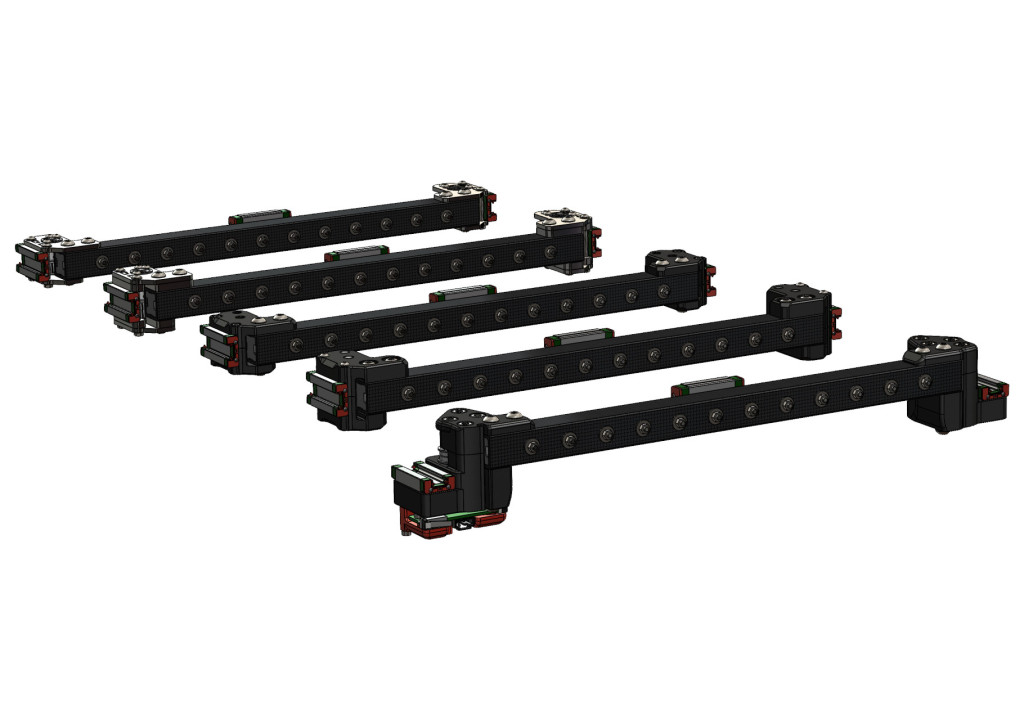

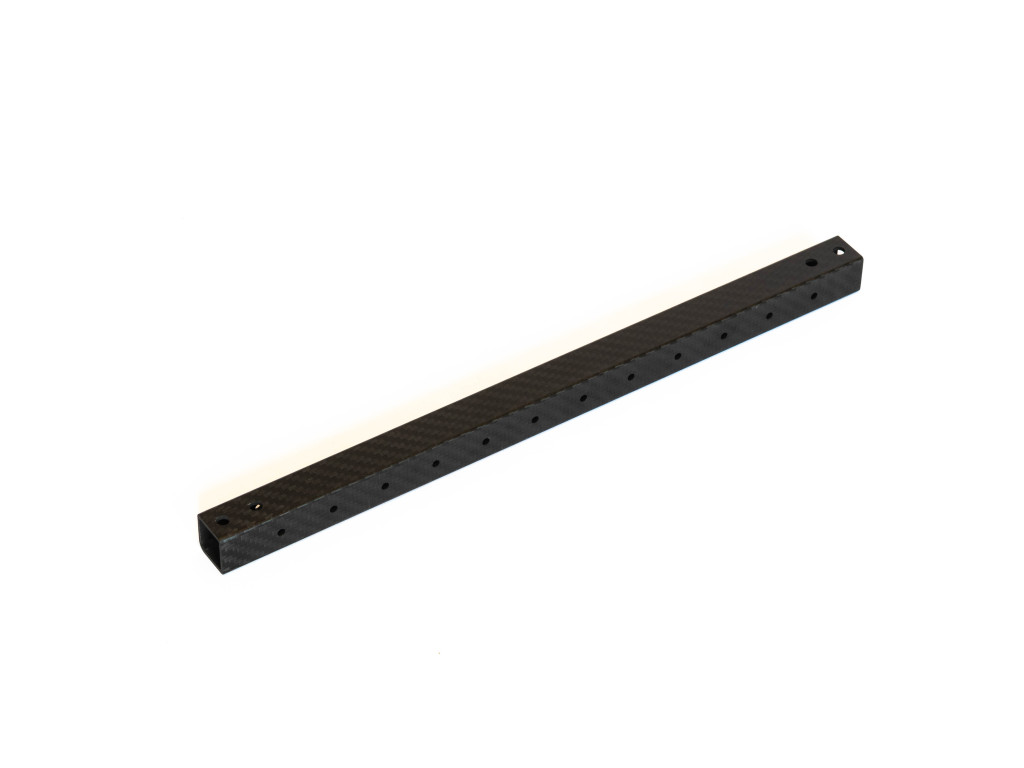

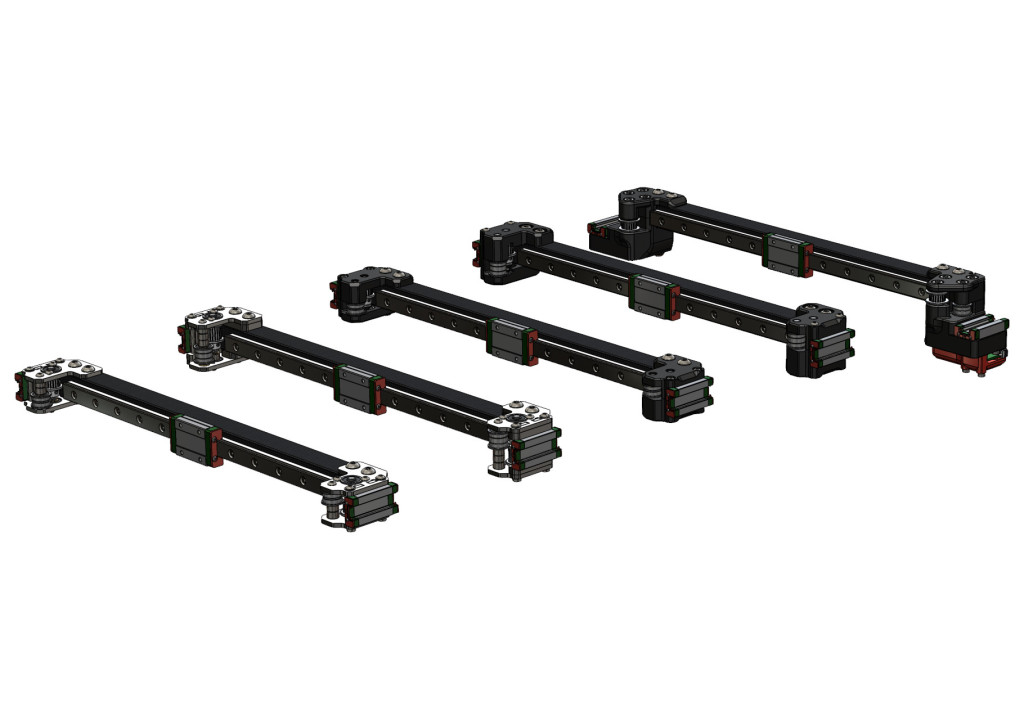

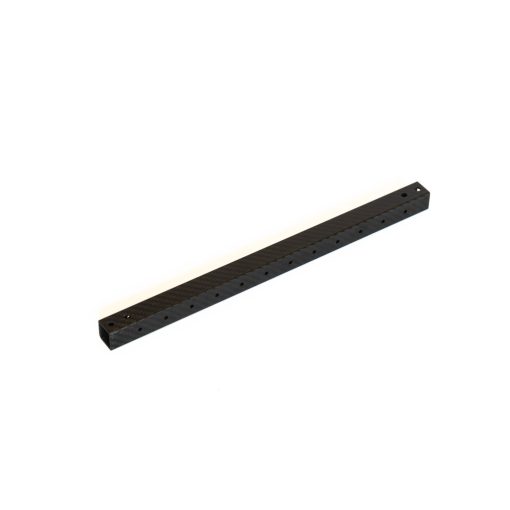

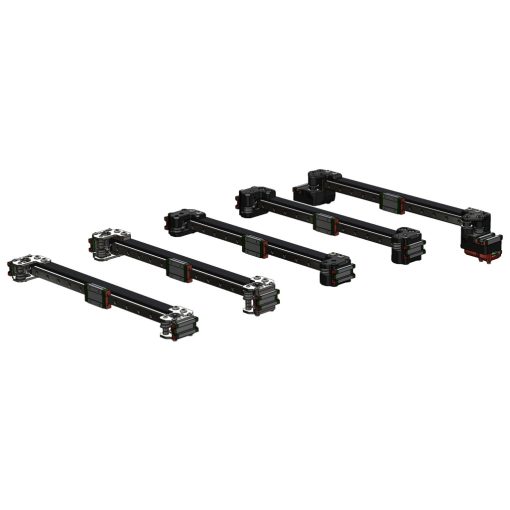

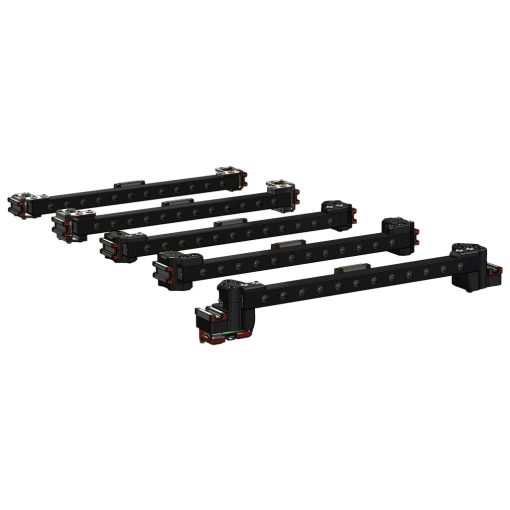

Carbonara is a high-endurance, high-quality carbon fiber X beam for Voron and Monolith 3D printers using the stock build sizes of 250,300, and 350.
- Length: 330mm
- Weight: 64.7g (2020 extrusion weight: 157.1g)
- Bed size: 250mm
- Rail mounting holes: 12pcs
The product includes only the Carbon Fiber Tube – screws and printed parts are not included! Scroll down to the bottom of the page to find recommended accessory hardware.
Key features:
- Pre-drilled, easy installation
- High torsion resistance
- Made with high temperature resin. 110°C short term temperature resistance, good for 90°C chamber.
- Ultra light, up to 58% weight reduction from a standard 2020 aluminium extrusion (before hardware and inserts).
- Smooth 3K carbon strand finish.
- Tested for 800 hours at very high speeds, 500-1300mm/s @ 50.000-100.000m/s² and a 80°c chamber.
Important information:
The printed inserts are a MUST to ensure maximum performance. Please make sure they are all aligned and facing the same direction.Hollow spacers aren't mandatory, they are only used to facilitate installation.

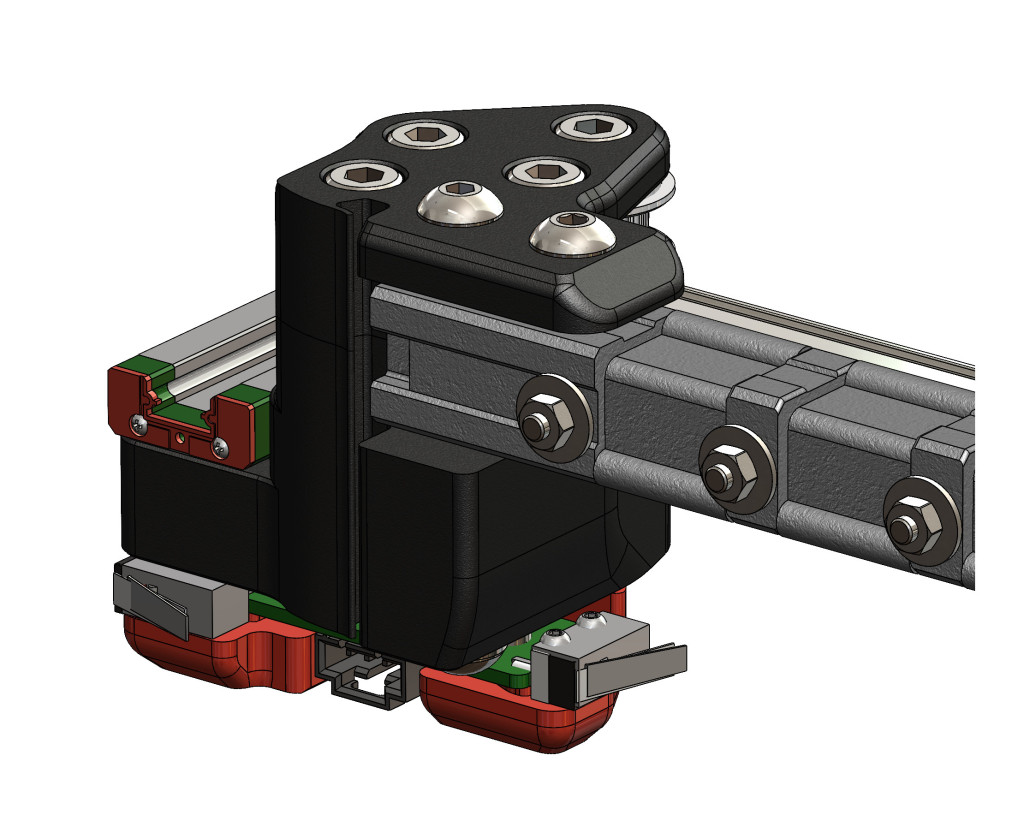

For a stock Voron gantry new printed XY-joints are needed that don't have the small tab that aligns with the slot in a regular extrusion.
STLs for the inserts and Voron XY-joints can be found:
www.printables.com/model/1327701-carbonara-lightweight-cf-tube.
BOM for the inserts and mounting can be found >> here <<.
This project has been made in collaboration with the Monolith team
Special thanks to
Brazuka: Ko-Fi
Making the tube and managing the project.
Adeo: Ko-Fi, GitHub
For the amazing temperature and torsion testing.
(can be found in the Monolith discord)
CloakedWayne: Ko-Fi, GitHub
For the incredible mounting inserts.
