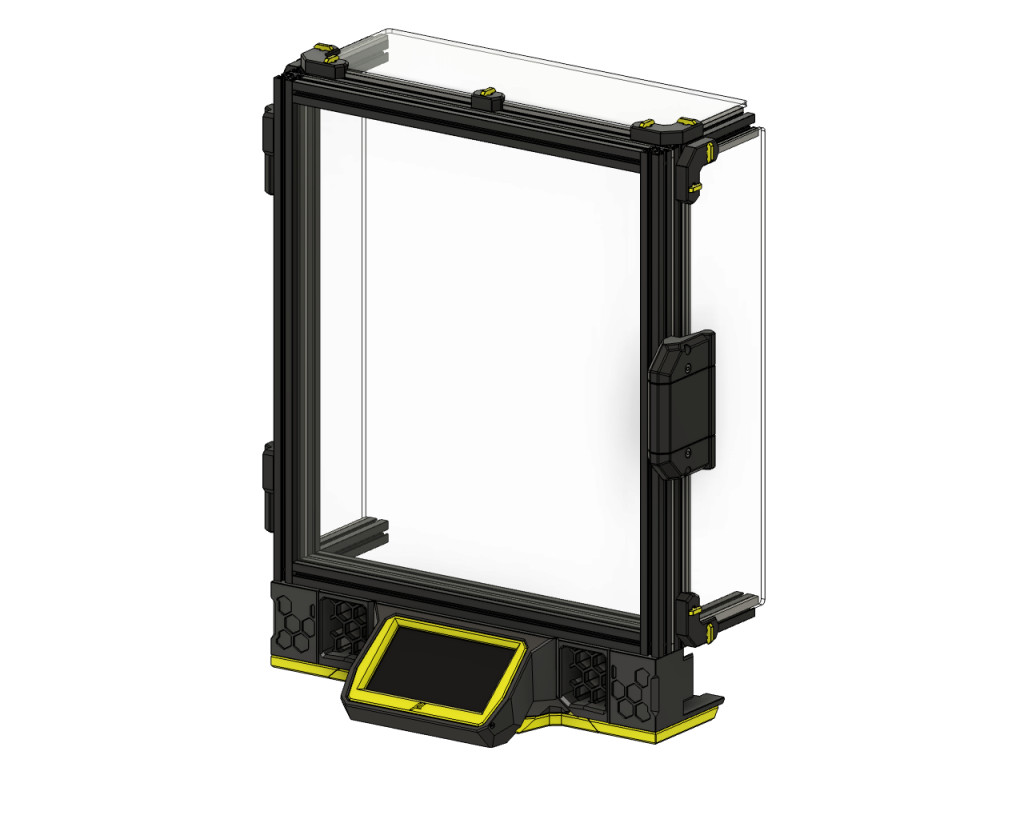

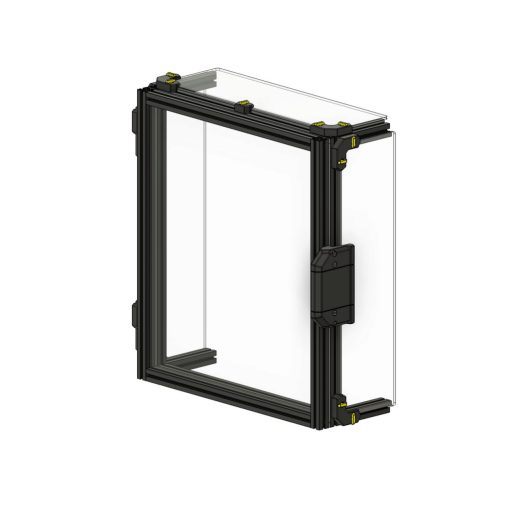

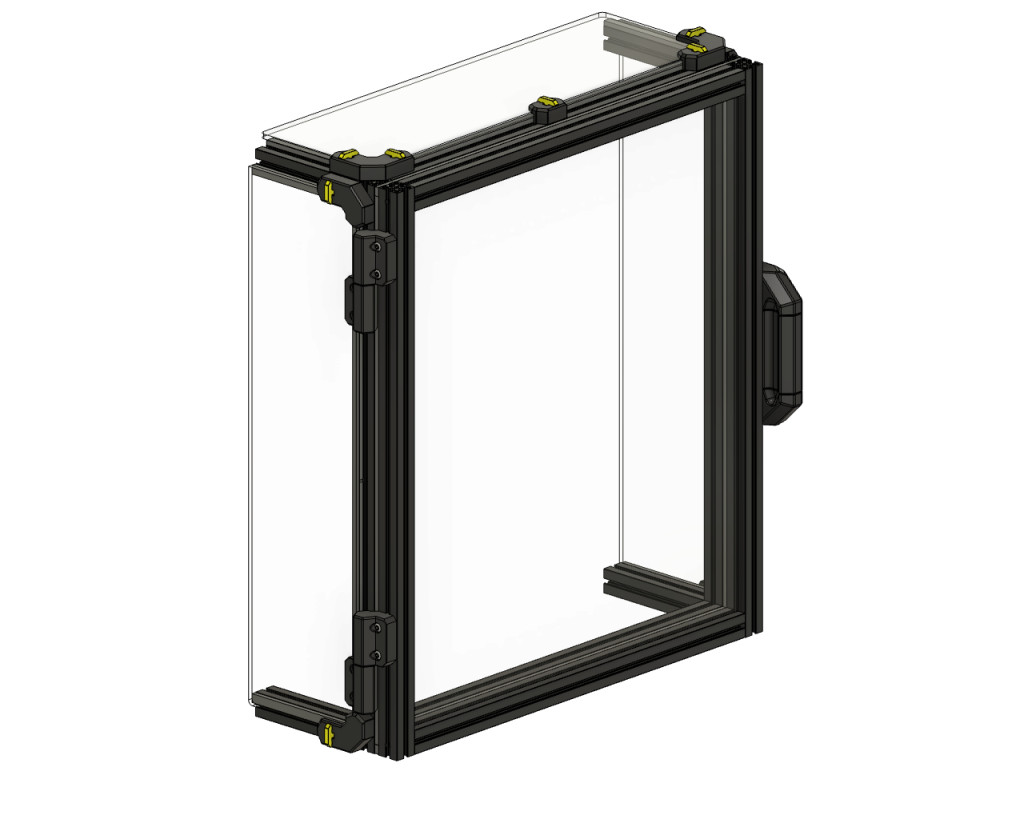

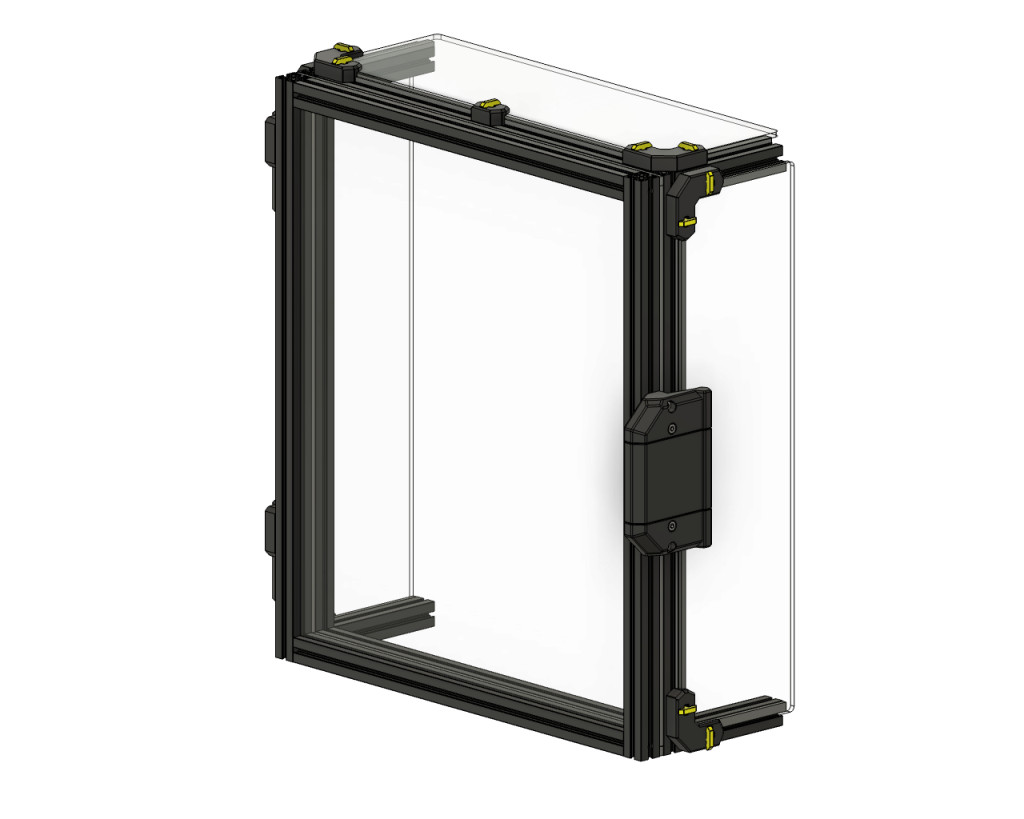

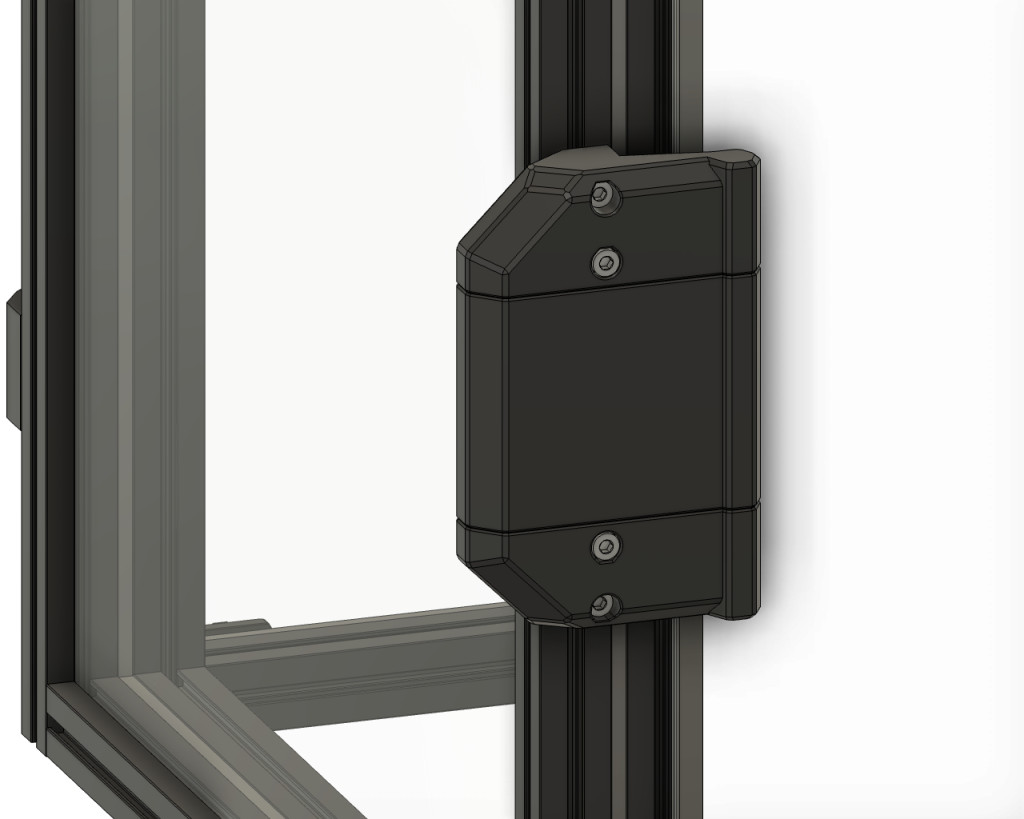

The Colony Clacker door, designed to fit 1515 profiles, is based on the popular Clicky-Clack Fridge Door. The kit assembled by LDO includes the necessary parts for the Micron+ size.
The set includes:
- 4pcs M3x12 BHCS (+4pcs M3x8 BHCS)
- 10pcs M3x12 BHCS
- 4pcs M3x16 SHCS
- 2pcs M3x20 SHCS
- 14pcs M3 Hex Nut
- 4pcs M5 x 7mm x 8mm Split Bushing
- 4pcs 5mm x 40mm Dowel Pin
- 8pcs 6mm x 3mm N52 Magnet
- 1.3M 3mm Foam Tape
Acrylic panel is not included, but you can reuse the original one. The extrusions are black.
GitHub: github.com/PrintersForAnts/ColonyClacker
