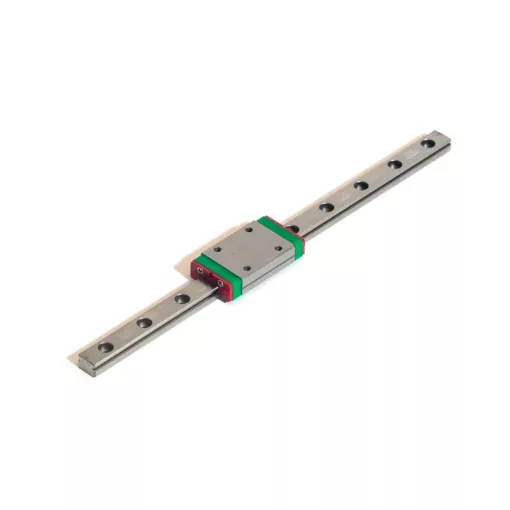

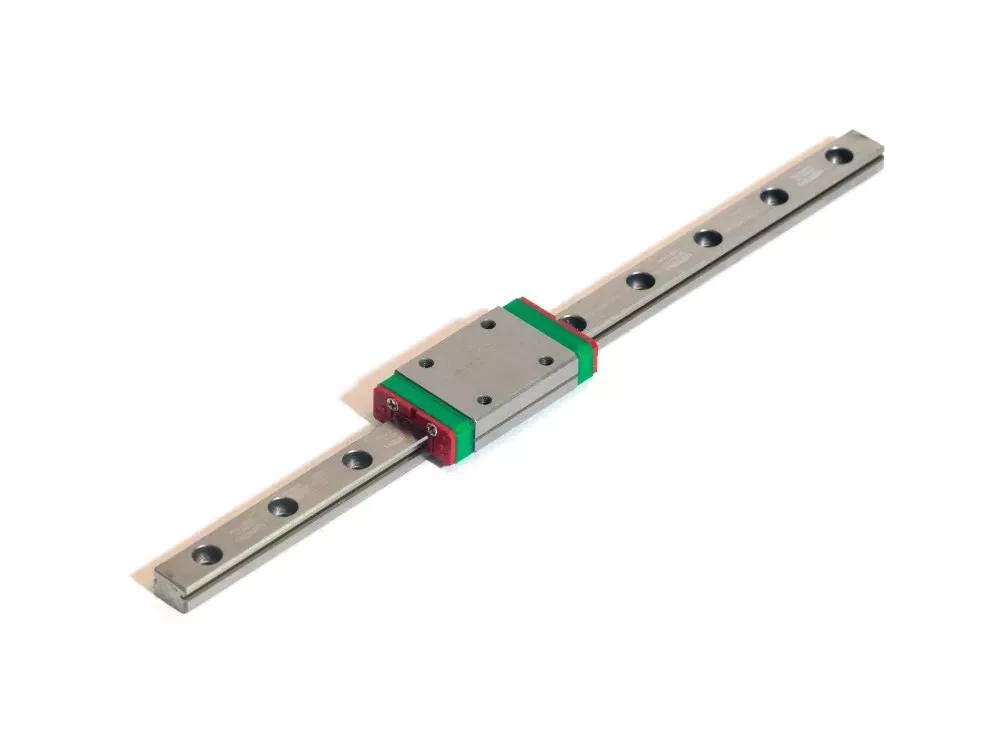

150mm long 7mm wide pre-loaded HIWIN linear rail with carriage for Voron V0 3D printer X axis. This rail can be found in the LDO V0.2-S1 kits, offering greater precision and tighter tolerances than LDO's own rails, you can achieve a really nice Input Shaper graph with it.
- Part number: HIWIN MGN7H-1R-150Z1
- Preload: Z1 (light preload)
- Dynamic Load Capacity (C): 1.37 kN
- Static Load Capacity (C₀): 1.96 kN
HIWIN is a globally recognized manufacturer specializing in precision linear motion solutions, including ball screws, linear guides, and intelligent automation systems, known for delivering outstanding accuracy and reliability across various industries.
Notes:
- Before first use, clean it from the factory oil and grease it with some lithium-based grease, for example, Mobilux EP 2. Get the lubricant to the balls inside the carriage, you can do this from the back without removing the carriage. Finally, wipe the rail dry so it doesn't collect dust.
- If possible, do not remove the carriage, and never disassemble the carriage!
