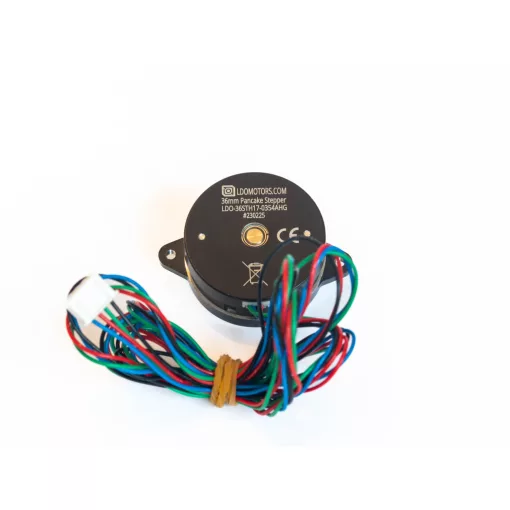

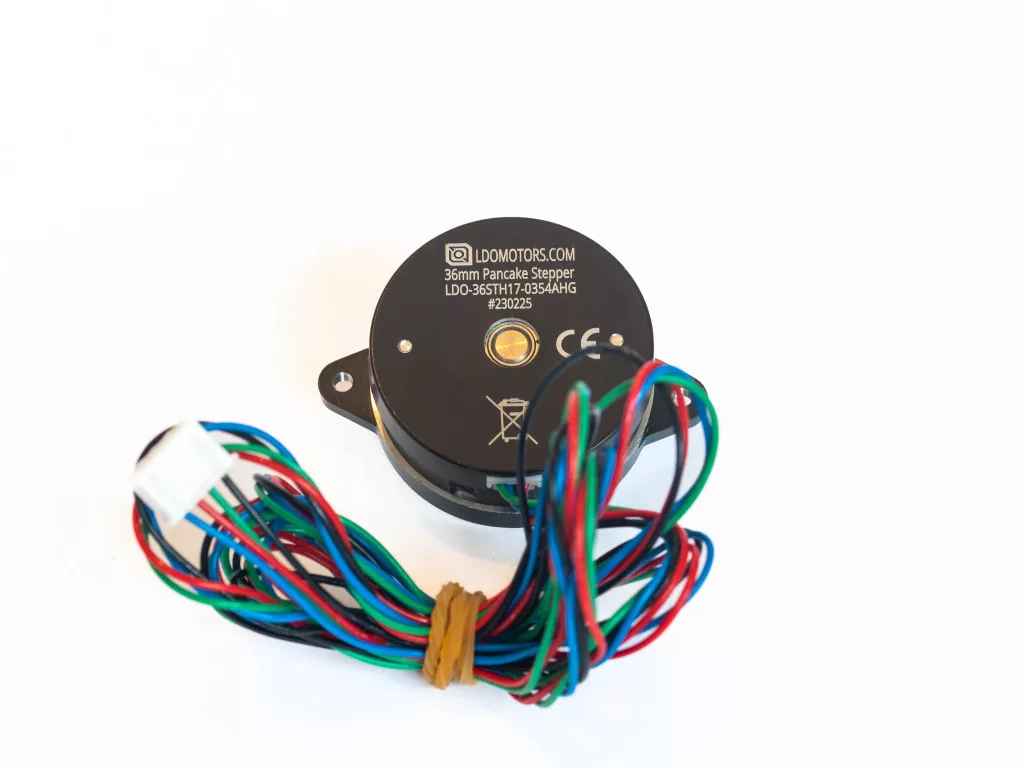

The LDO-36STH17-0354AHG is a potential motor for the Voron MiniStealthburner (MiniSB) and Sherpa extruders.

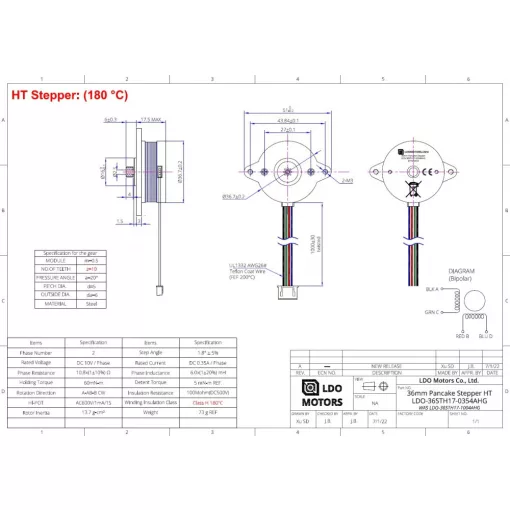

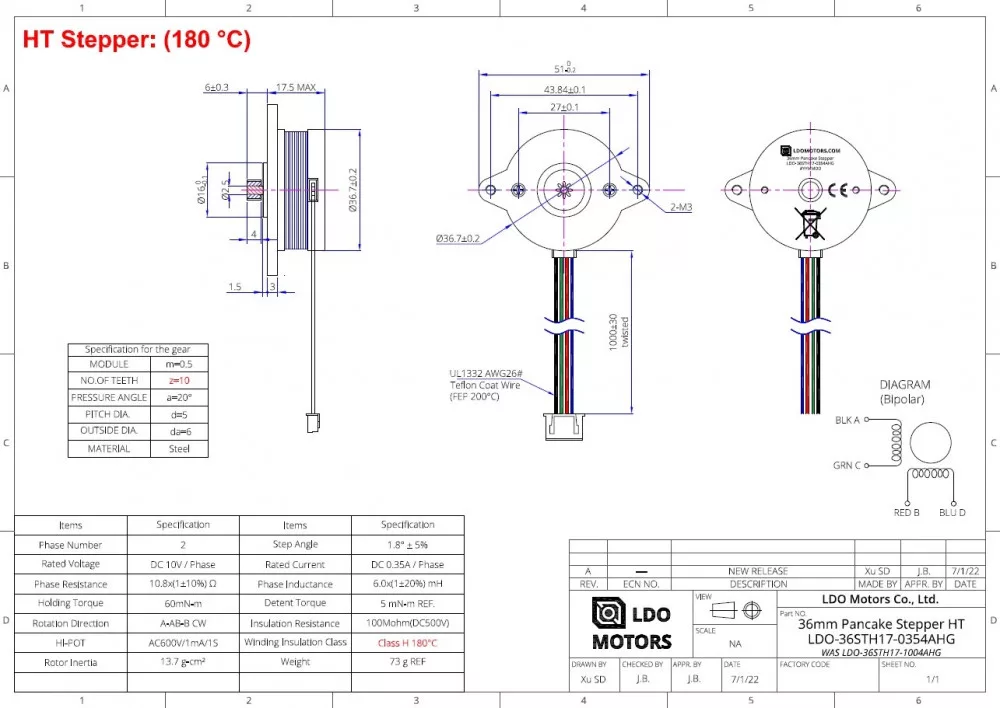

Specifications:
- NEMA 14
- 10-tooth gear
- Rated temperature: 180°C (HT)
- Step angle: 1.8°
- Steps per revolution: 200
- Current: 0.35A (RMS)
- Holding torque: 100 mNm
- Body length: 17mm
- 500mm wire lead with XH connector
- Weight: 70g
