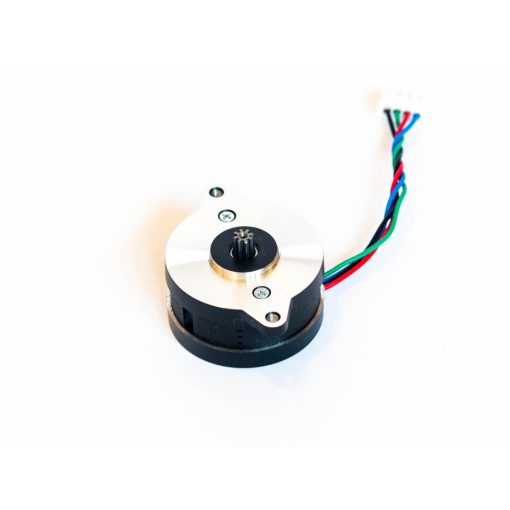

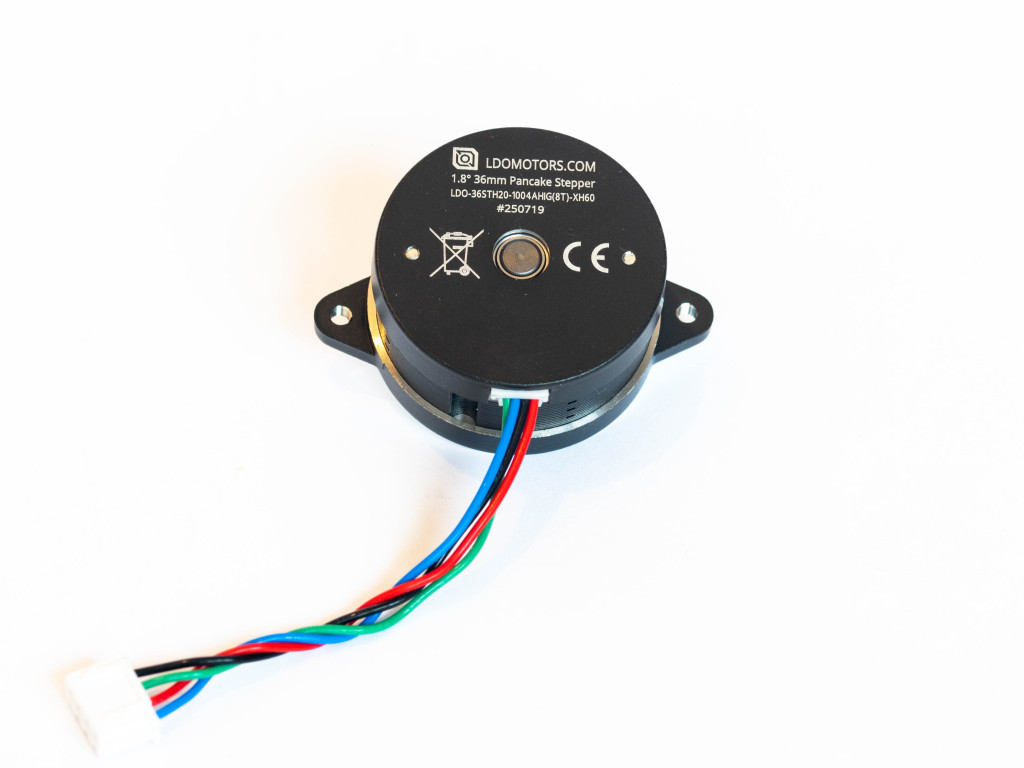

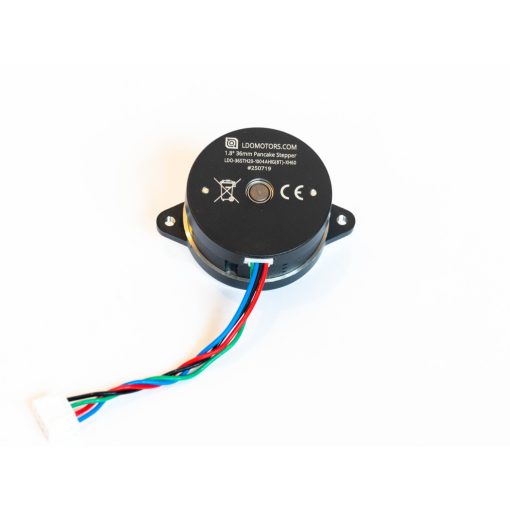

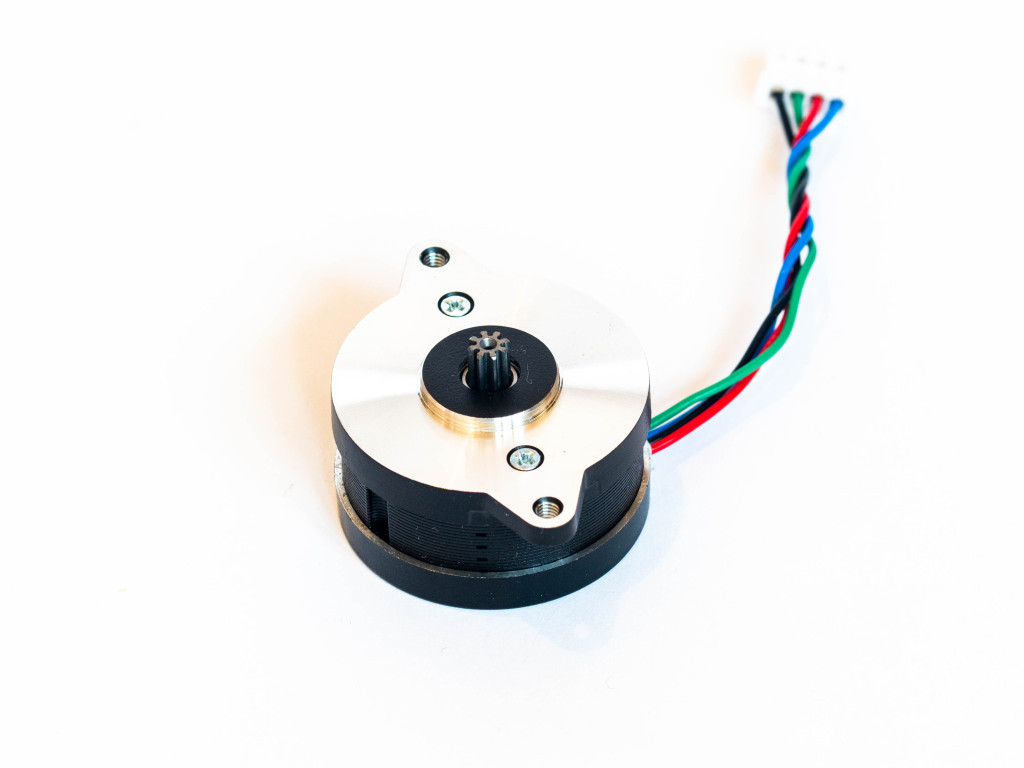

    LDO 36STH20-1004AHIG(8T)-XH60

    In stock 5 pcs
    LDO 36STH20-1004AHIG(8T)-XH60
    LDO 36STH20-1004AHIG(8T)-XH60
    LDO 36STH20-1004AHIG(8T)-XH60
    LDO 36STH20-1004AHIG(8T)-XH60
    LDO 36STH20-1004AHIG(8T)-XH60
    In stock 5 pcs

    This is the 9-tooth version of the LDO-36STH20-1004AHG extruder motor, for example for Jabberwocky extruders.

    Specifications:

    • NEMA 14
    • 8-tooth gear
    • Rated temperature: 180°C (HT)
    • Step angle: 1.8°
    • Steps per revolution: 200
    • Current: 1 Amp
    • Holding torque: 100 mNm
    • Body length: 20mm
    • 60mm wire lead with XH connector
    • Weight: 85g
    20.27 €
    Number of teeth:
    10T
    9T
    8T
    Insulation:
    Class H 180°C
    pcs
