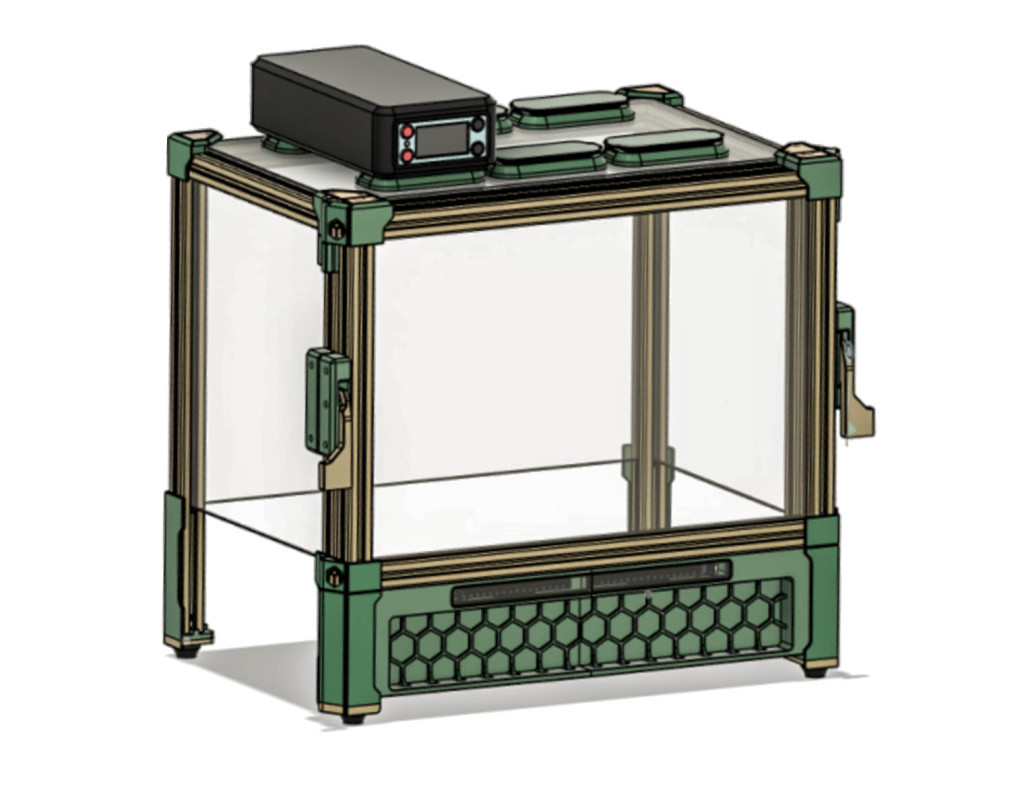

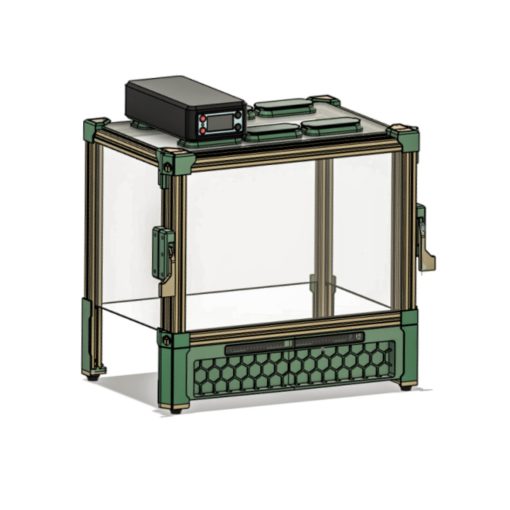

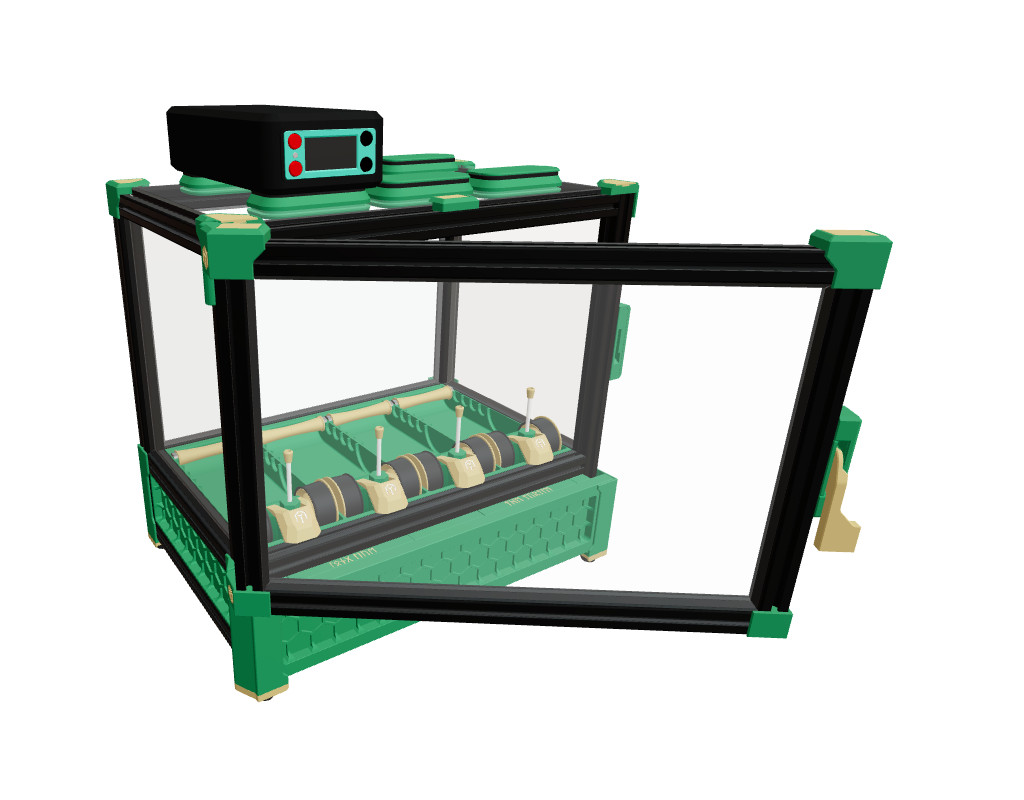

Complete enclosure for the LDO Box Turtle filament switcher with drying functionality.
The kit includes all necessary aluminum extrusions, acrylic panels, and hardware – as well as the Polymaker Polydrier Dock.
kit includes:
- 1pcs Polymaker Polydryer Dock
- 7pcs 2020 aluminium profiles, 360mm
- 2pcs 2020 aluminium profiles, 280mm
- 2pcs 2020 aluminium profiles, 220mm
- 2pcs side, front/back and top panels, 3mm thick acrylic
- 4pcs 4x6x6 slide bearings
- 2pcs 4x30mm metal dowel pins
- 1pcs rubber seal for panels, 4.5m
- 1pcs foam adhesive tape, 2.5m, 3mm
- 14pcs M5x16 pan-head screws (BHCS)
- 26pcs M3 threaded inserts
- 24pcs M3 2020 insert nuts
- 46pcs M3x8 pan-head screws (BHCS)
- 10pcs M3x12 pan-head screws (BHCS)
- 10pcs M3x18 pan-head screws (BHCS)
- 1pcs M3x50 cylinder head screw (SHCS)
Github link: github.com/ArmoredTurtle/BoxTurtle-Enclosure
Support the Project: A portion of all sales are donated from LDO to the Armored Turtle project in support of this Open Source Hardware project!
