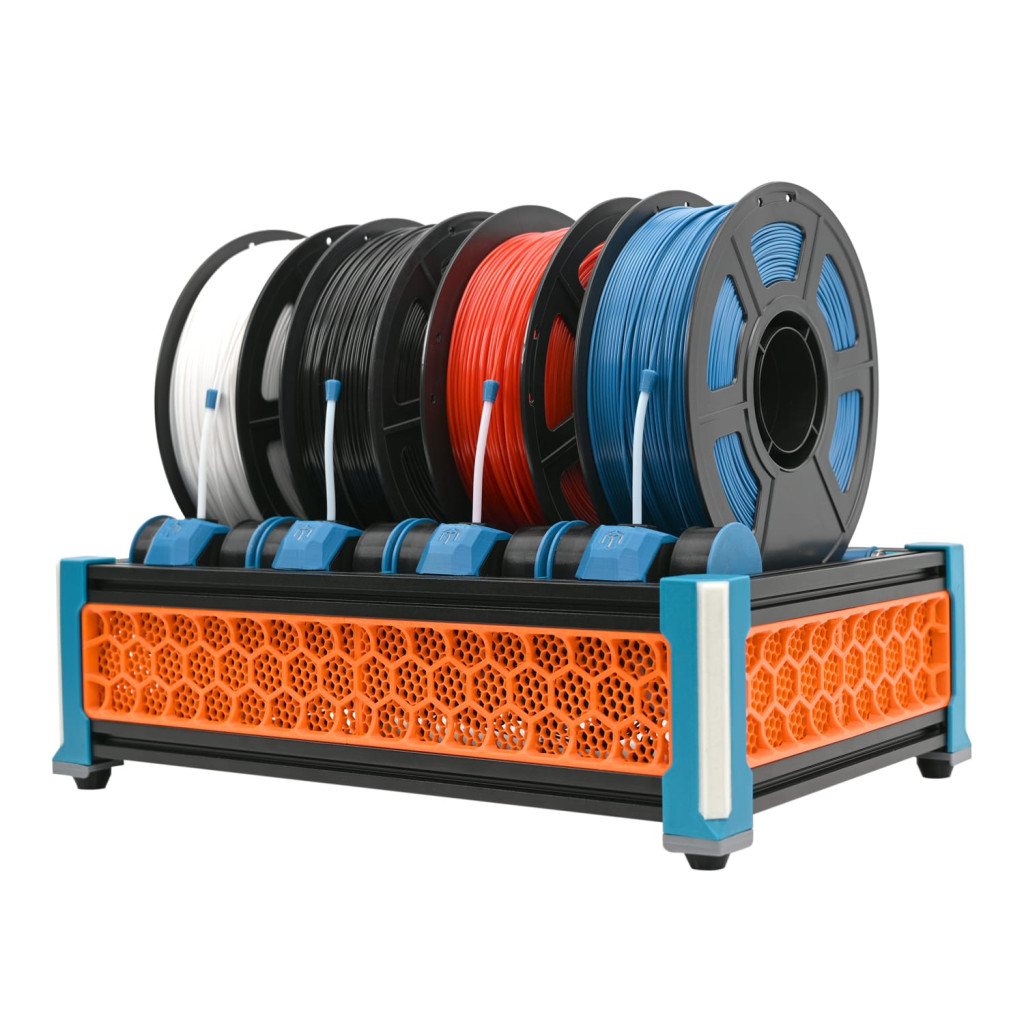

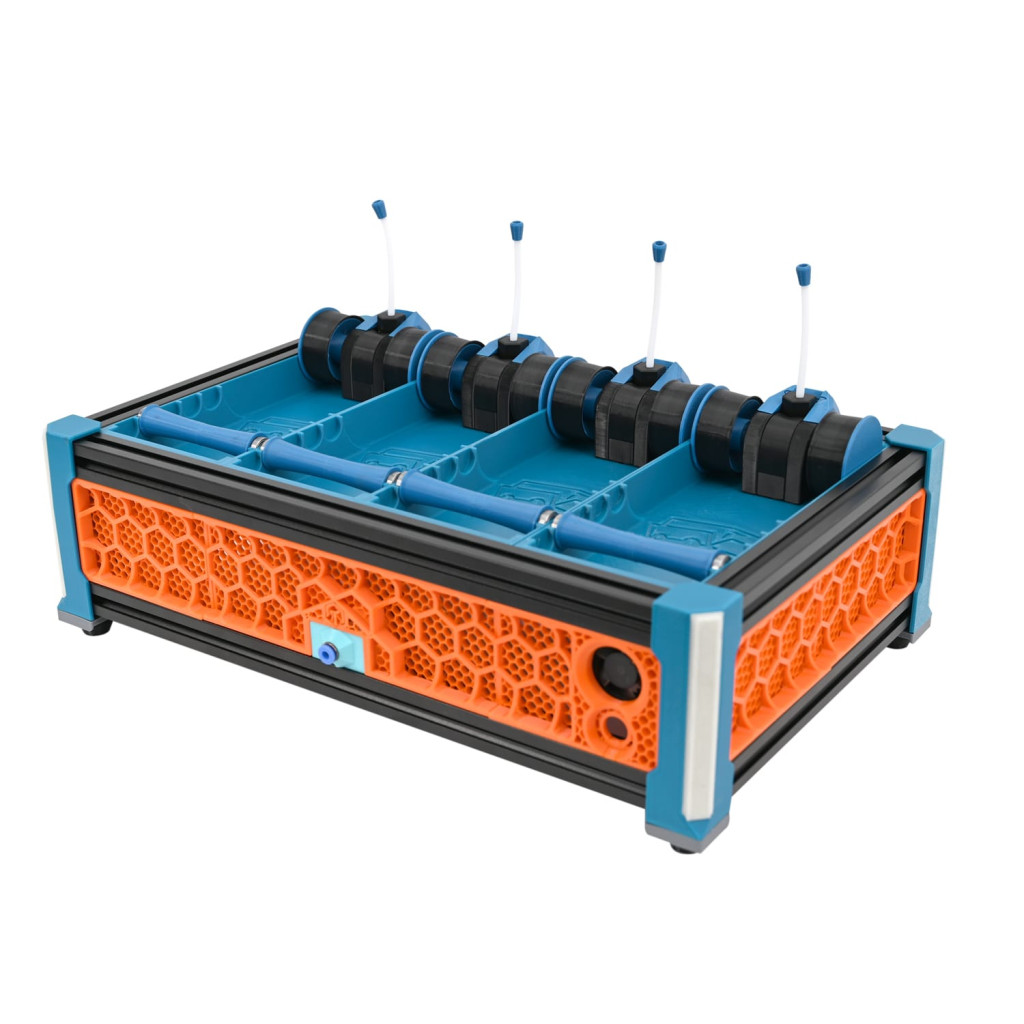

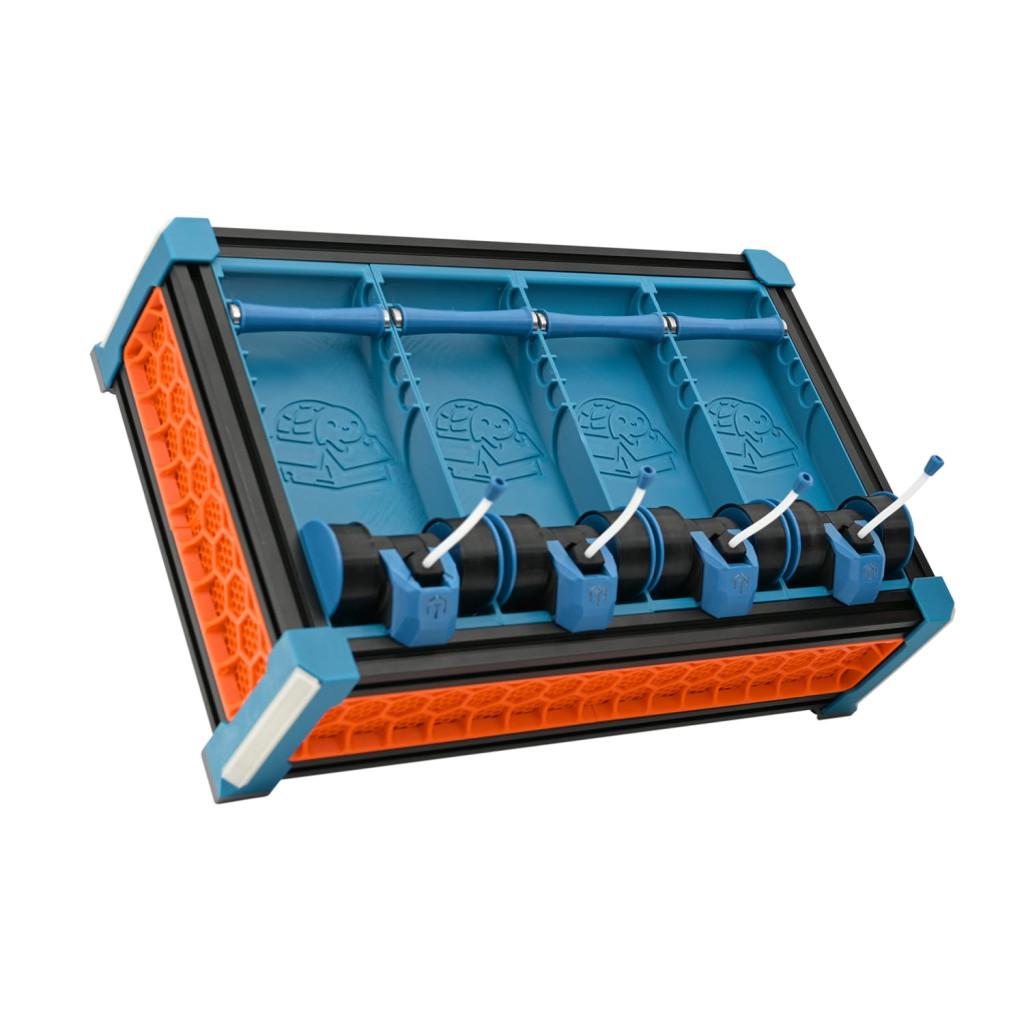

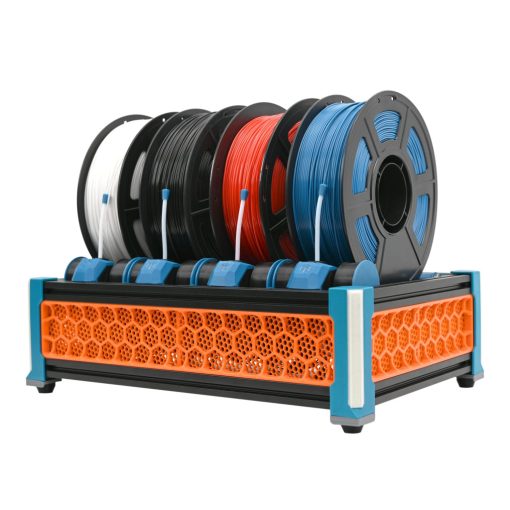

BoxTurtle is an open-source, AMS-style filament changer for Klipper-based printers. The goal of BoxTurtle is to provide a user experience as close to an AMS as possible in a stock Klipper environment. In other words, an "AMS" for any Klipper-enabled printer, regardless of its design, but especially for Voron Design printers.
The LDO BoxTurtle kit is entirely based on the original BoxTurtle design, with some useful extra features added. BoxTurtle requires the AFC-Klipper Add-On to function.
Features:
- Powerful LDO pancake motors
- Come with AFC-Lite board - support for both USB and CAN
- Black anodized extrusions for frame
- Omron D2HW switch for filament sensor
- Pre-crimped cables included

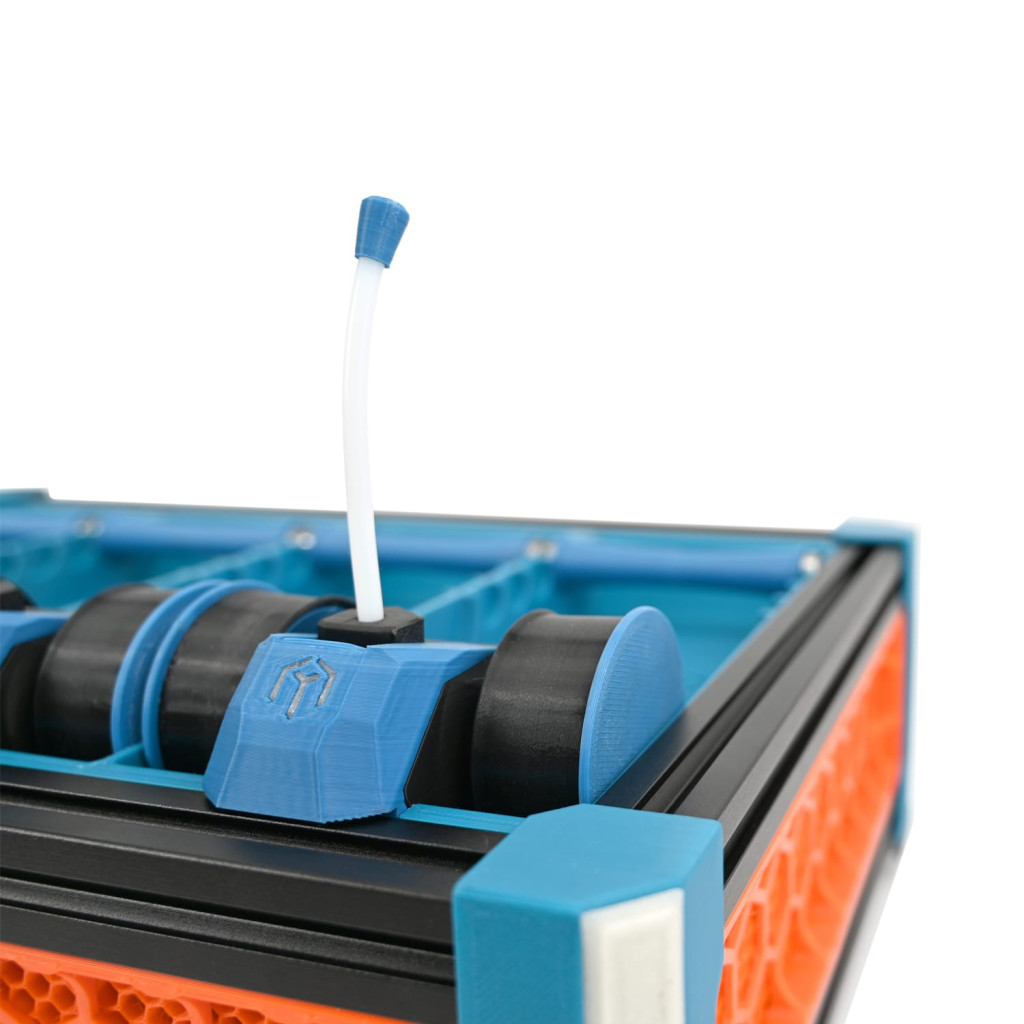

- FilamATrix parts included

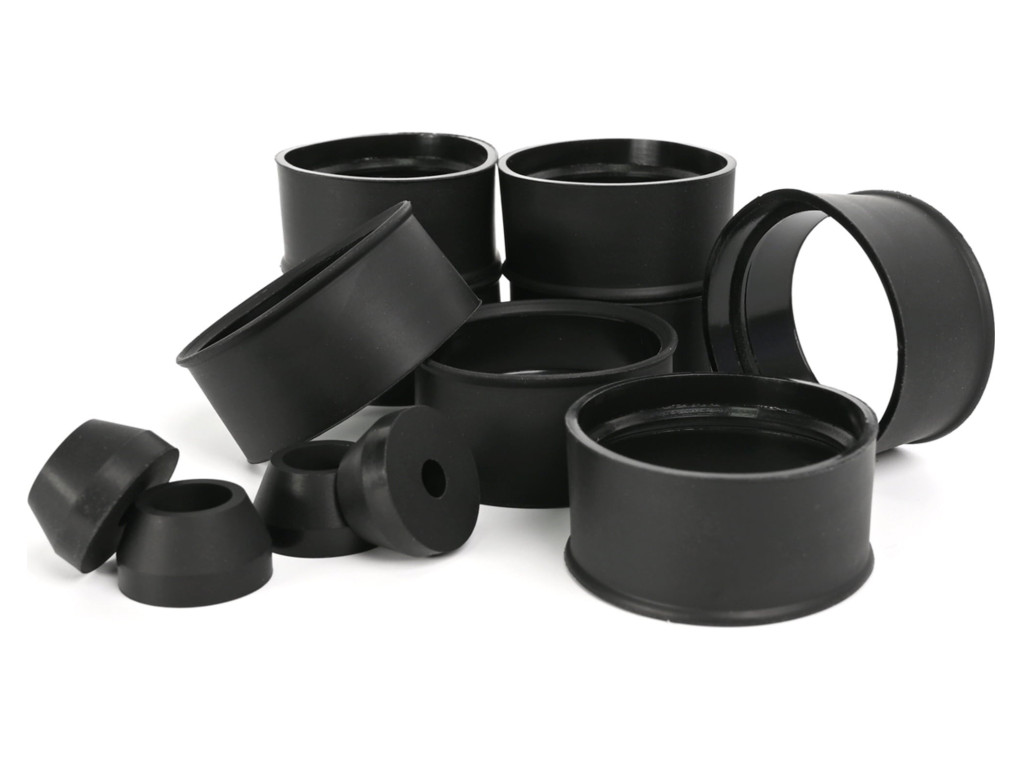

- MJF Printed PA12 gears for respooler
- TurtleNeck Buffer parts kit included
- Hard Mount Hardware included
Technical Data:
- Filament Slots: 4pcs
- Maximum Expandability: 16 BoxTurtles/64 Spools
- Rated Power: 30W
- Rated Voltage: 24V
- Product Dimensions: 404x264x121mm
- Net Weight (w/o spools): ≤4kg
- Status Indicators: 4pcs
- Filament Run-out Detection
- Filament Buffer
- Filament Diameter 1.75mm
- Filament Spool Requirement: diameter of 180-225mm, spool width of 42-77mm
The kit does not include printable parts. More information and STL files can be found on the Box Turtle github page:
github.com/ArmoredTurtle/BoxTurtle
