This is a refined, laser-cut version of the FT EMS (FizzysTech Electronics Management System) frame, designed specifically for Voron 2.4 350mm printers. Based on the publicly available printable model, this LDO Motors version offers increased rigidity, easier assembly, and professional finish.
Ideally, the FT EMS V2.4 350 should be installed during the initial build of the printer. However, it can also be used to upgrade an already assembled machine—note that this involves removing the bed and electronics, so some disassembly is required.

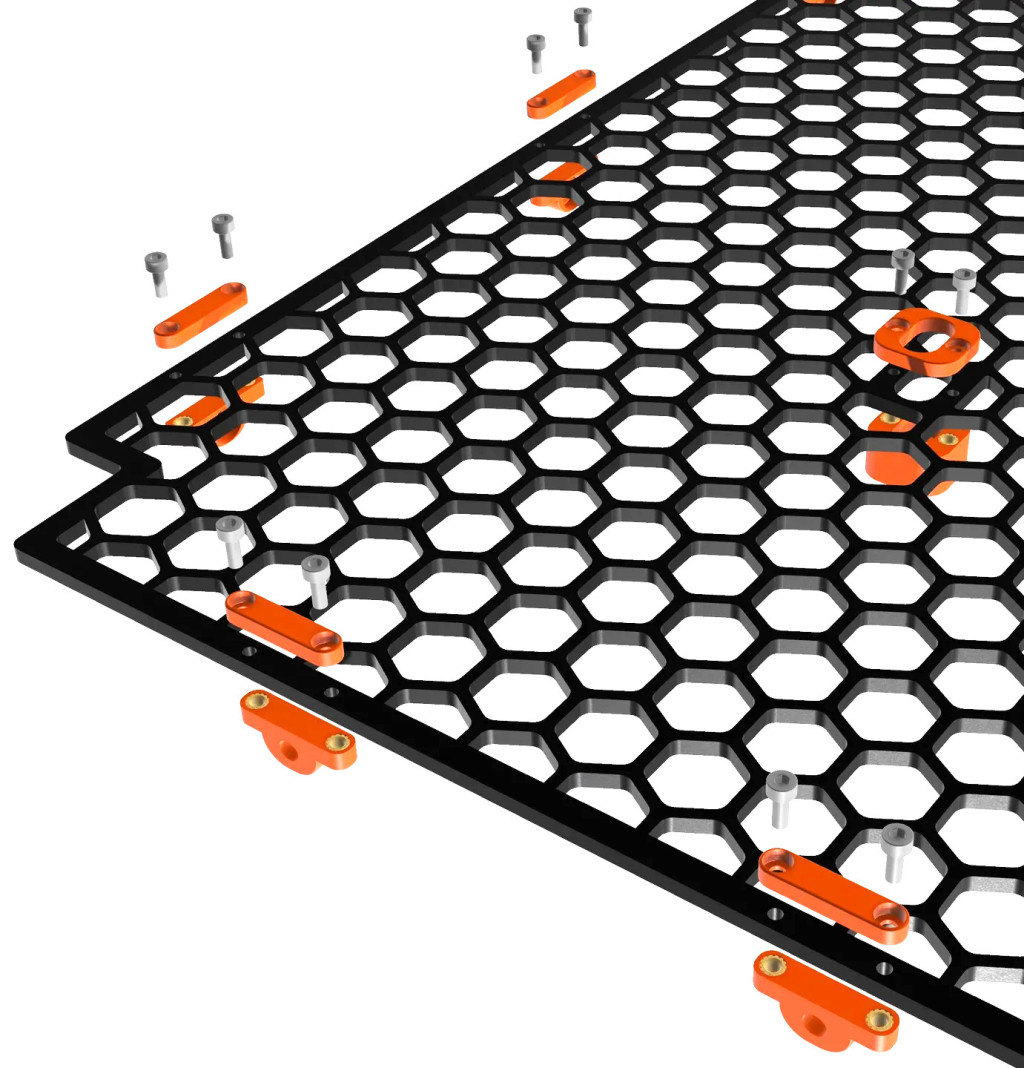

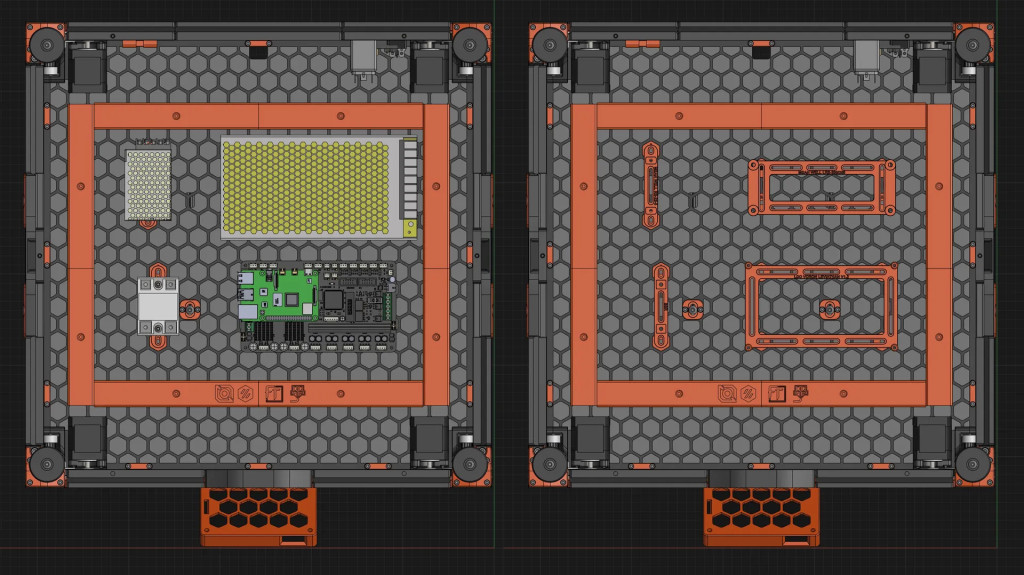

Electronics can be mounted on hex standoffs and freely positioned within the frame. Users can customize the layout and print only the required mounts and cable ducts, even with a smaller printer.

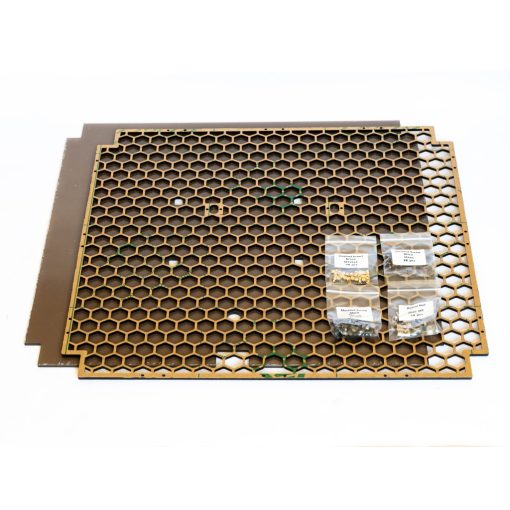

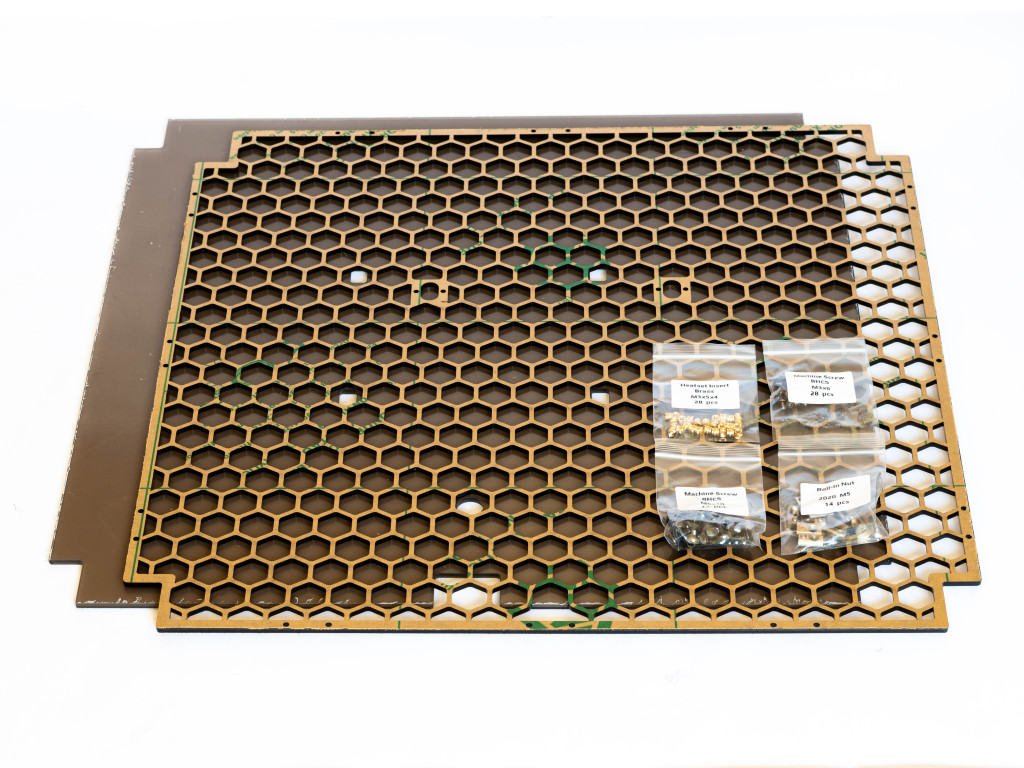

Kit includes:

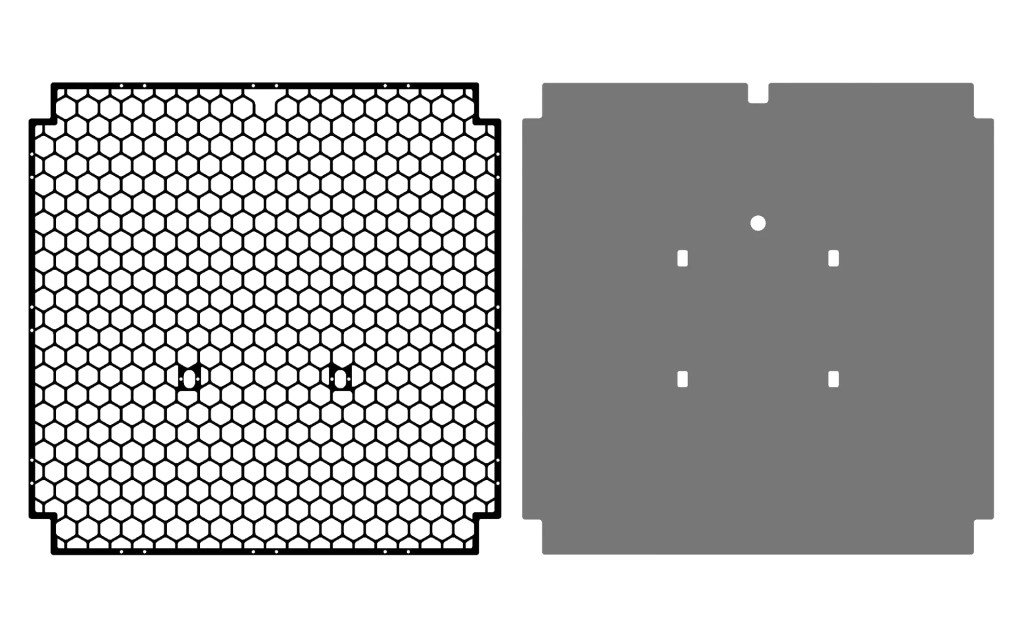

- FT EMS Voron 2.4 laser-cut frame (for 350mm size)
- Smoked acrylic deck panel (for 350mm size)
- 14pcs - M5 T-nuts
- 14pcs - M5x10 BHCS (button head cap screws)
- 28pcs - M3 threaded inserts
- 28pcs - M3x6 BHCS
3D printed parts (mounts, ducts) are not included and must be printed according to your own electronics layout. You can find countless models for this here:
www.printables.com/model/558357-ft-ems-mounts-repository
You can find further instructions and an assembly guide here:
www.printables.com/model/1027710-ft-ems-voron-24-350mm-ldo-laser-cut
