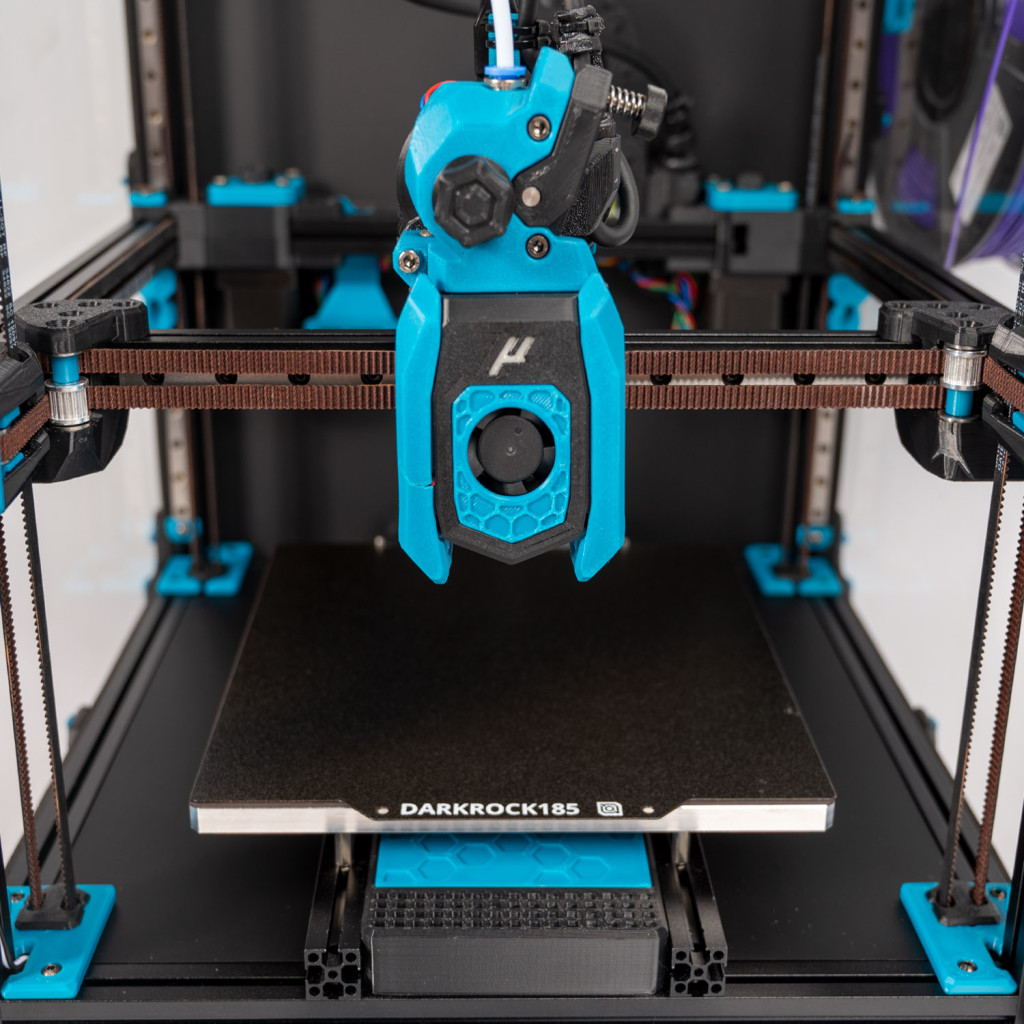

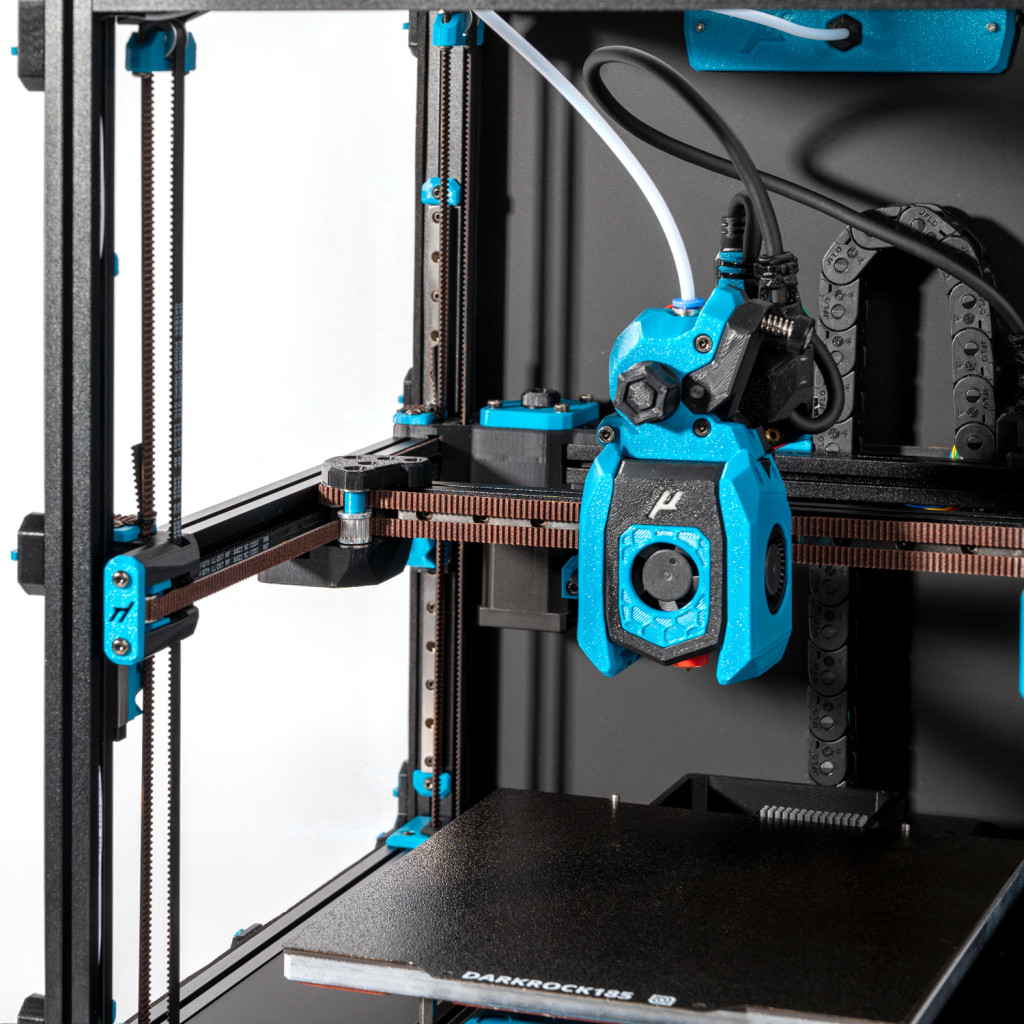

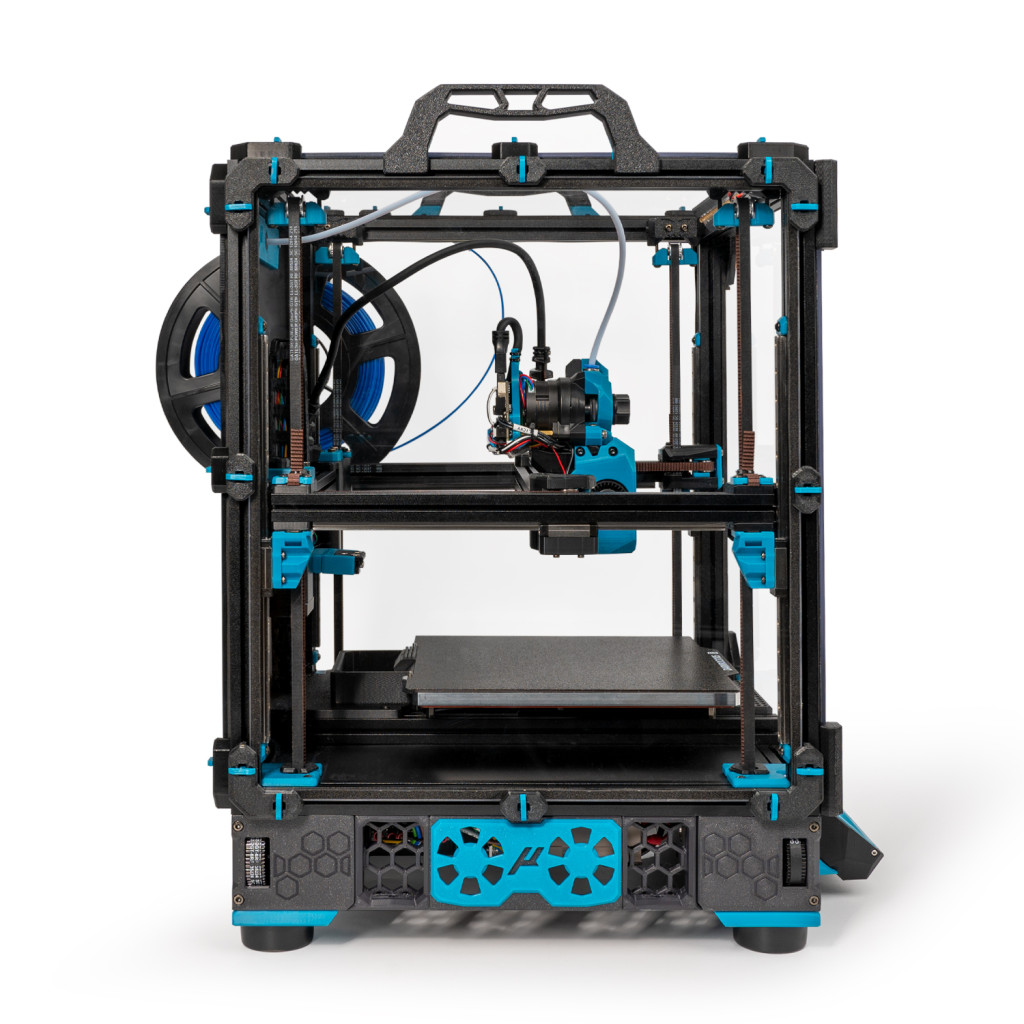

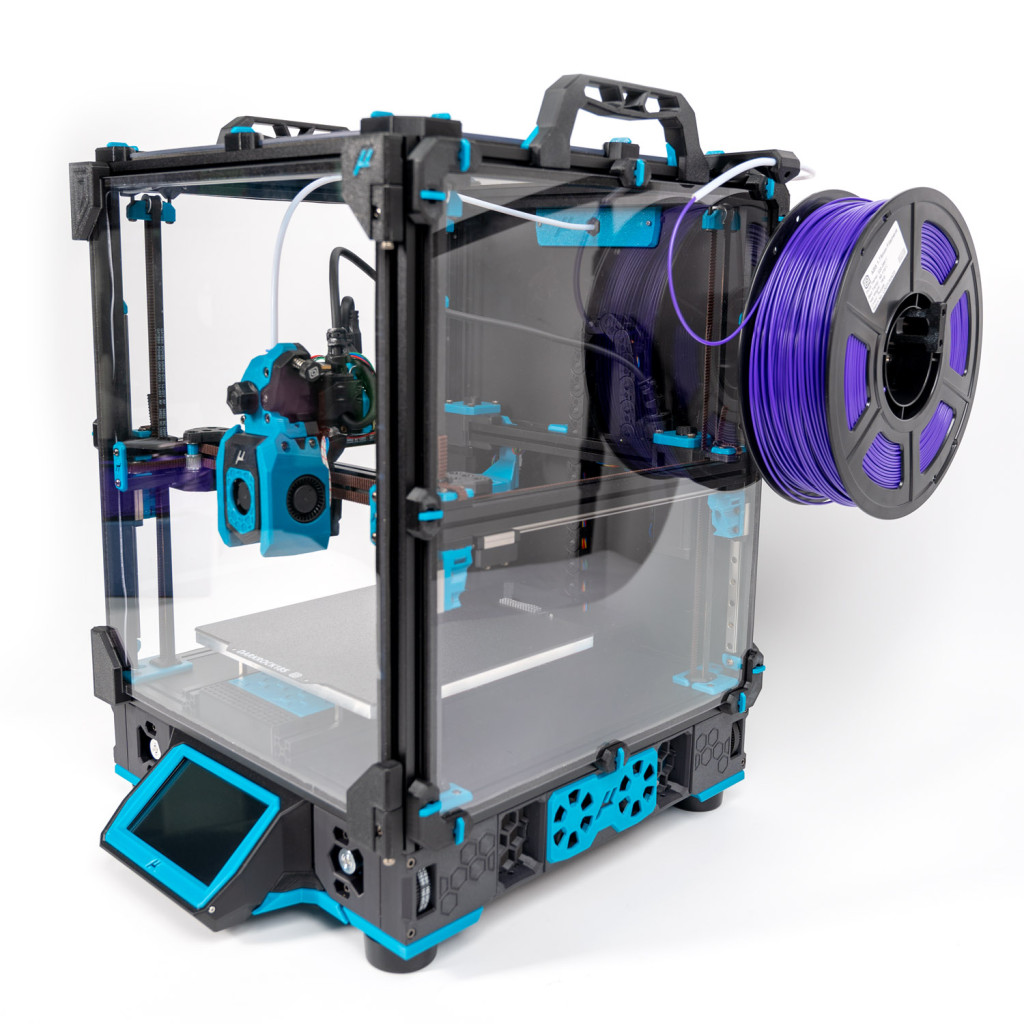

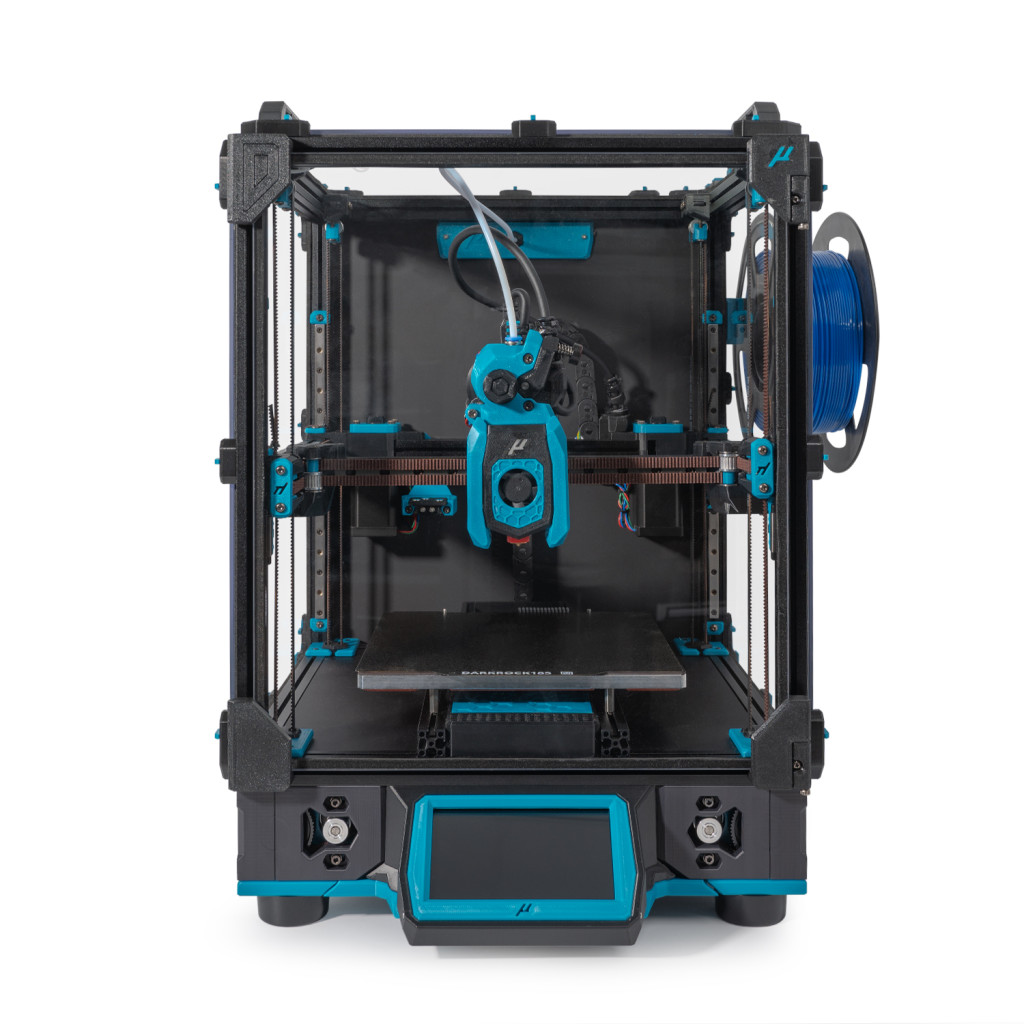

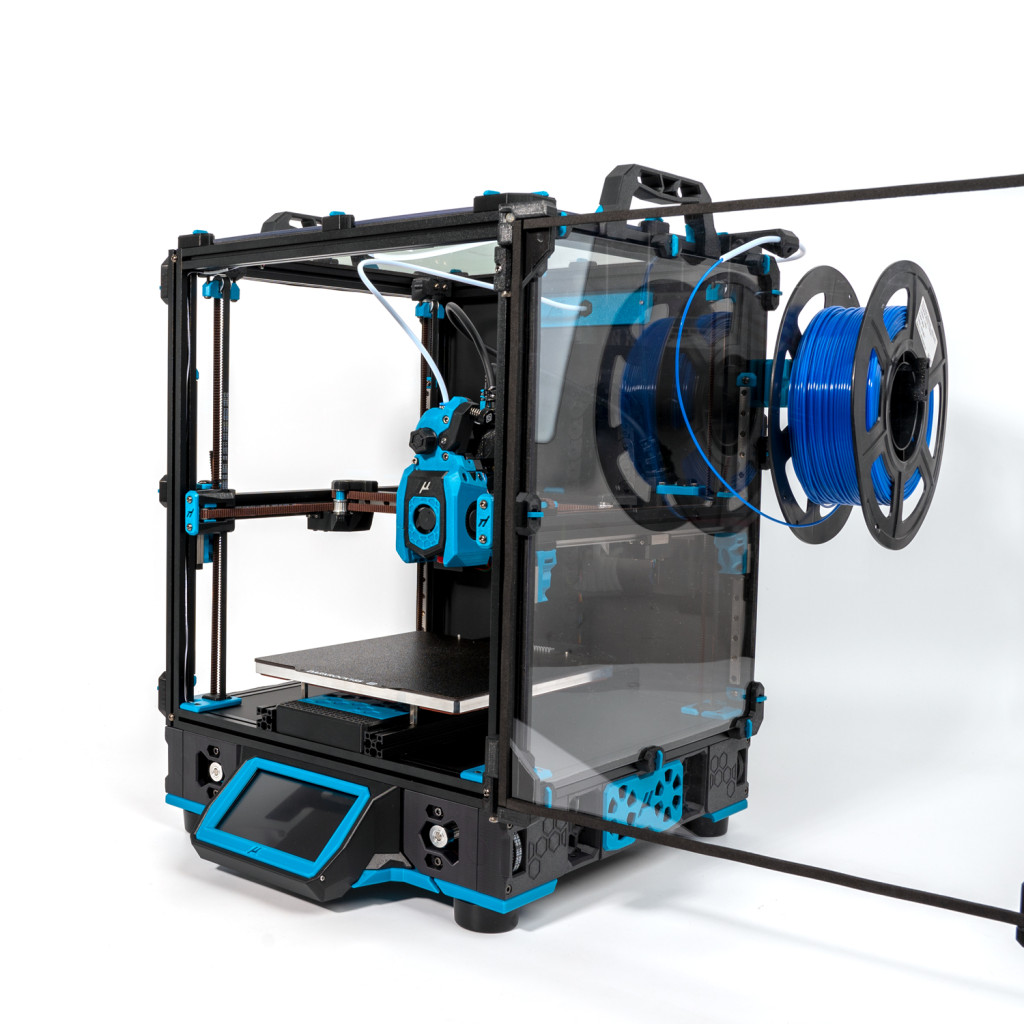

The MicronPlus is similar to the Voron V2.4, but scaled down and using 1515-sized extrusions. The open-source design was created by HartK, and the kit is produced by the community-trusted LDO Motors.
The kit includes all the necessary parts to assemble the latest R1 version, except for HotEnd, Raspberry Pi and printed parts.
The kit comes with a grey frame.
Mechanics:
- Print aera: 180mm × 180mm × 165mm

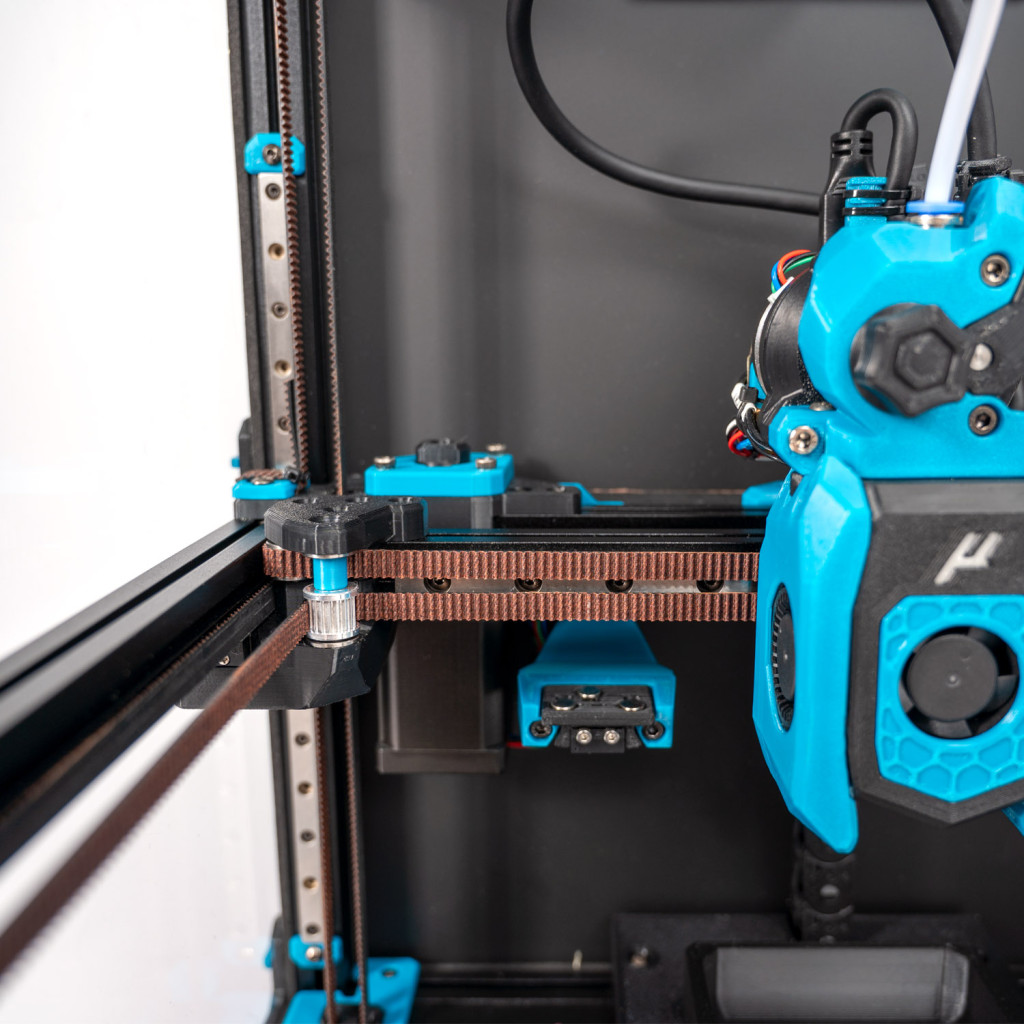

- Kinematics: Flying Gantry CoreXY
- Pulleys/Idlers: Pinned hubs, live XY idlers

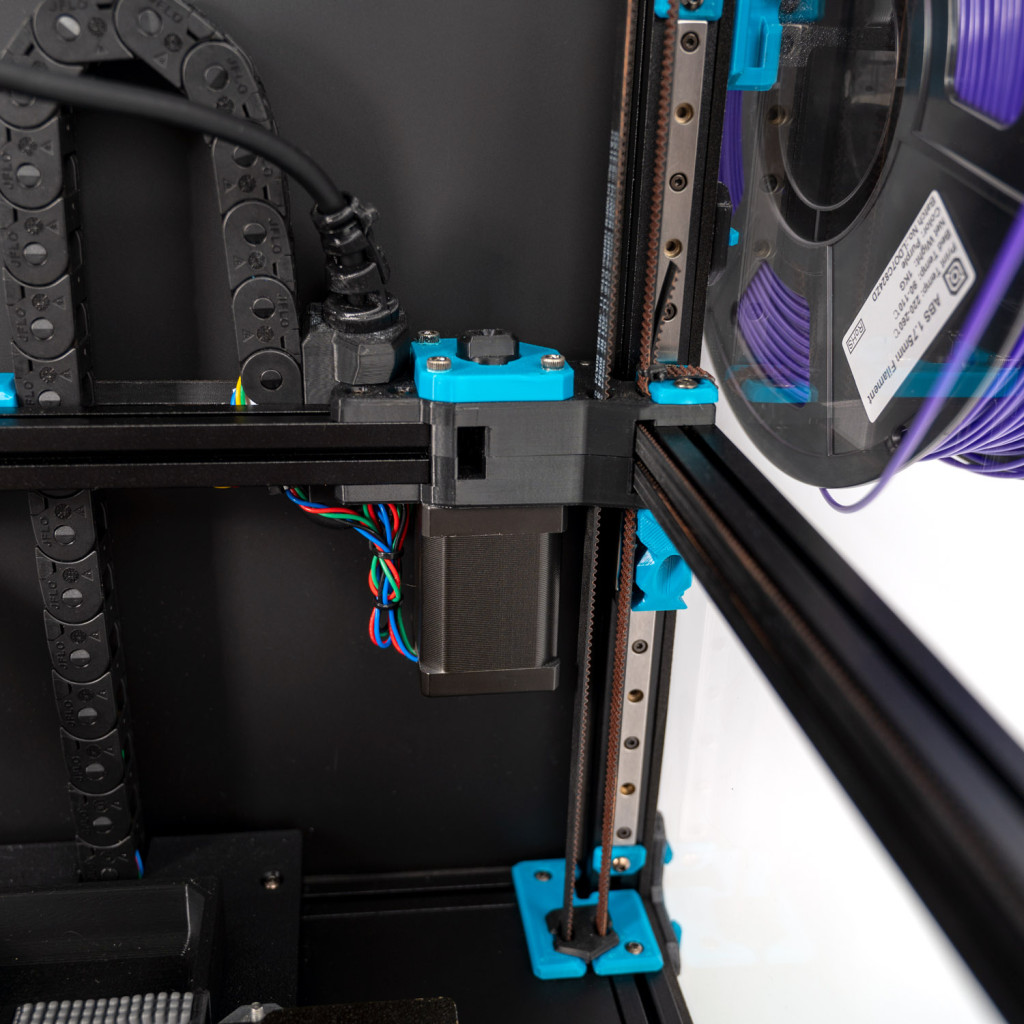

- X/Y motors: Dual Shear mounting with 35mm shaft

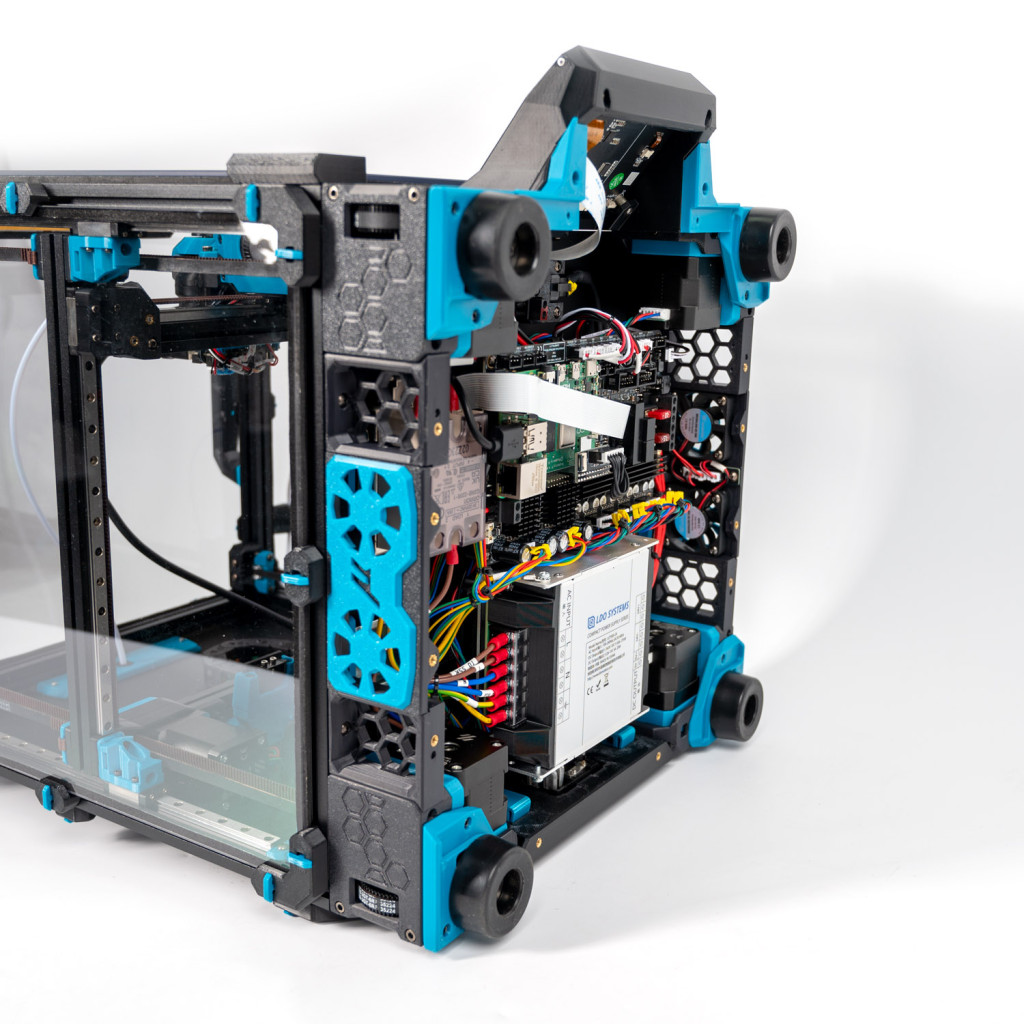

Electronics:
- Mainboard: Leviathan V1.3

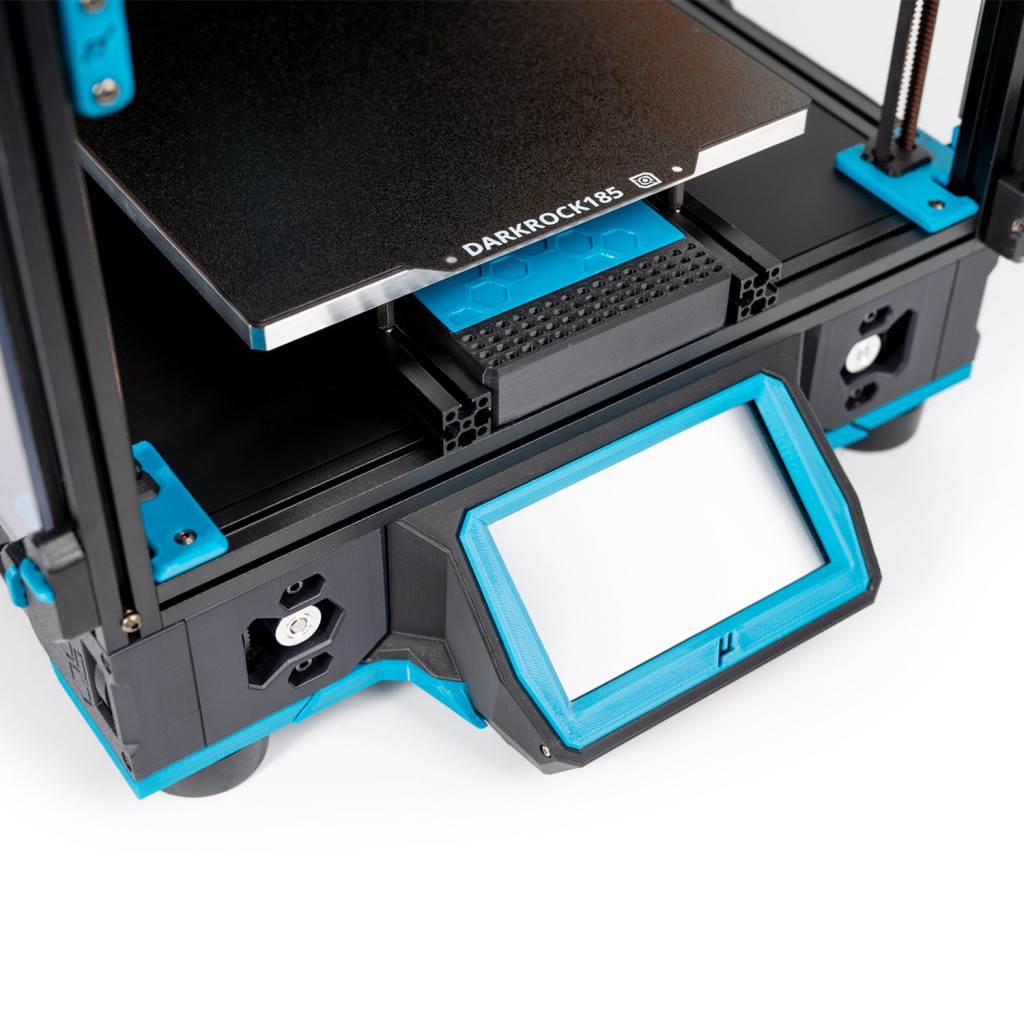

- Display: BTT Pi TFT 4.3
- Toolhead board: Nitehawk-36 via umbilical cable (USB)
- Power supply: LDO dual-voltage 275W/24V, 25W/5V
- Heated bed: 300W, max 120°C
gitHub: github.com/PrintersForAnts/Micron
