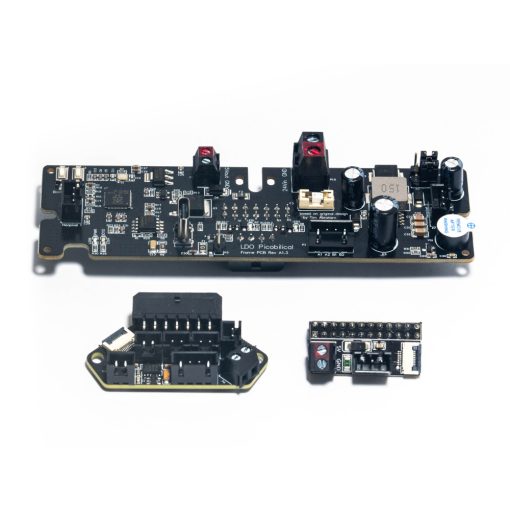

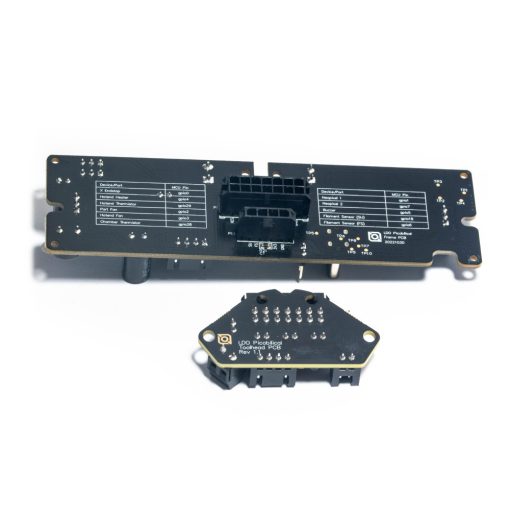

The LDO Picobilical is a mod designed for Voron V0 3D printers based on the idea of the V0 Umbilical mod, but supplemented with new features:
- Toolhead PCB for easier wire management on the print head.

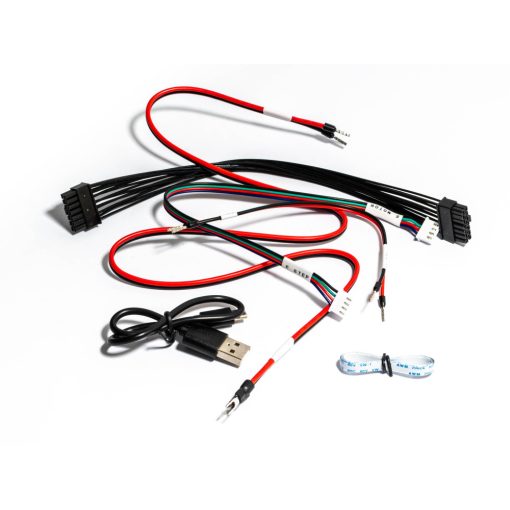

- Detachable "umbilical cord" wire, for example, for convenient disassembly during maintenance.
- Built-in RP2040 microcontroller on the companion board (frame pcb), thus fewer wires are needed towards the motherboard, where moreover, more free ports remain for additional functions.
- Integrated 24V/5V DCDC converter with a max. 5A output, which eliminates the need for an external 5V converter for the Raspberry Pi.
- Two independent neopixel ports, and a Beeper is also found on its Frame PCB.
- Selectable 5V/24V voltage for the HotEnd and object cooling fan.
- Built-in temperature sensor for monitoring the chamber temperature.
- ADXL accelerometer module for Klipper Input Shaper.
- Optional filament sensor input.
You can find detailed instructions on the LDO website. Be sure to check it out carefully: docs.ldomotors.com/en/voron/voron01/Picobilical
