LDO Voron Trident R2 Upgrade Kit

This package contains the parts needed to upgrade to the Voron Trident R2 version. The upgrade includes the following changes, among others:

• Updated BA Stepper mounts (53mm shorter belt path)
• XY Joints
• Front Idlers/Tensioners (BFI)
• Z Stepper Mounts
• Z Carriages

Github:

• github.com/VoronDesign/Voron-Trident/releases/tag/VTr2

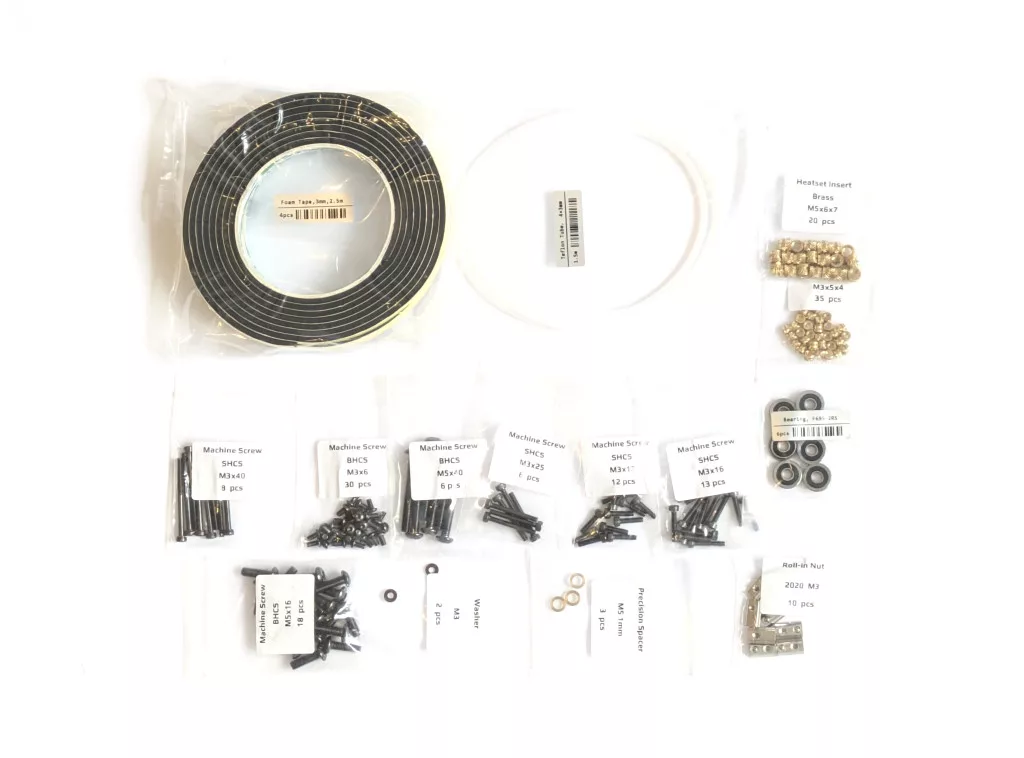

Package contents:

• 30pcs Machine Screw, BHCS, M3x6, Black Nickle
• 18pcs Machine Screw, BHCS, M5x16, Black Nickle
• 6pcs Machine Screw, BHCS, M5x40, Black Nickle
• 12pcs Machine Screw, SHCS, M3x12, Black Nickle
• 13pcs Machine Screw, SHCS, M3x16, Black Nickle
• 6pcs Machine Screw, SHCS, M3x25, Black Nickle
• 8pcs Machine Screw, SHCS, M3x40, Black Nickle
• 2pcs Washer, M3, Black Nickle
• 3pcs Precision Shim, M5, 1mm (Brass)
• 10pcs Roll-in Nut, 2020, M3
• 35pcs Heatset Insert, Brass, M3x5x4
• 20pcs Heatset Insert, Brass, M5x6x7
• 6pcs Bearing, F695-2RS, ABEC-7
• 2.5m 3mm Foam Tape
• 1.5m PTFE Tube, 4x3mm
