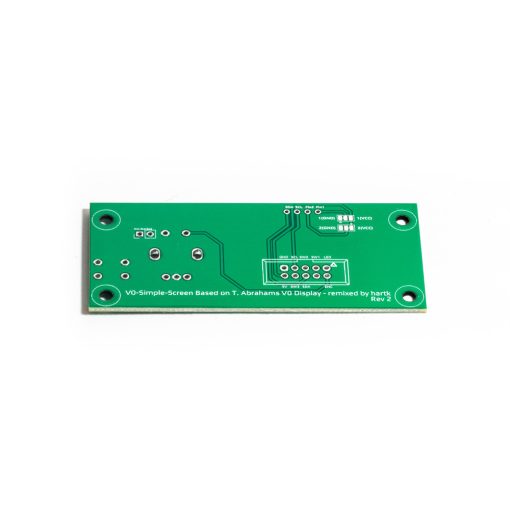

V0 OLED display pcb. It is called simple" because it does not have its own electronics, all functions must use the outputs of the motherboard.

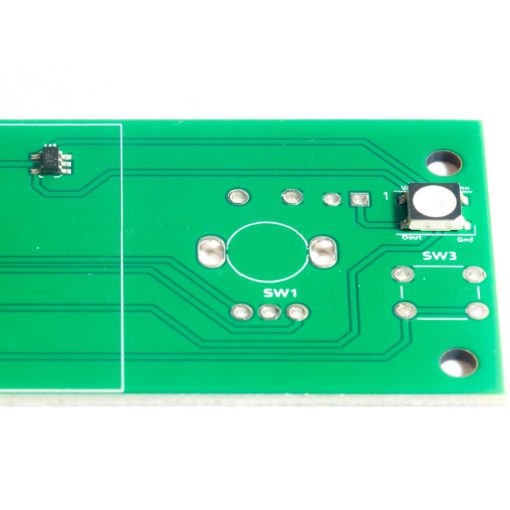

You only need to solder the through-hole components onto it. The two necessary SMD components are assembled on the printed circuit board:
- WS2812B RGB led
- SchmittTrigger Buffer
You can find the source of the circuit and instructions here:
https://github.com/VoronDesign/Voron-Hardware/V0_Simple_Display
