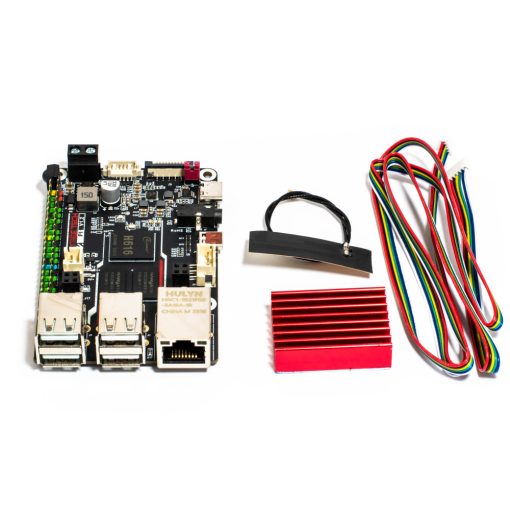

The Bigtreetech Pi V1.2 is a 3D printer controller board optimized for running Klipper firmware. The board allows for full control of the 3D printer and offers various connectivity options, including GPIO pins, USB ports, as well as Wi-Fi and Ethernet support. The device is an ideal choice for users who want to take advantage of the Klipper firmware benefits while using an easy-to-manage and flexible controller.
- CPU: Allwinner H616, Quad-Core Cortex-A53 at 1.5 GHz
- GPU: Mali G31 MP2, with OpenGL3.2 support
- RAM: 1 GB DDR3L SDRAM
- 100 Mbps WiFi: 2.4 G/802.11b/g/n
- USB2.0 x 4
- USB Type-C x 1: Power Input support
- ADXL345 accelerometer port
- USB port for CAN module
- IR-Receiver
- Audio Output 3.5 mm Jack, HDMI
- Video Output HDMI x 1: HDMI 2.0 A, 4K SPI Display Port support
- GPIO Standard 40-pin GPIO Header
- Input voltage:
- DC 5V±5 %/2 A through USB Type-C port
- DC 12V-24V through screw terminals
- Output voltage 3.3V±2 %/100 mA
- Dimensions 85x56 mm, with the same mounting holes as the RPi
Pre-configured Klipper:
github.com/bigtreetech/CB1/releases
