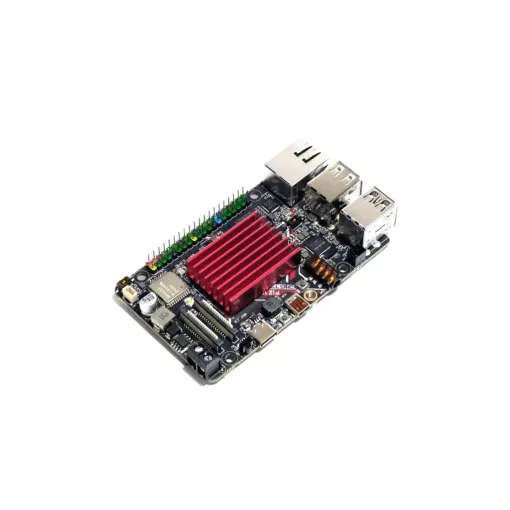

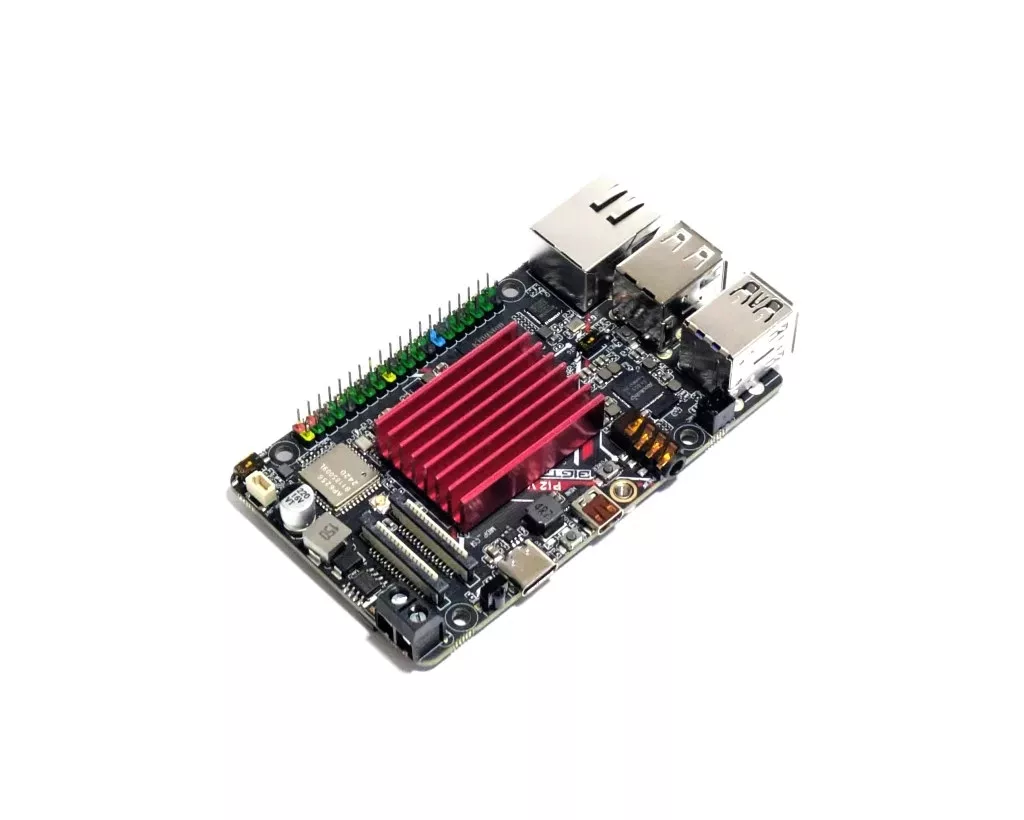

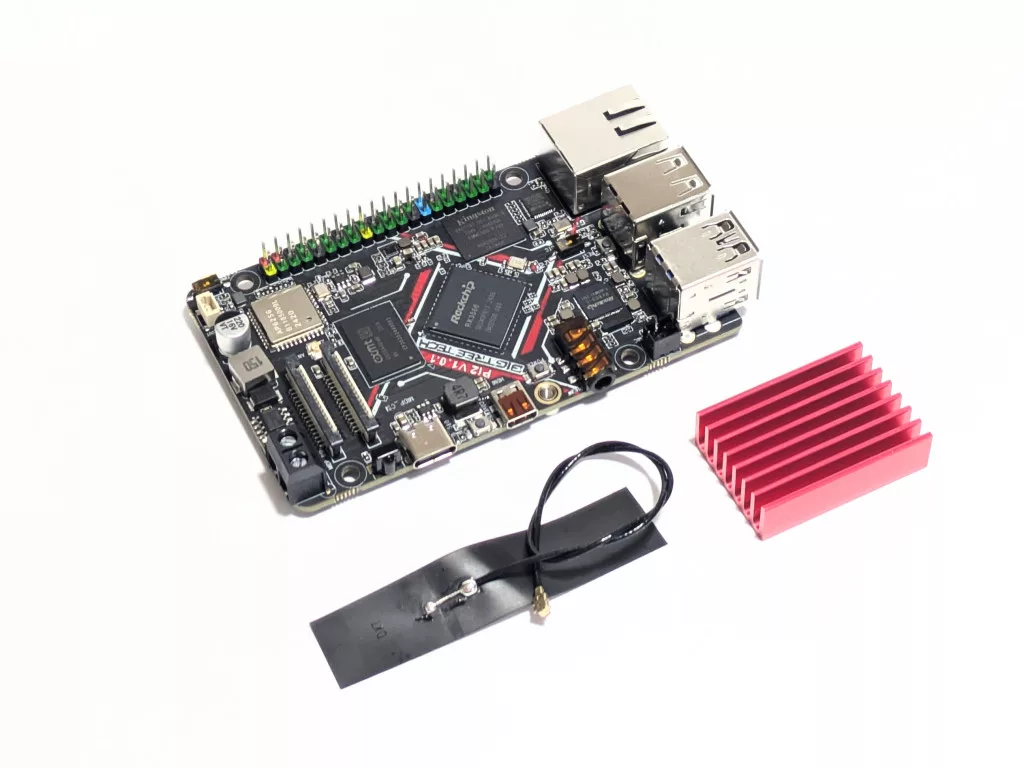

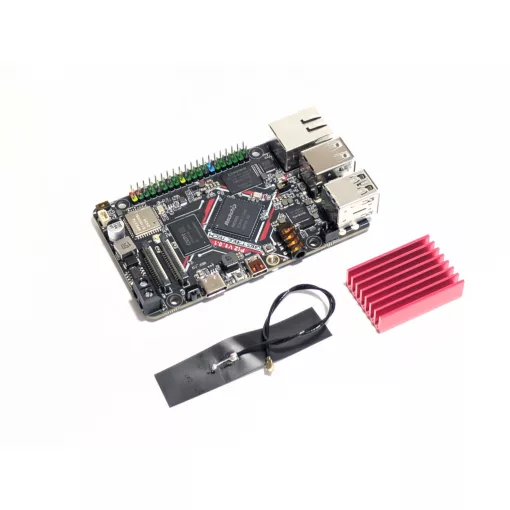

The Bigtreetech BTT Pi V2 is an advanced 3D printer controller board specifically optimized for running Klipper firmware. The BTT Pi V2 offers better performance than the previous BTT Pi V1.2, thanks to its improved hardware. The board features Wi-Fi and Ethernet support, as well as multiple USB ports and GPIO pins, enabling easy control and monitoring of the printer. The BTT Pi V2 is an ideal choice for those seeking precise and fast printing performance.
- CPU: Rockchip RK3566, Quad-core Cortex-A55, 1,8GHz
- GPU: Mali-G52 1 magos 2EE
- RAM: 2 GB LPDDR4
- eMMC: 32 GB
- Wifi: 2.4G/5G, 802.11 ac/a/b/g/n, 433.3Mbps
- Bluetooth: BT5.2
- 3 x USB 2.0, 1 x USB 3.0
- USB Type-C x 1: Power Input support
- ADXL345 acceleration sensor port
- USB port CAN module
- IR-Receiver
- Audio Output 3,5 mm Jack, HDMI
- HDMI 2.0 OUT (480P-4K 60Hz)
- GPIO Standard 40-pin GPIO Header
- Input voltage:
DC 5V±5 %/2 A USB Type-C
DC 12V-24V through screw terminals
- Output voltage: 3,3V±2 %/100 mA
- Dimensions: 93,8mm x 56mm
Pre-configured Klipper:
github.com/bigtreetech/CB2/releases
