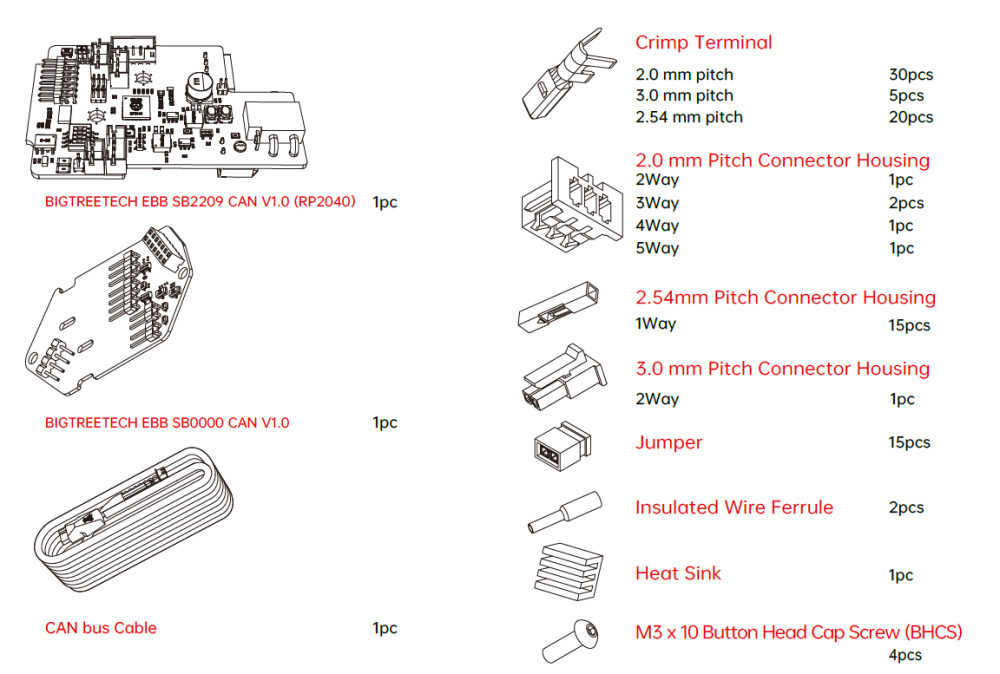

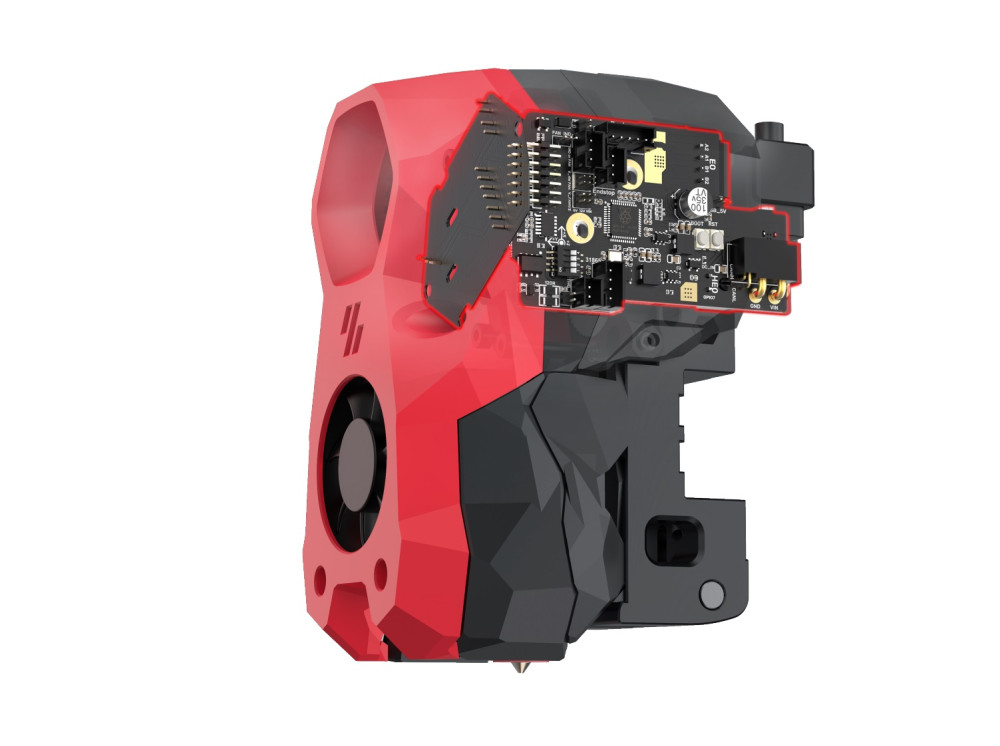

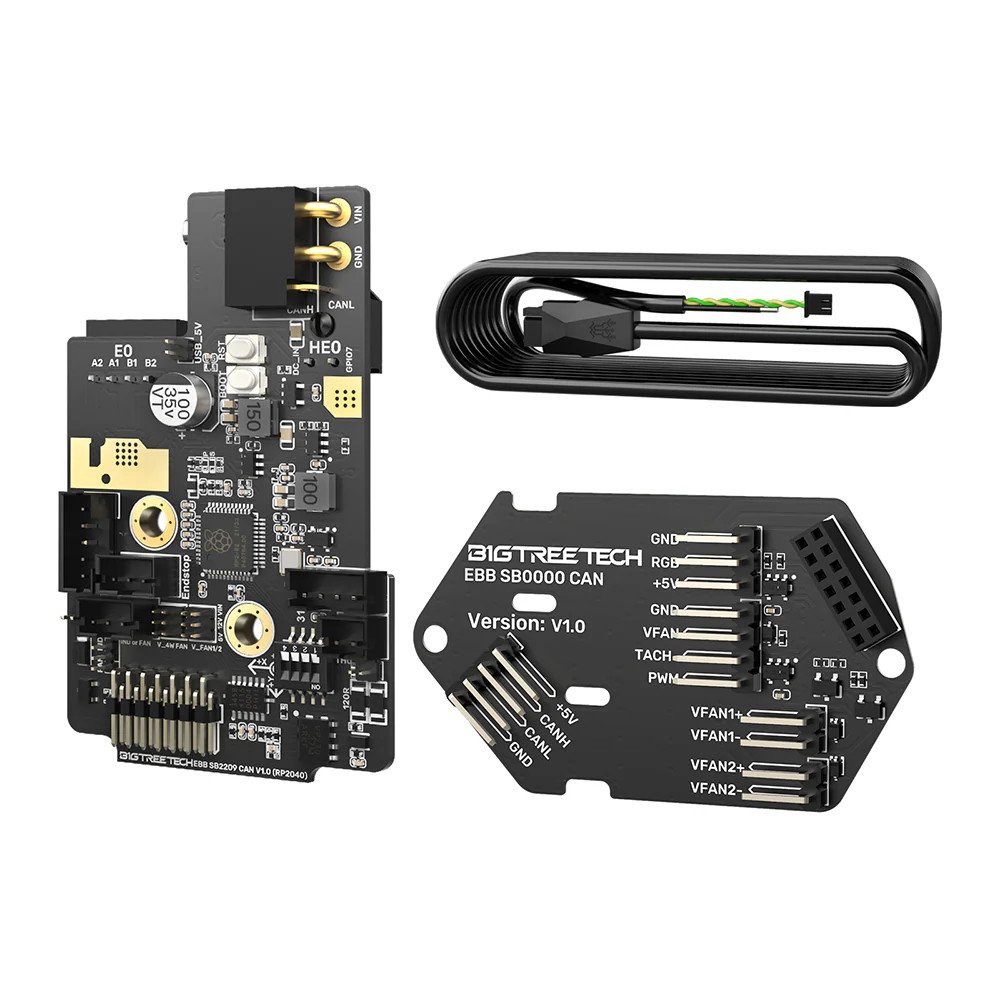

Bigtreetech CAN Board designed for Voron StealthBurner. The package includes connectors and a 3 meter long cable.
This version uses PH2.0 connectors, making it easier to assemble.
- Motor driver: TMC2209, UART
- MCU: RP2040
- Input voltage: DC12V-DC24V 9A
- Logic voltage: DC 3.3V
- HotEnd heating: Heater Cartridge (EO), Max 5A

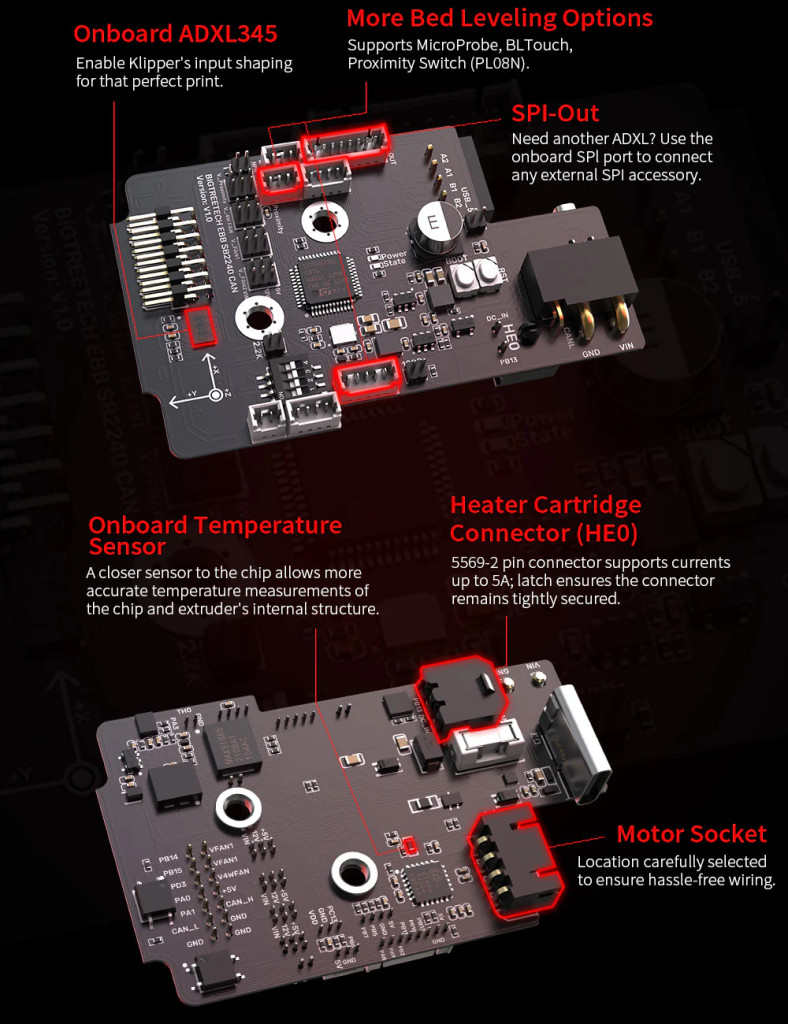

- Built-in sensor: ADXL345

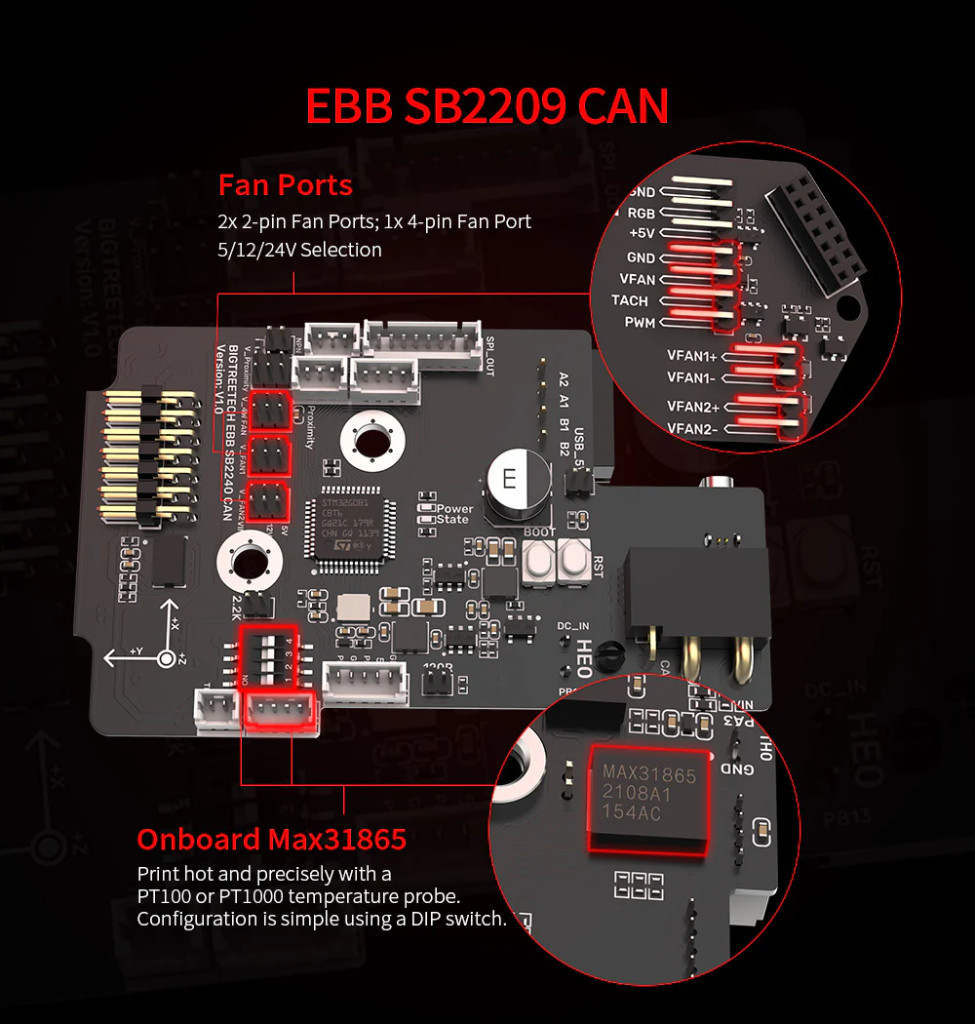

- Fan outputs: 2x PWM (FANO, FAN1), 1 x4 pin Fan Port
- Fan power: 1A continuous, 1.5A instant
- Temperature sensor: 1x 100K NTC(THO), 1x PT100/PT1000
- USB interface: USB-Type-C
- DCDC 5V power: 1A
- EndStop, ABL, RGB, PT100/PT1000, USB, CAN
github.com/bigtreetech/EBB/tree/master/EBB SB2209 CAN (RP2040)
