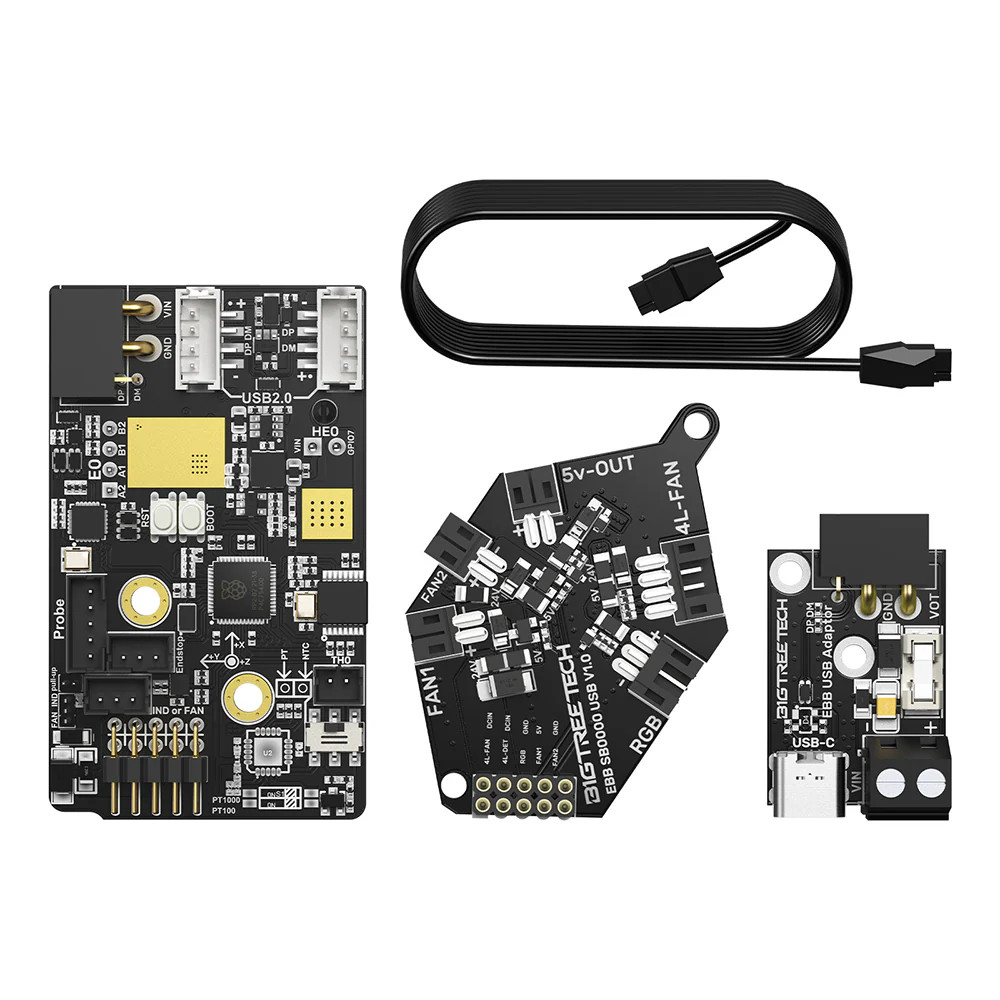

Bigtreetech, BTT USB Board designed for Voron StealthBurner. The package includes connectors and a 3 meter long cable.
This version uses PH2.0 connectors, making it easier to assemble.
- Motor driver: TMC2209, UART
- MCU: RP2040
- Input voltage: DC12V-DC24V 9A
- Logic voltage: DC 3.3V
- HotEnd heating: Heater Cartridge (EO), Max 6A
- Built-in sensor: LIS2DW
- Fan outputs: 2 x PWM (FANO, FAN1), 1 x 4 pin Fan Port
- Fan power: 1A continuous, 1.5A instant
- Temperature sensor: 1 x 100K NTC (2.2K pull-up resistor), PT1000
- USB interface: USB-Type-C
- DCDC 5V power: 1A

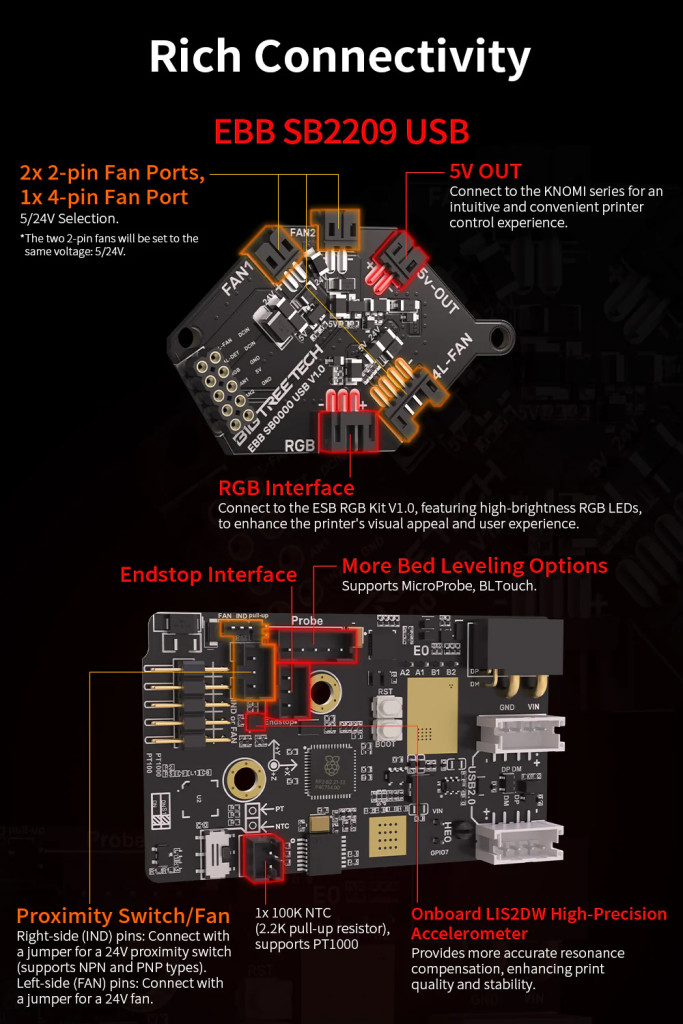

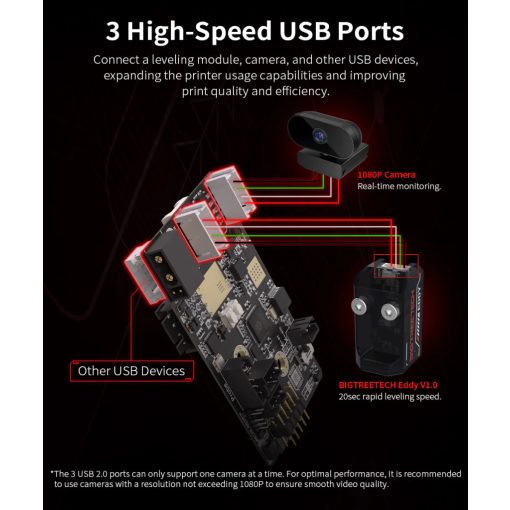

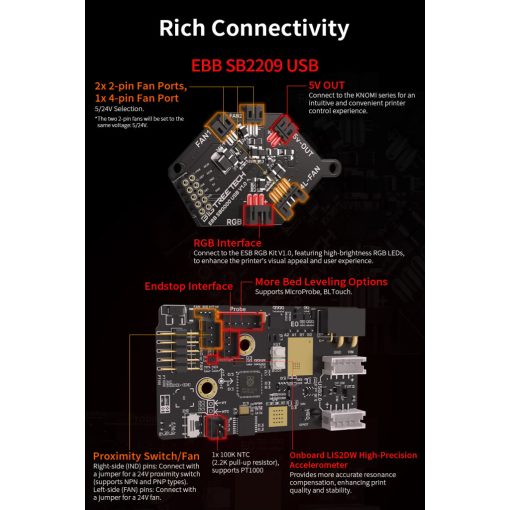

- Probe, RGB, 3 x USB 2.0, I2C, EndStop, 5V
