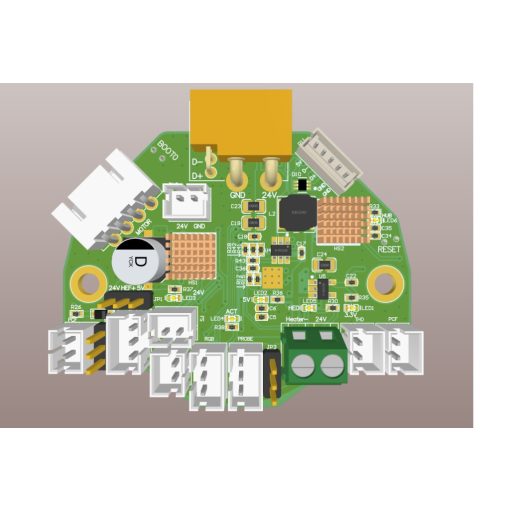

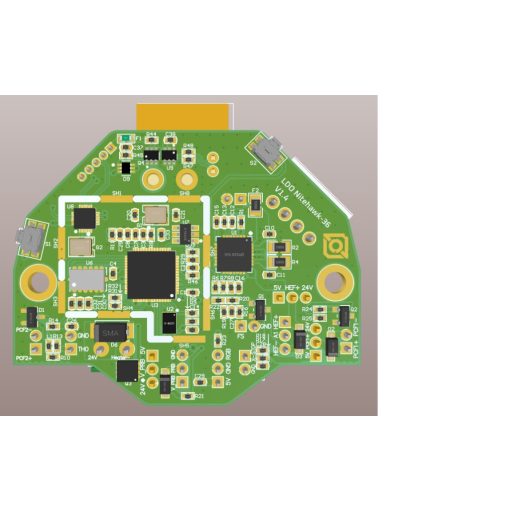

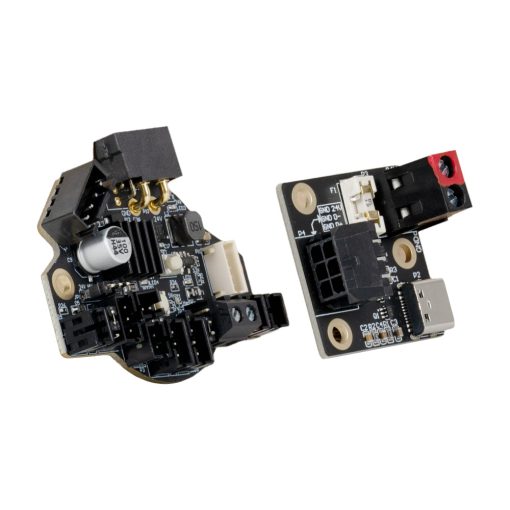

Nitehaw-36 is a toolhead PCB with a RP2040 MCU, TMC2209, Accelerometer all integrated into one board.
Improved Rev. C version!
Features:

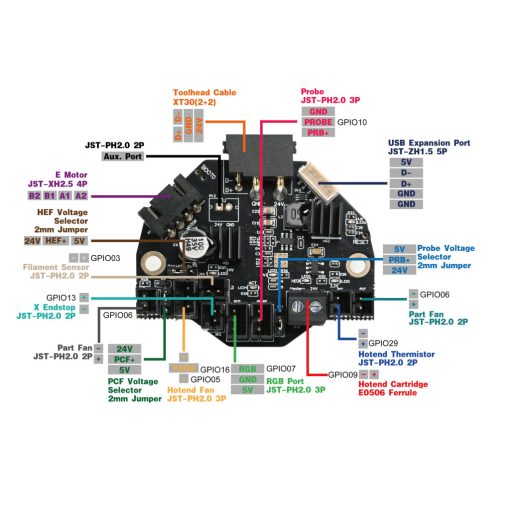

- Convenient wiring, no more complicated and error prone breakout cables - nitehawk only requires 24V power and a USB connector to the RPI host.
- USB Klipper connection, no additional software or hardware setup compared to CAN.
- Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable.

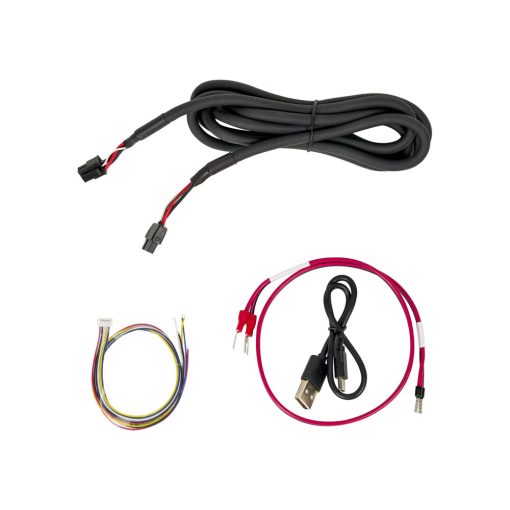

- Custom toolhead cable, a single combined USB data and power cable rated for drag chain use, but can also be used in umbilical configuration.
- Convenient Input Shaping, run input shaper calibration at anytime with an onboard accelerometer.
- Tacho enabled, the hotend fan port is three pin tachometer compatible, allowing for additional diagnostics and safety.
Detailed description on the LDO page:
