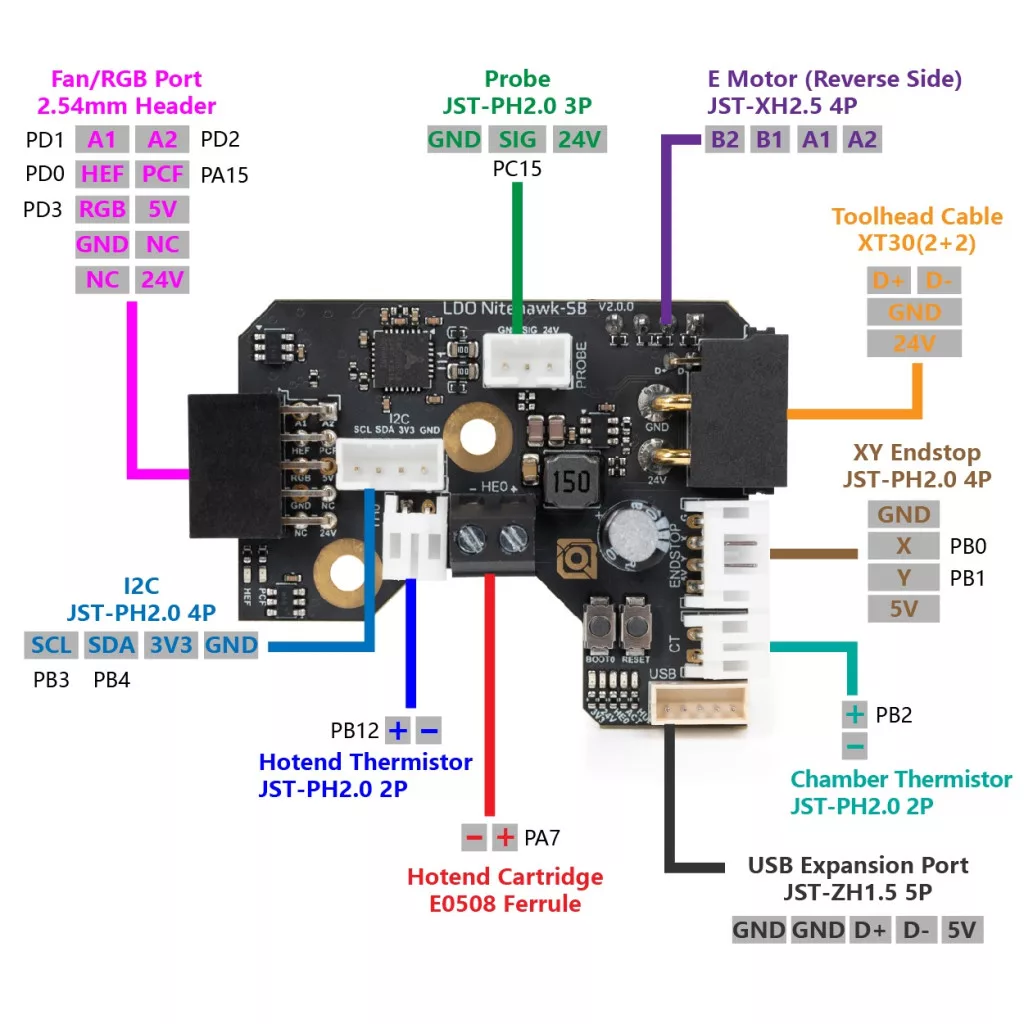

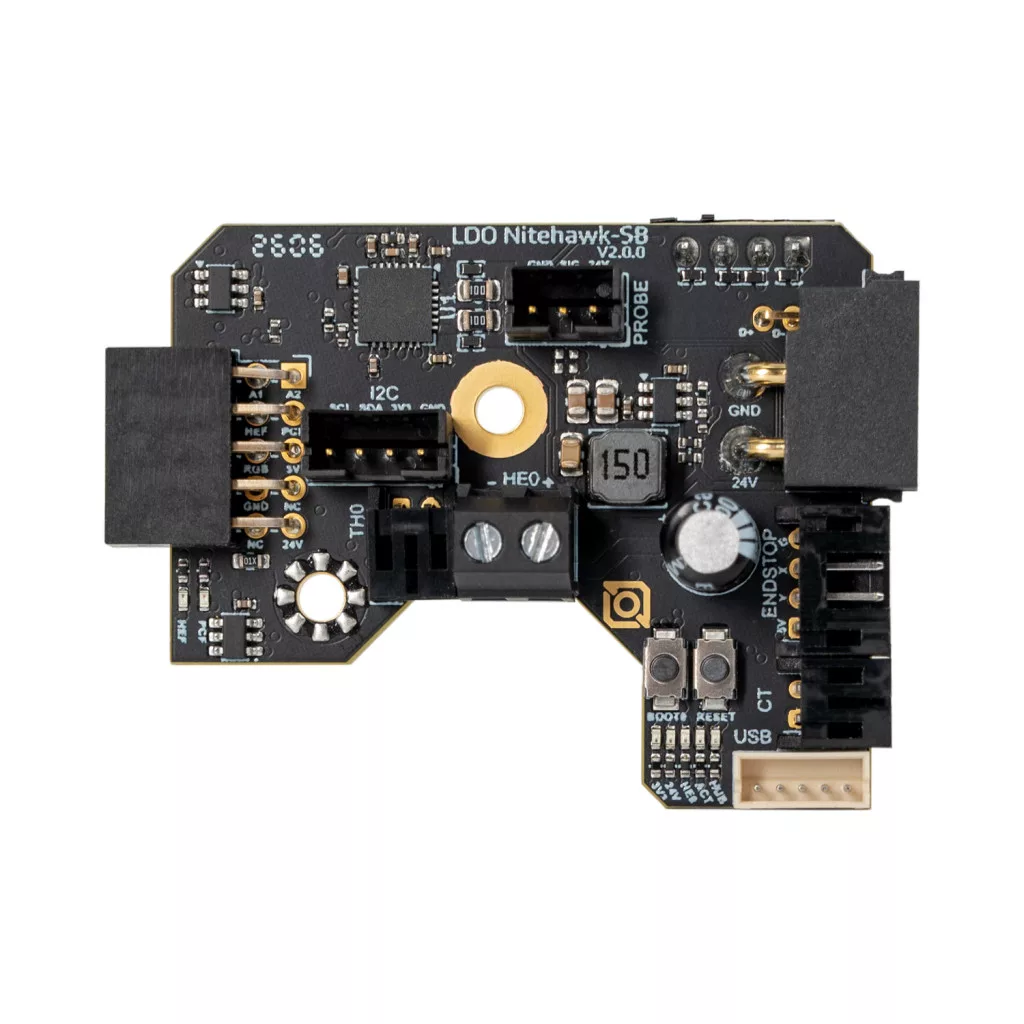

LDO Nitehawk SB is a toolhead PCB with an STM32G0B1 MCU, a TMC2209, and an accelerometer, all integrated into one board. The form factor is based on HartK’s two piece Stealthburner toolhead PCB but with some minor changes.
Nitehawk uses USB communication with the RPI rather than CAN. So the software and hardware setup is far simpler and familiar to most people who have setup Klipper printers before.
Features:
- Greatly simplified wiring, a single wire runs through the drag chain or in an umbilical setup. No additional breakout cables needed.
- USB Klipper connection, no additional hardware or software compared to CAN.
- Tachometer enabled fan ports (PCF and HEF), allowing for fan speed detection.
- Integrated accelerometer for convenient input-shaping.
- Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable.
Changes from the Nitehawk-SB v1:
- Onboard microcontroller changed from RP2040 to STM32G0B1.
- Added USB hub and secondary USB port as in Nitehawk-36.
- Added general purpose I2C port.

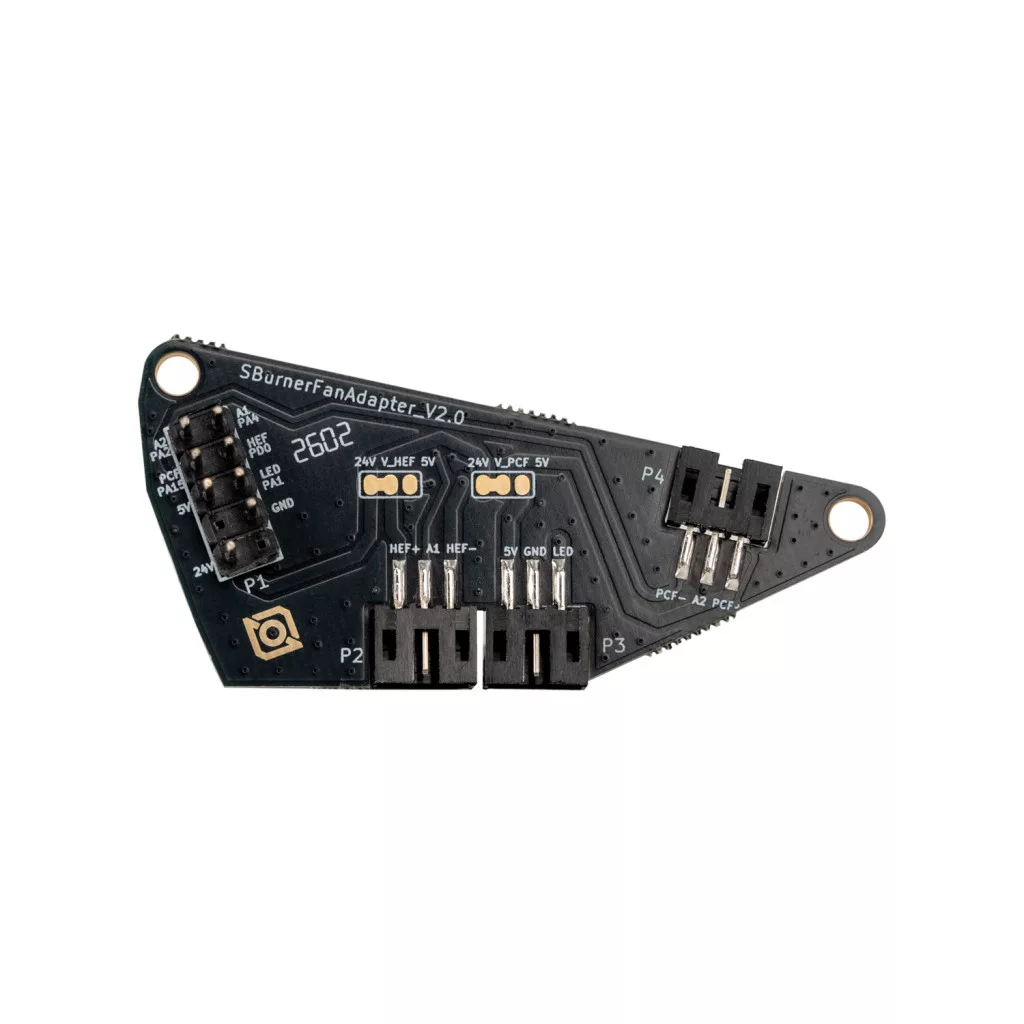

- Reversed connector gender between main toolboard and fan adapter. (Safer)
- Probe, TH0, XY Endstop ports changed from JST-XH2.5 to JST-PH2.0.
- Vastly Improved ESD performance.
Detailed description on the LDO page:
