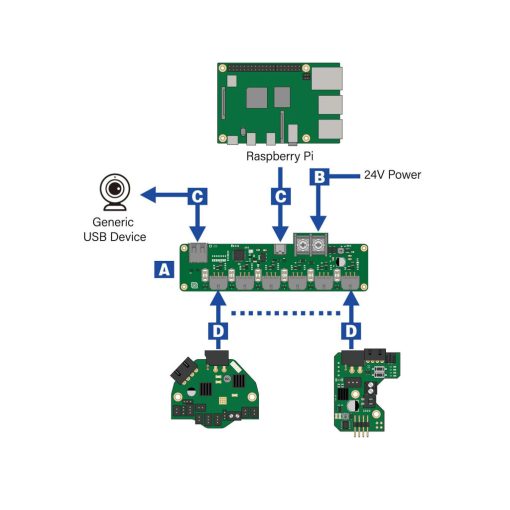

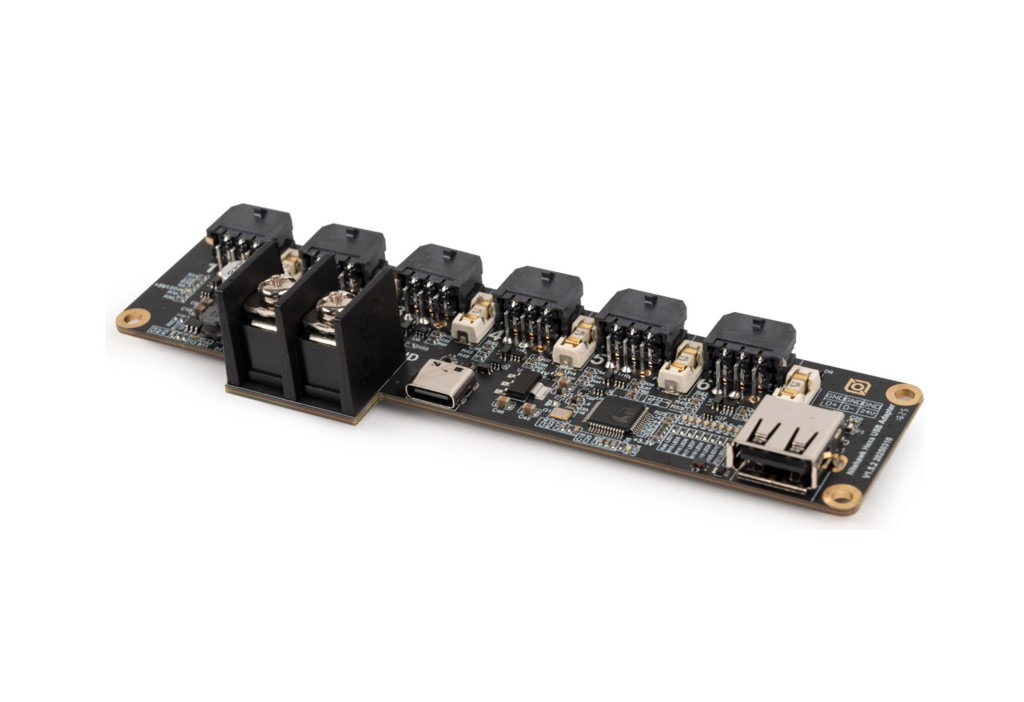

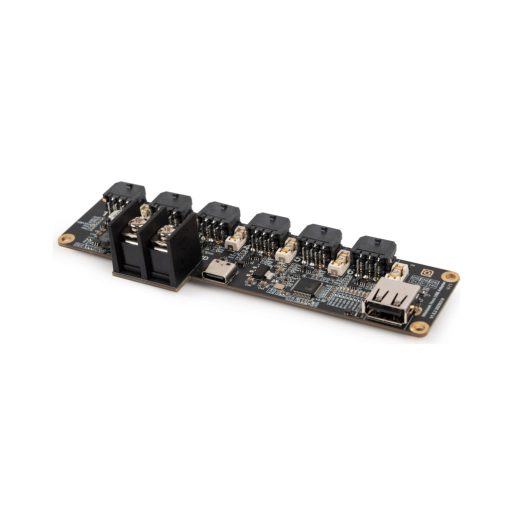

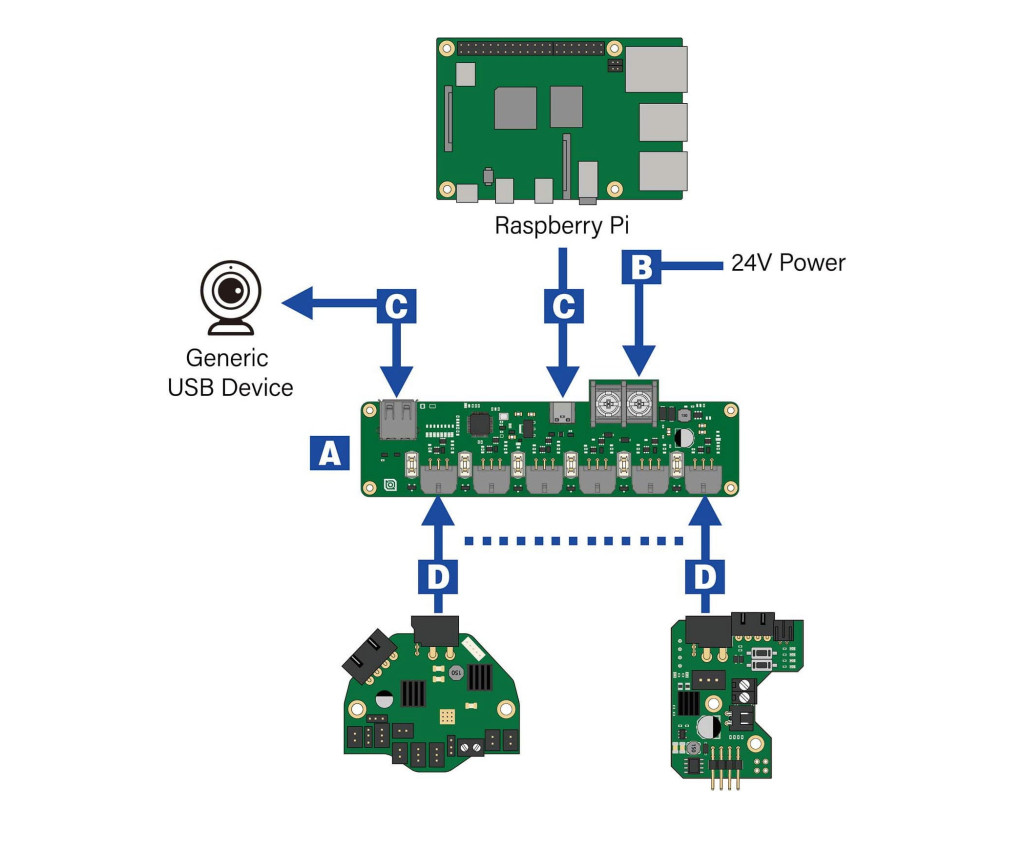

Nitehawk Hexa is a 6+1 port USB hub adapter purpose-built for USB-based toolboards. It integrates the capabilities of six Nitehawk USB adapters, a USB 2.0 hub, and a 24V power splitter into a single, compact PCB. Nitehawk Hexa is the ideal solution for multi-toolhead 3D printers such as toolchanger systems, offering a clean and reliable way to manage power and communication across multiple toolboards.
Features

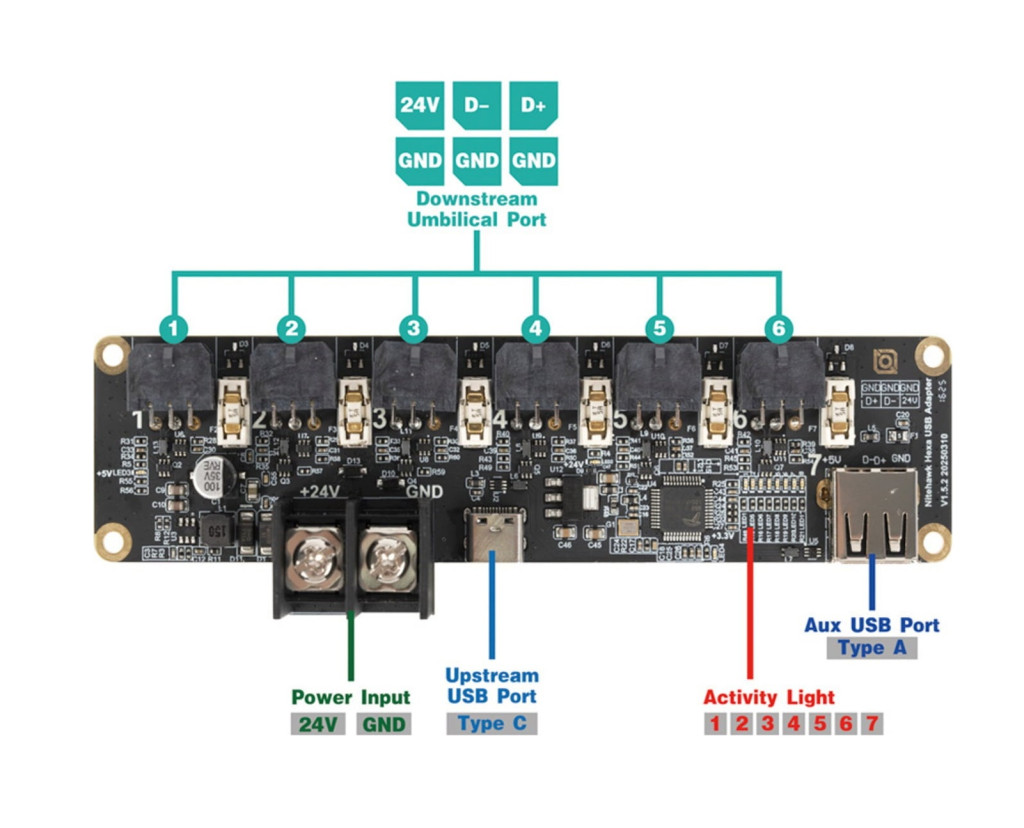

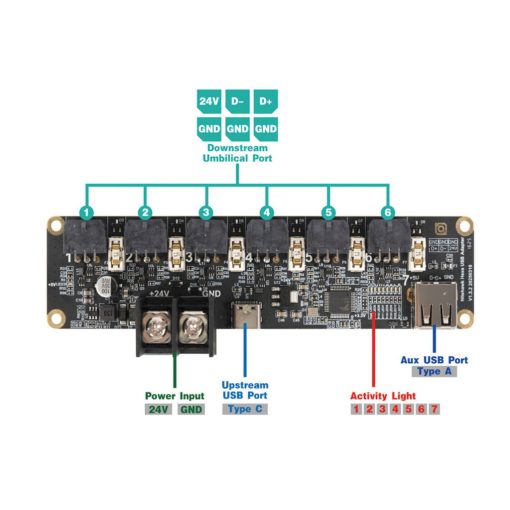

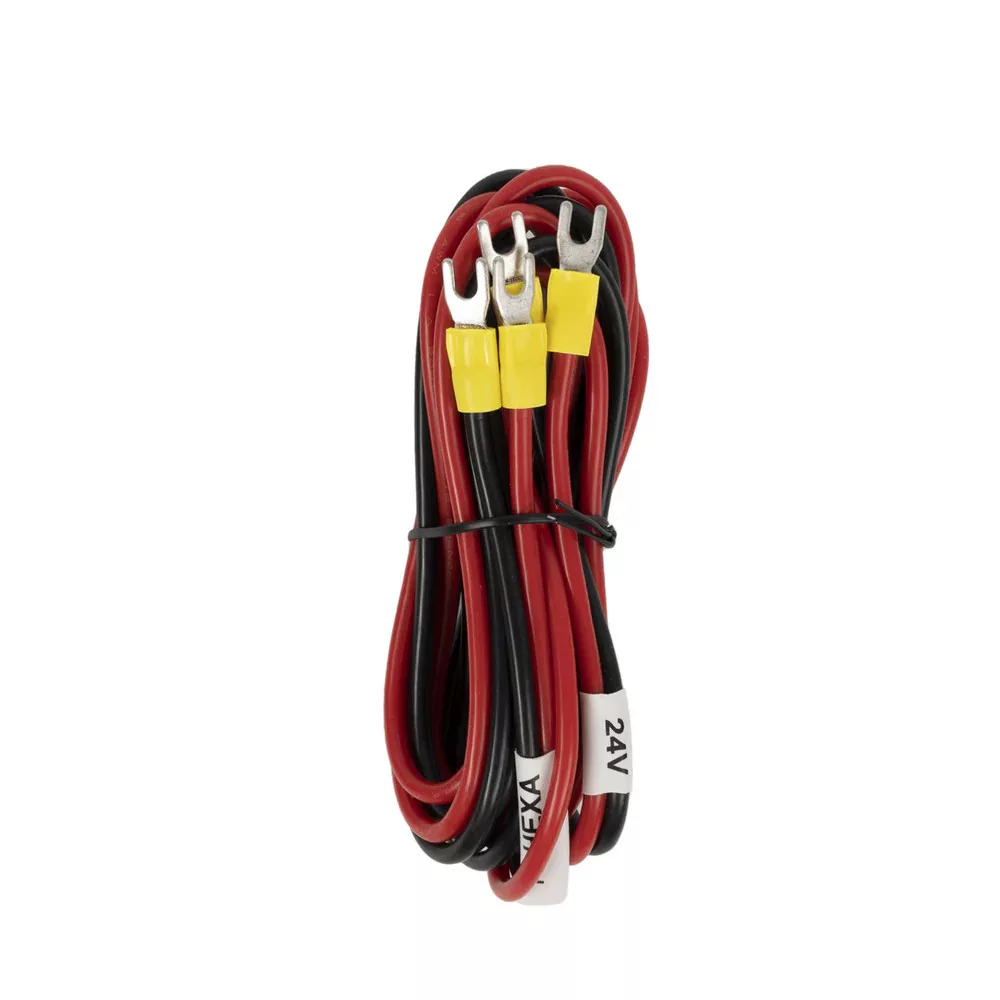

- Convenient wiring, use a single 24V power cable (included) and standard USB C cable upstream to handle power + traffic of up to 6 downstream toolboards.
- Plug and play, functions just like a normal USB hub — no additional software, drivers, or configuration required.
- Extra USB-A port, an extra USB A port downstream allows you to plug in any standard USB device (webcam, flash drive, Arduino etc.)
- 30A current rating, engineered for demanding setups with up to six heated toolheads. Features a high-current screw terminal rated for 30A and dedicated power/ground planes on the PCB to support heavy loads safely.
- Dedicated power protection, each downstream port includes its own data line protection and a replaceable fuse. The upstream USB-C input is protected by standard USB ESD protection circuitry.
Toolboard Compatibility
The following toolboards have full plug-and-play compatibility with Nitehawk Hexa and require no modifications or repinning of the umbilical cable to work.
In theory, Hexa will work with any Klipper toolboards using USB communications. However, It is up to the user to make sure the pinout of the umbilical cable matches that of the Hexa. Always double check your pinout and wiring before first powering your devices!
Documentation:
docs.ldomotors.com/en/Toolboard/Nitehawk-Hexa
